Step 2 Install the AC power cord into the power socket on the power supply.
Step 3 If used, reapply the strain relief strap around the power cord and the power supply latch.
Step 4 If the device was turned off, turn the power back on to the device.
DC Power Supplies
The C8300-1N1S-4T2X|6T devices have one DC power supply type. The C8300 2N2S-4T2X|6T devices also
have one DC power supply type. As with the AC power supplies, the DC power supplies are not of the same
size and cannot be interchanged.
Overview of the DC Power Supplies
The DC power supply for C8300-1N1S-4T2X|6T devices is shown in the figure below:
• PWR-CC1-400WDC
• PWR-CC1-400WHV

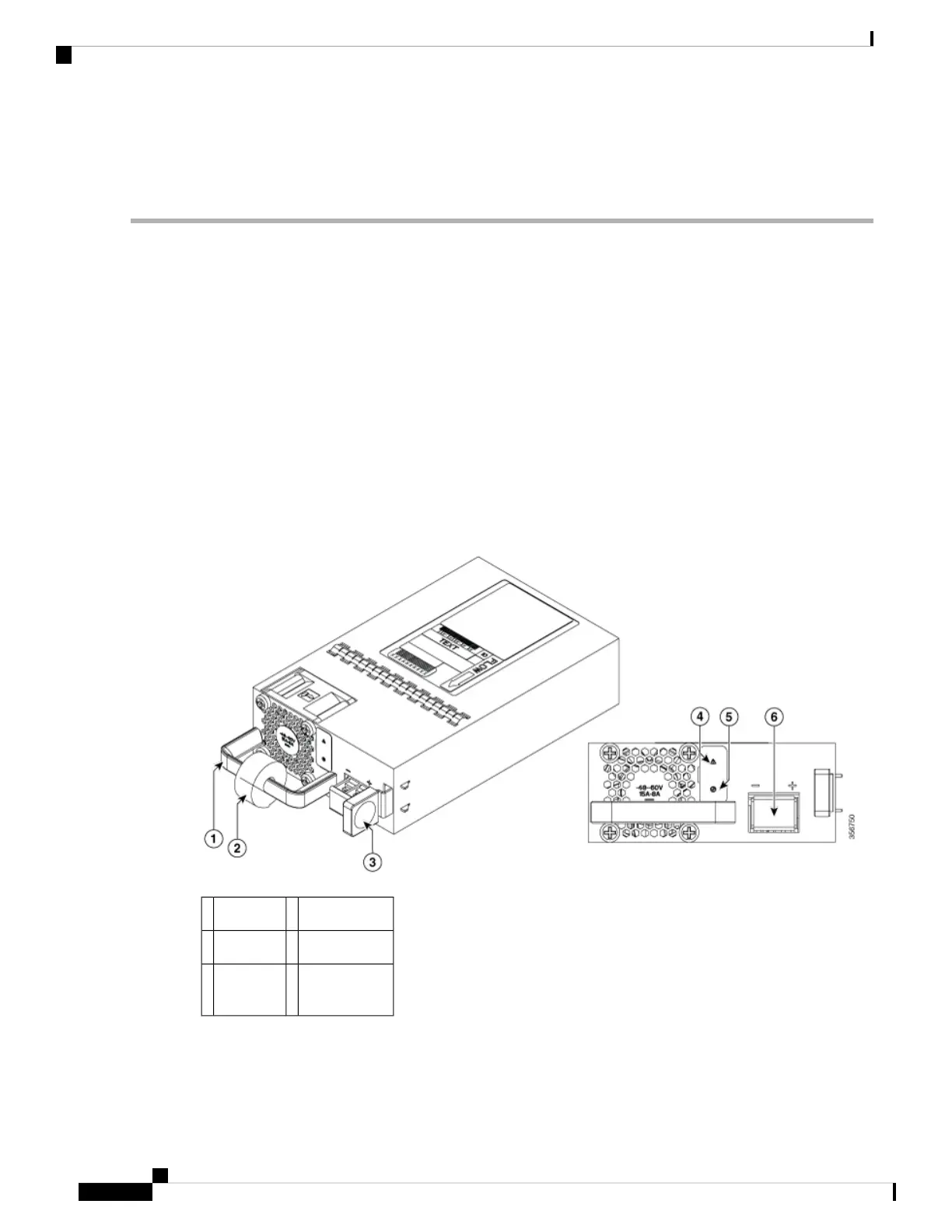

Figure 50: 400WDC Power Supply for C8300-1N1S-4T2X|6T
Strain relief2Handle1
Fail LED4Latch3
Terminal
block
6Status
LED
5
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
72
Install Internal Components and Field Replaceable Units
DC Power Supplies
