Cisco Catalyst 8300 Series

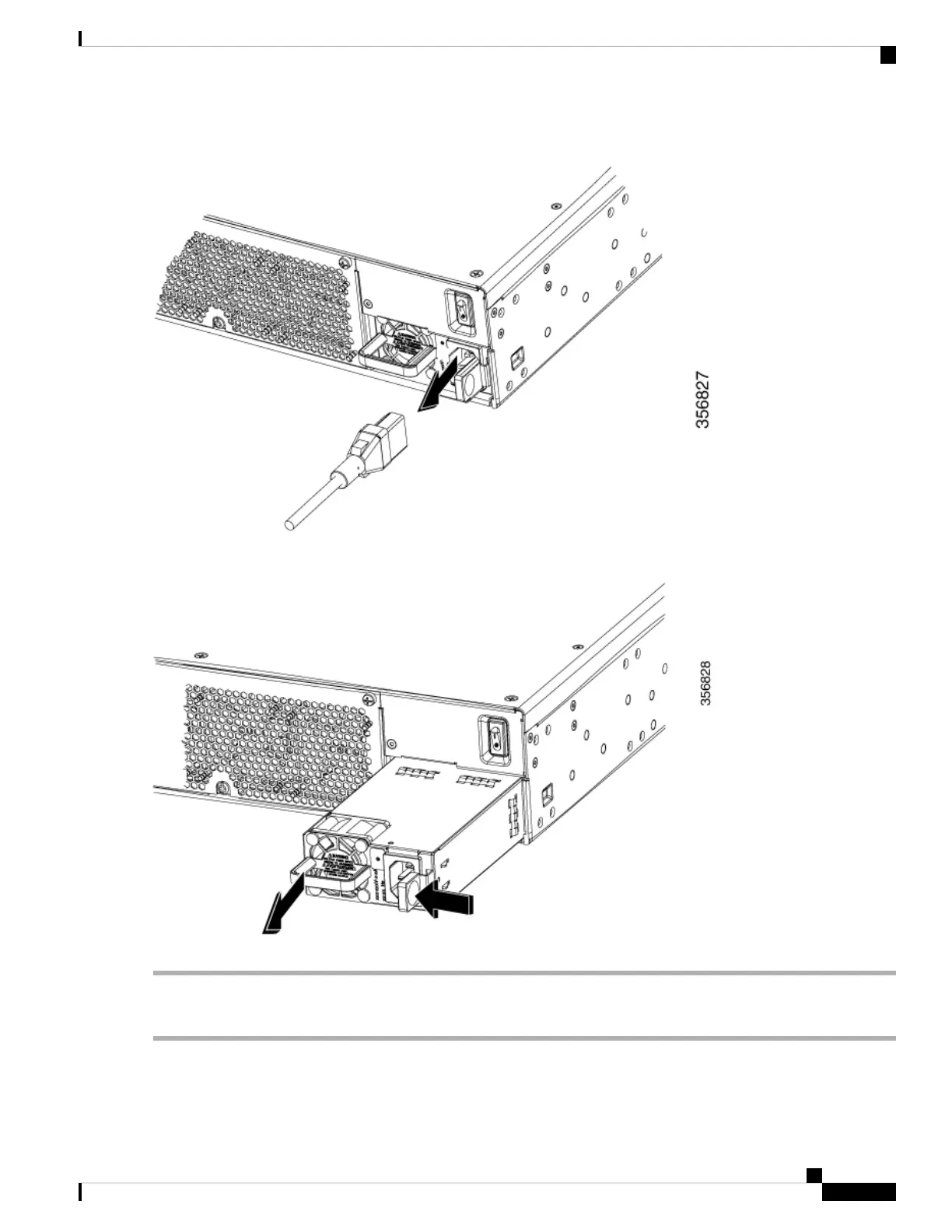

Figure 48: Step 5
Figure 49: Step 6
To replace or install an AC power supply into a C8300-2N2S-4T2X|6T device, perform these steps:
Step 1 Use the handle to push the power supply into the device. The power supply latch should provide an audible click when
the supply is fully seated.
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
71
Install Internal Components and Field Replaceable Units
