To access the internal components on the device, you must first remove the chassis cover. For instructions
on how to remove and replace the chassis cover on the device, see the sections on Install and Remove Chassis
Covers.

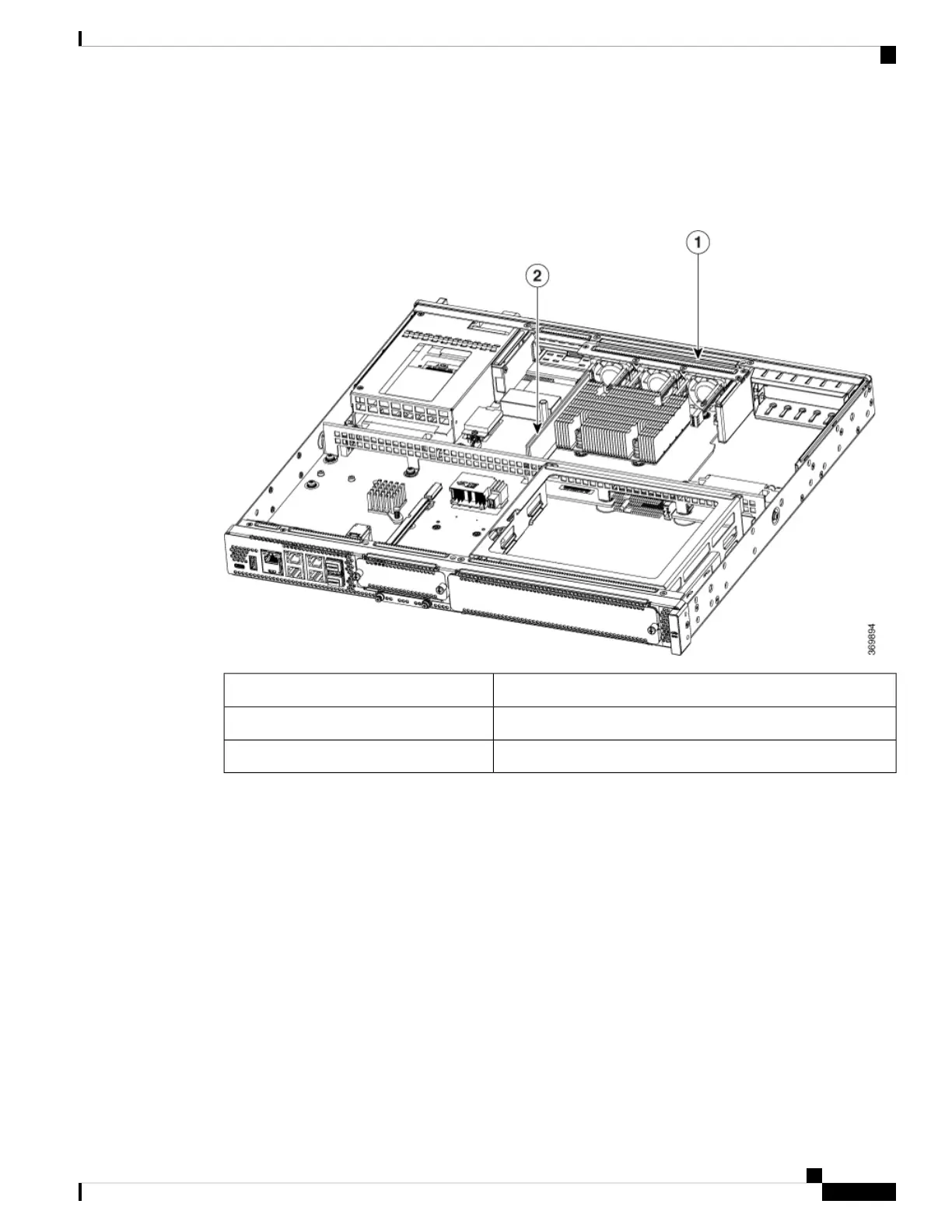

Figure 32: Internal Component Locations in the C8300-1N1S-4T2X|6T
ModulesSl. No
Fan tray1
DIMM2
