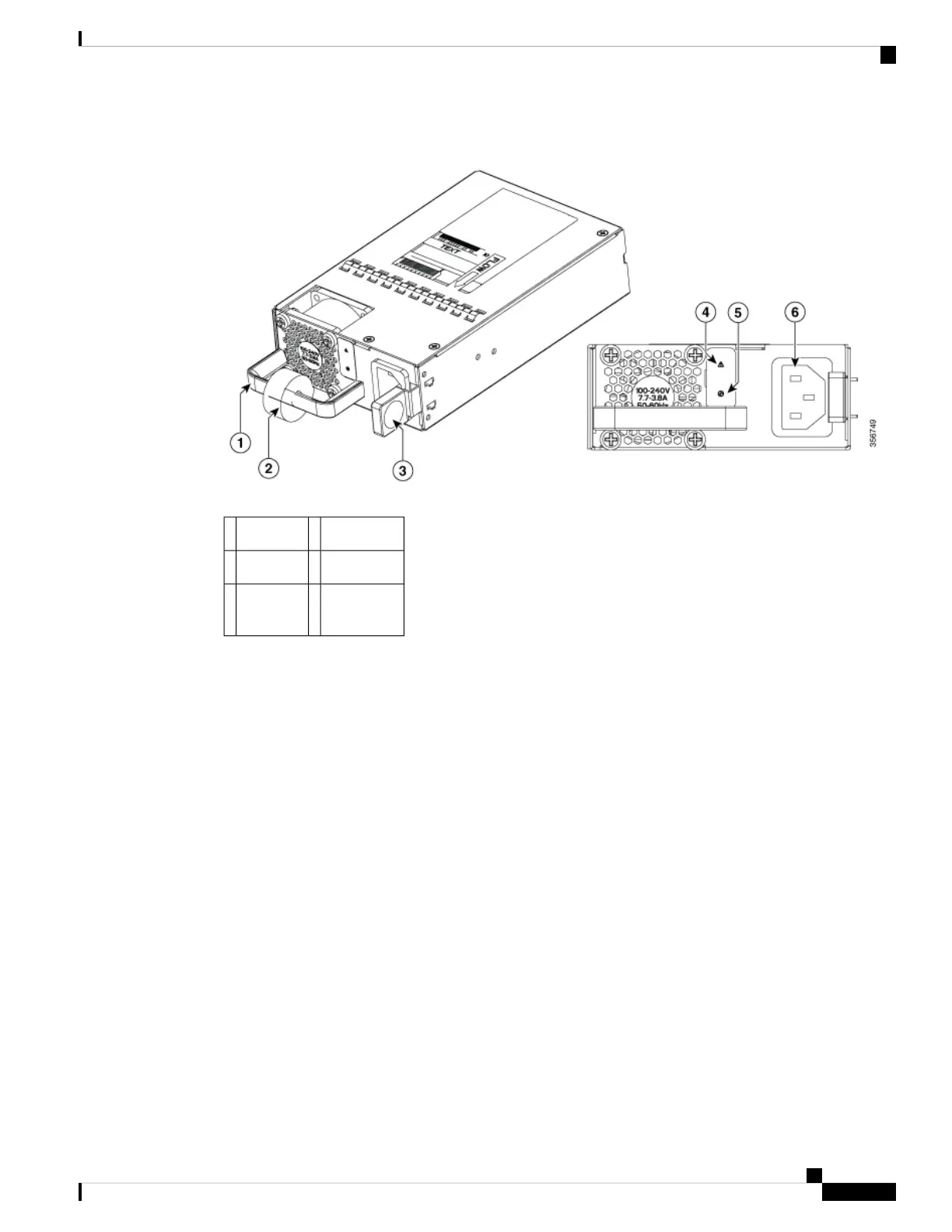

Figure 41: 250W/500W AC Power Supply for C8300-1N1S-4T2X|6T
Strain relief2Handle1
Fail LED4Latch3
Power
socket
6Status
LED
5
The AC power supplies for C8300-2N2S-4T2X|6T devices are as follows. The two supplies are physically
similar and a diagram is shown in the figure below.
• PWR-CC1-650WAC
• PWR-CC1-1000WAC
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
65
Install Internal Components and Field Replaceable Units
Overview of the AC Power Supply
