Cisco Catalyst 8300 Series

Step 5 Remove the terminal block cover and loosen the terminal screws (label 1) securing the power cabling. Remove the power
cabling from the terminal block.
Step 6 Depress the power supply latch and use the handle to pull the supply out of the device.

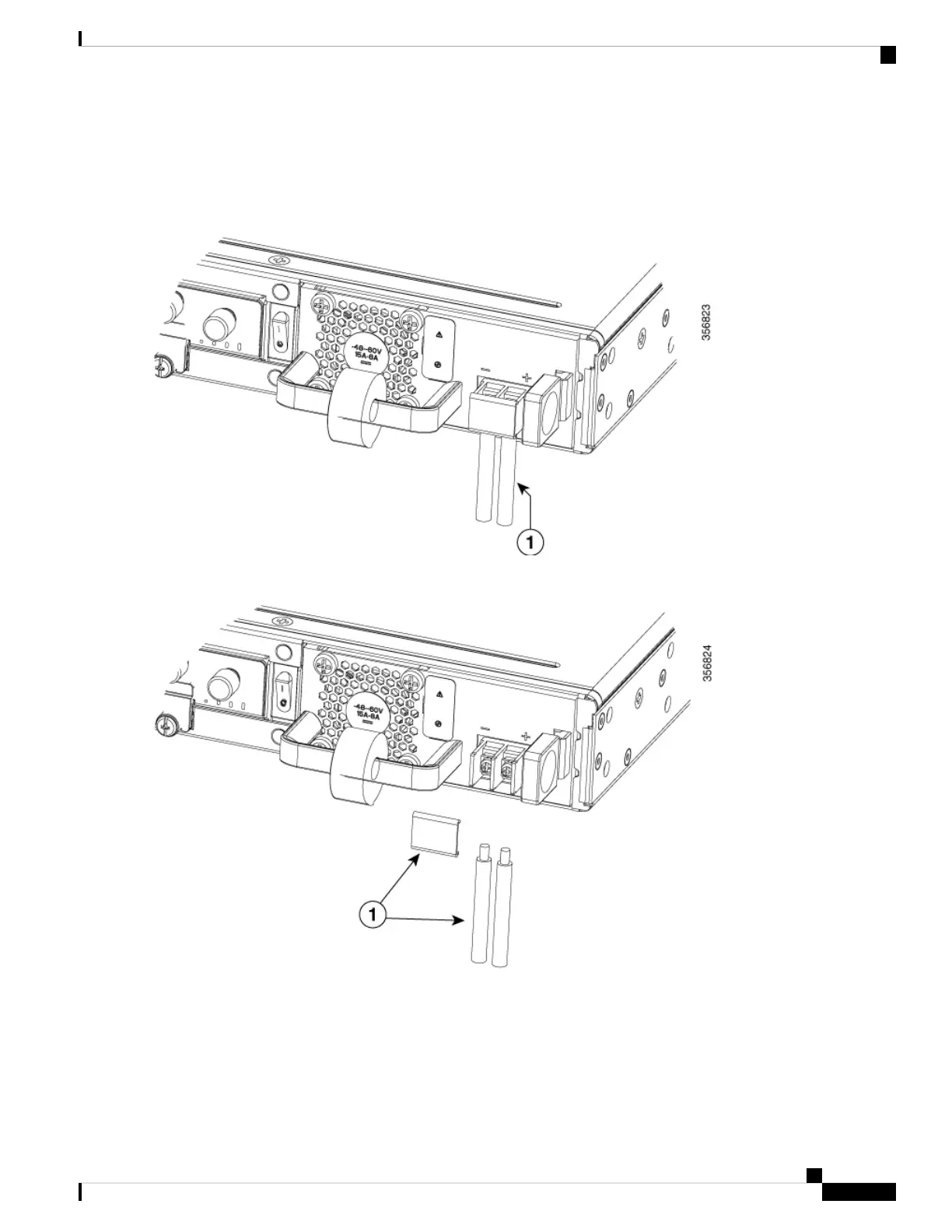

Figure 53: Remove a DC Power Supply from the C8300-1N1S-4T2X|6T
Figure 54: Step 5
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
75
Install Internal Components and Field Replaceable Units
Remove and Replace the DC Power Supply (C8300-1N1S-4T2X|6T)
