Chapter 3 Installing and Configuring Cisco Secure ACS Solution Engine 4.1
Installing the Cisco 1113 in a Rack

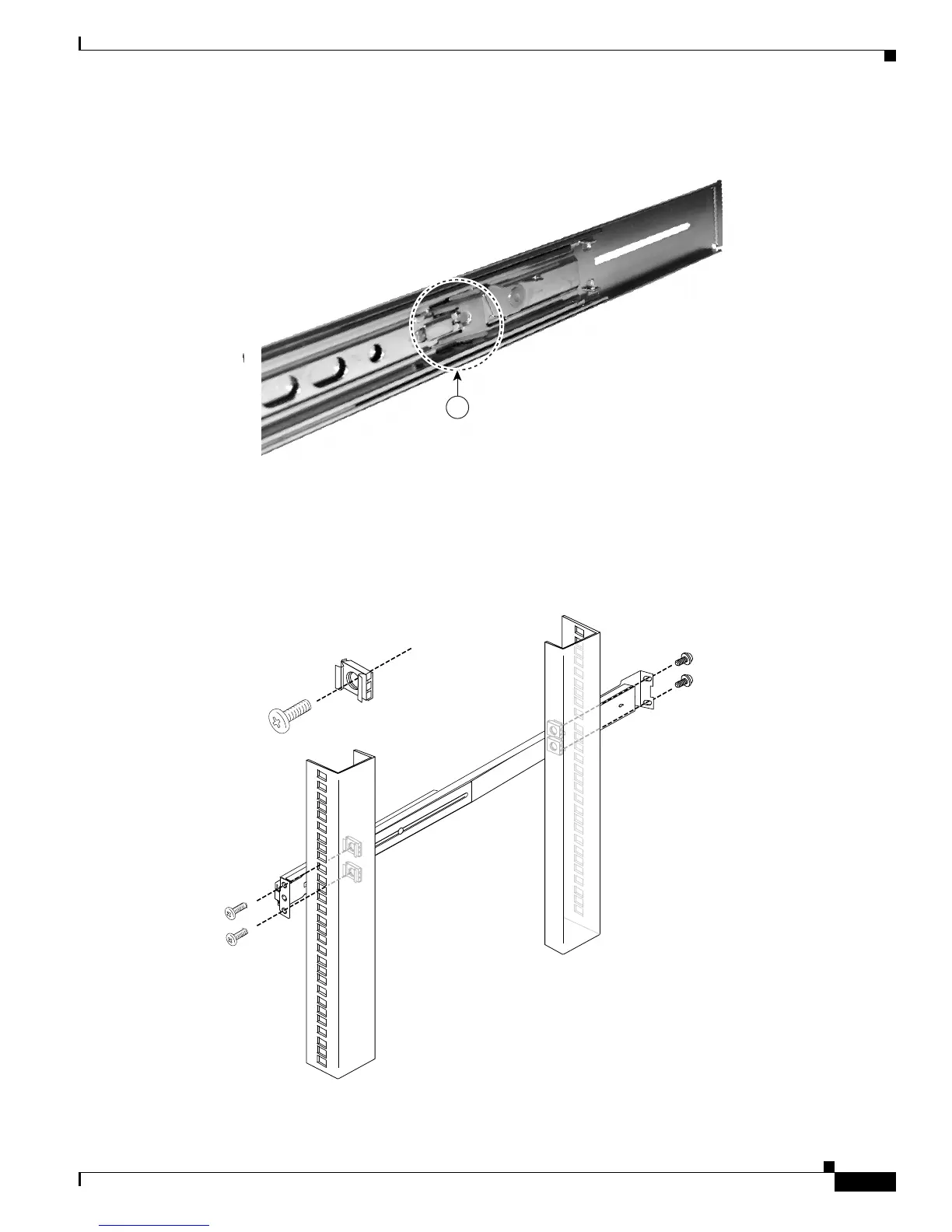

Figure 3-7 Retracting the Server Rail
Step 2 Attach the server rail to the rack as shown in the figure that corresponds to your rack:
–
For a square-peg rack, see Figure 3-8.
–
For a circular-peg rack, see Figure 3-9.
Figure 3-8 Attaching Rail to a Square-Peg Rack
