1-7
Installation Guide for Cisco Secure ACS Solution Engine 4.1
OL-9969-03
Chapter 1 Cisco Secure ACS Solution Engine Overview
ACS SE Hardware Description

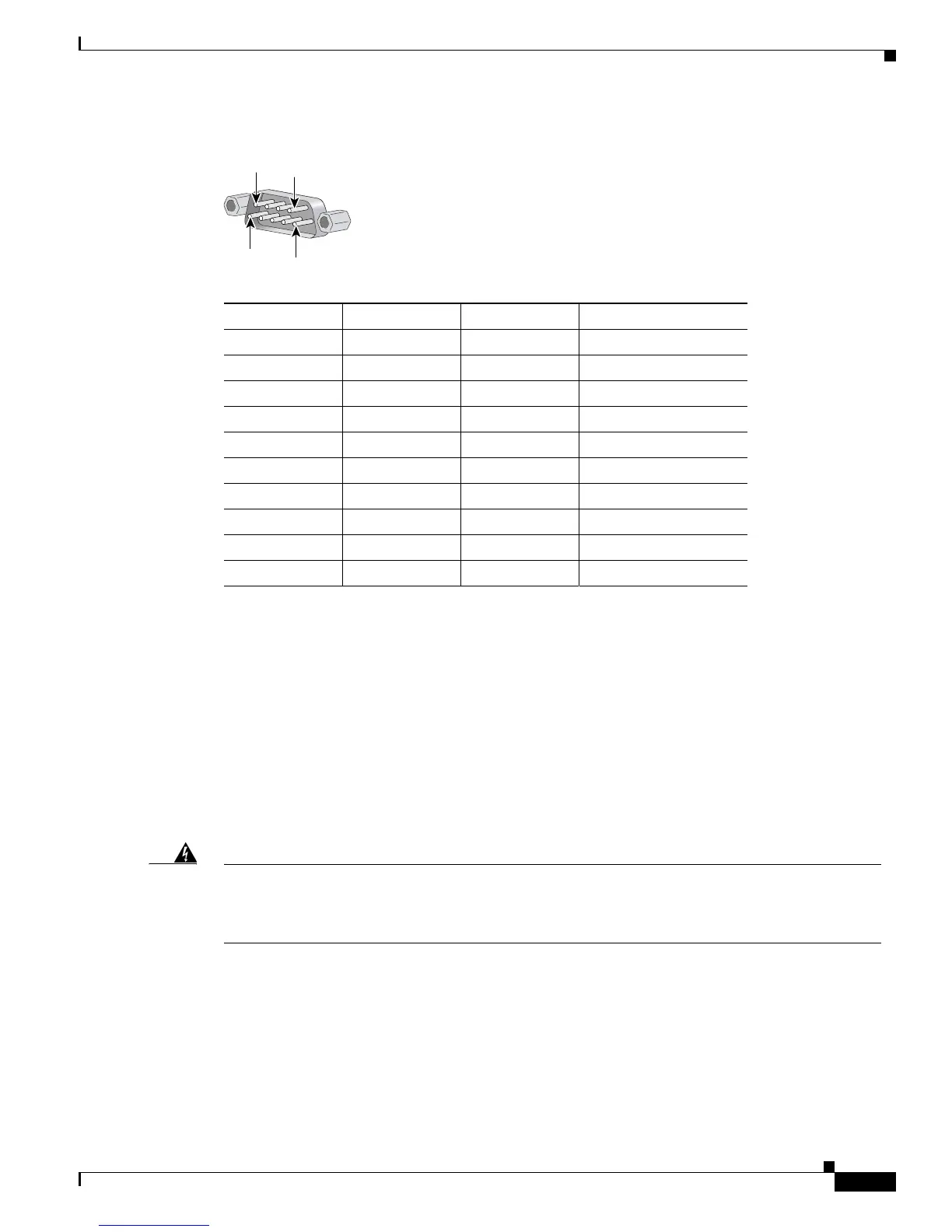

Figure 1-4 Pin Numbers for the Serial Port Connector
Ethernet Connectors
Your Cisco 1113 system has two integrated 10/100/1000-megabit-per-second (Mbps) Ethernet
connectors. ACS SE supports the operation of either Ethernet connector, but not both connectors. Each
Ethernet connector provides all the functions of a network expansion card and supports the 10BASE-T,
100BASE-TX, and 1000BASE-TX Ethernet standards.
Each NIC is configured to automatically detect the speed and duplex mode of the network.
Network Cable Requirements
Pin Signal I/O Definition
1 DCD I Data carrier detect
2 SIN I Serial input
3 SOUT O Serial output
4 DTR O Data terminal ready
5 GND N/A Signal ground
6 DSR I Data set ready
7 RTS O Request to send
8 CTS I Clear to send
9 RI I Ring indicator
Shell N/A N/A Chassis ground
Serial
port
1
5
6
9
78229
Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to
telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain
TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting
cables.
