Installation Guide for Cisco Secure ACS Solution Engine 4.1
OL-9969-03
Chapter 3 Installing and Configuring Cisco Secure ACS Solution Engine 4.1
Installing the Cisco 1113 in a Rack

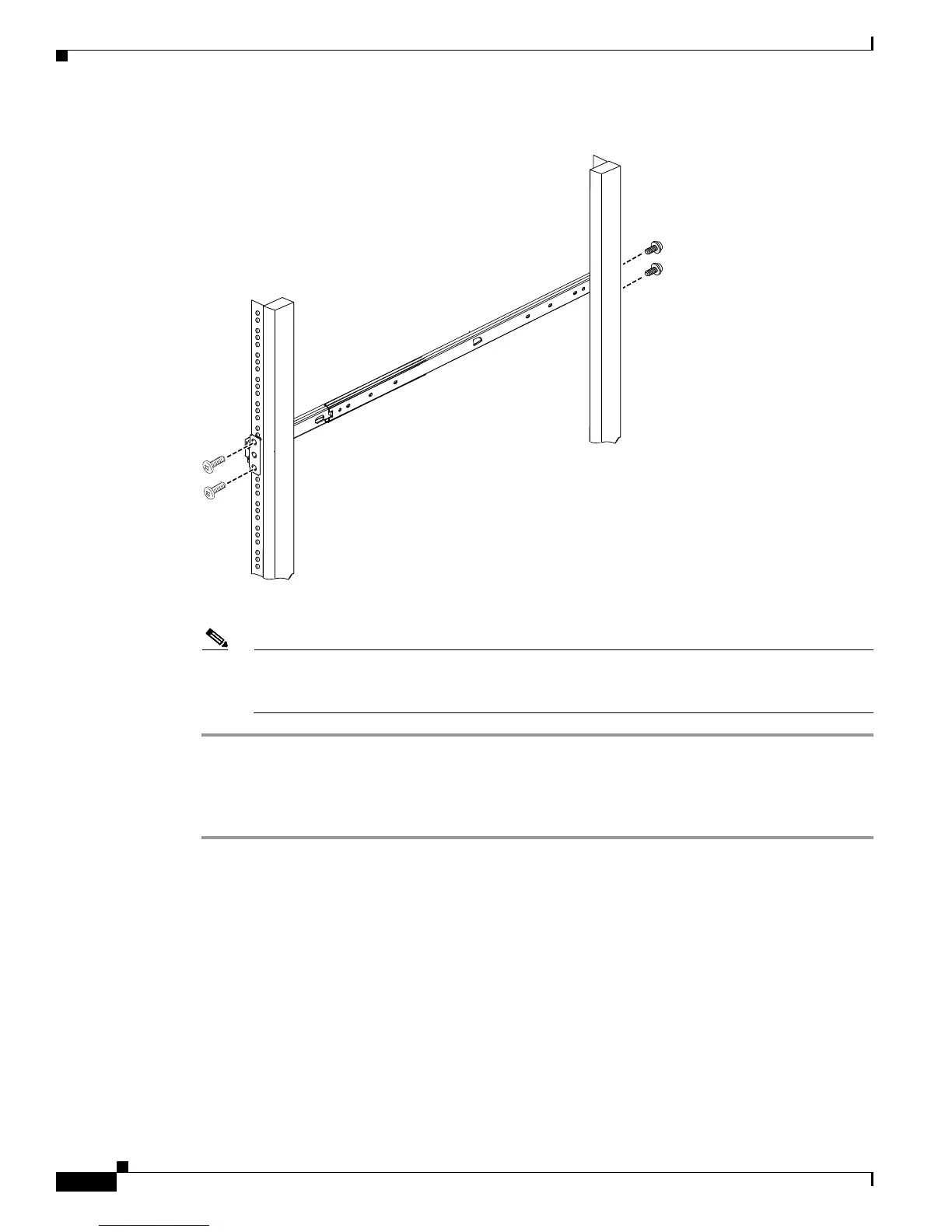

Figure 3-9 Attaching Rail to a Circular-Peg Rack
Step 3 Repeat this process with the other rail and rack assembly.
Note Leaving some play between the bracket and the rail until you install the rail into the rack will
make affixing the rail to the rack easier. After the rail is attached to the rack, you can tighten the
screws.
Sliding Chassis On the Rack
Step 1 See Figure 3-10. On the chassis rail mount, slide and hold the purple tab in the direction of the arrow.
This allows the chassis rail mount to slide on to the rail.
