Cisco CSS5 SSL K9 - Syst. CSS11500 SSL MODULE - Figure B-1 Four Twisted-Pair Straight-Through Cable Schematic for the CSS 1000 BASE-T GBIC; Figure B-2 Four Twisted-Pair Crossover Cable Schematic for the CSS 1000 BASE-T GBIC Module

B-9
Cisco 11500 Series Content Services Switch Hardware Installation Guide
78-16421-01
Appendix B Cable Connector Pinouts
RJ-45 1000BASE-T GBIC Connector Pinouts

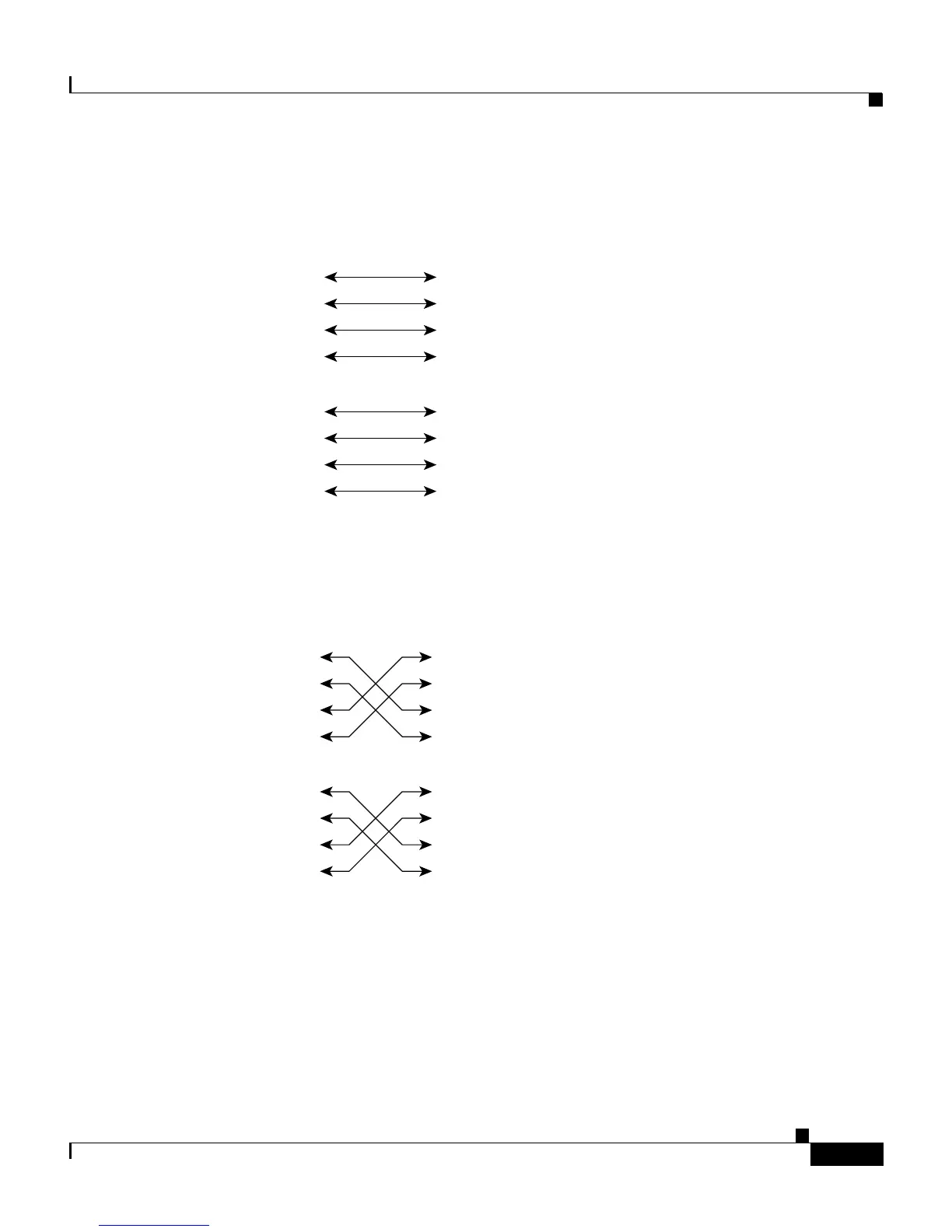

Figure B-1 Four Twisted-Pair Straight-Through Cable Schematic for the CSS
1000BASE-T GBIC Module Port
Figure B-2 Four Twisted-Pair Crossover Cable Schematic for the CSS
1000BASE-T GBIC Module Port
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP1+
CSS Server or Router
2 TP1-
3 TPO+
6 TPO-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP3+
5 TP3-
7 TP2+
8 TP2-
119598
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP0+
CSS Switch
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
119599
