Cisco CSS5 SSL K9 - Syst. CSS11500 SSL MODULE - Figure 2-5 8-Port Fast Ethernet Module Connectors and Leds; Fast Ethernet Module Connectors and Leds

2-15
Cisco 11500 Series Content Services Switch Hardware Installation Guide
78-16421-01
Chapter 2 Cabling and Troubleshooting the CSS
Cabling the CSS 11503 and CSS 11506 Modules
Fast Ethernet Module Connectors and LEDs
The FEM is available in two models:
• Model CSS5-IOM-8FE contains 8 auto-sensing RJ-45 Fast Ethernet
10/100-Mbps 10BASE-T/100BASE-TX connectors.
• Model CSS5-IOM-16FE contains 16 auto-sensing RJ-45 Fast Ethernet
10/100-Mbps 10BASE-T/100BASE-TX connectors.
Each connector has Link and Duplex LEDs. The LEDs indicate the module and
network status. Figure 2-5 illustrates the LEDs and connectors on the 8-port FEM.

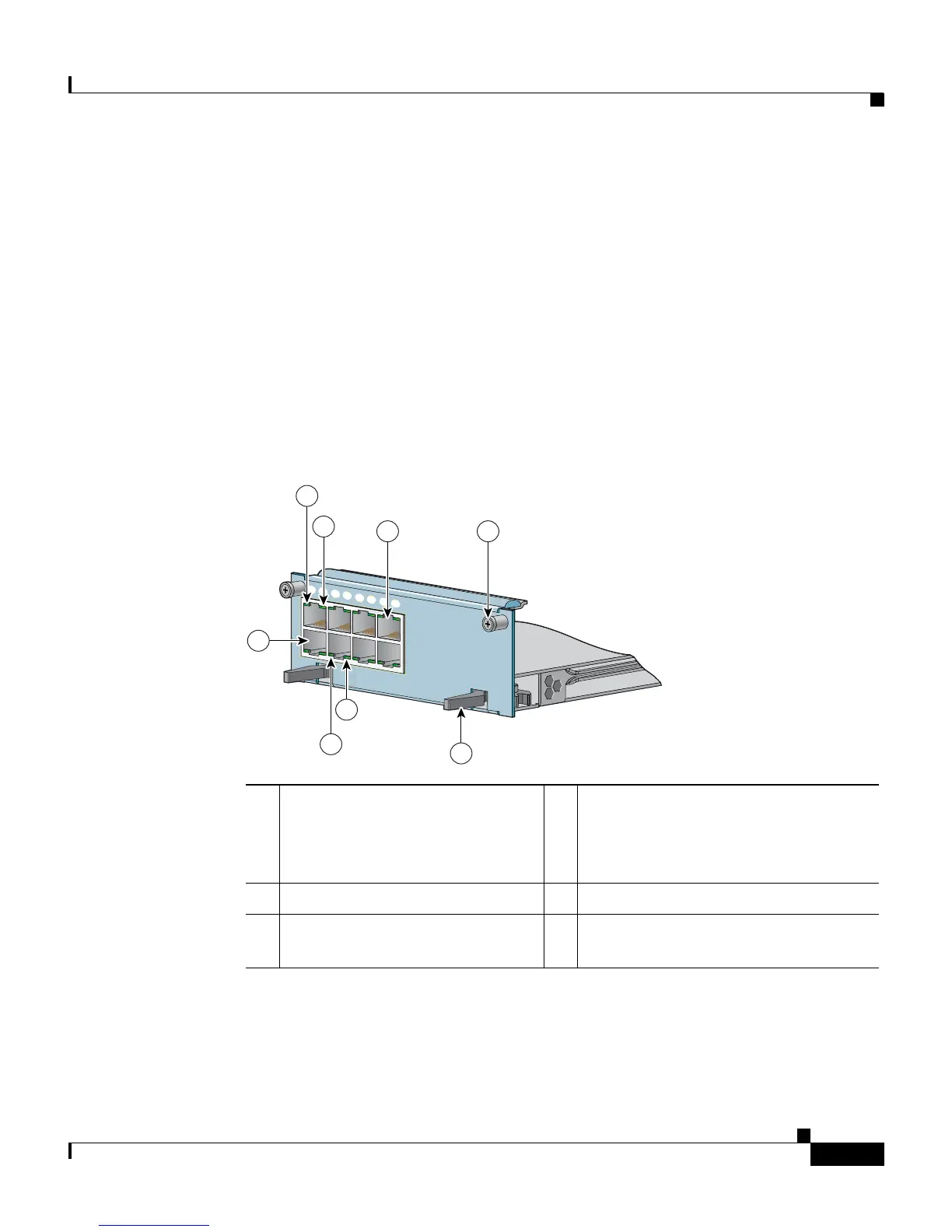

Figure 2-5 8-Port Fast Ethernet Module Connectors and LEDs
1 RJ-45 Ethernet
10BASE-T/100BASE-TX
connector 1 (connector 2 is
shown directly above it)
4 RJ-45 Ethernet
10BASE-T/100BASE-TX connector
8 (connector 7 is shown directly
below it)
2 Link LED (on each connector) 5 Spring-loaded screw (one of two)
3 Duplex LED (on each
connector)
6 Ejector (one of two)
1
2
4
5
8
7
6
3
CSS5-10M
-8FE
DPLX
8 Fast Ethernet
DPLX
LINK
LINK
59534
1
2
3
3
2
4 5
6
