2-35
Cisco 11500 Series Content Services Switch Hardware Installation Guide
78-16421-01
Chapter 2 Cabling and Troubleshooting the CSS
Connecting the Power Cord
Warning
This unit might have more than one power supply connection; all connections
must be removed completely for you to completely remove power from the unit.
To connect each CSS 11506 DC power supply to a power source:
1. On the power supply, ensure that the CSS power switch is in the O (off)
position.
2. Locate the power supply DC terminal block, as shown in Figure 2-15.

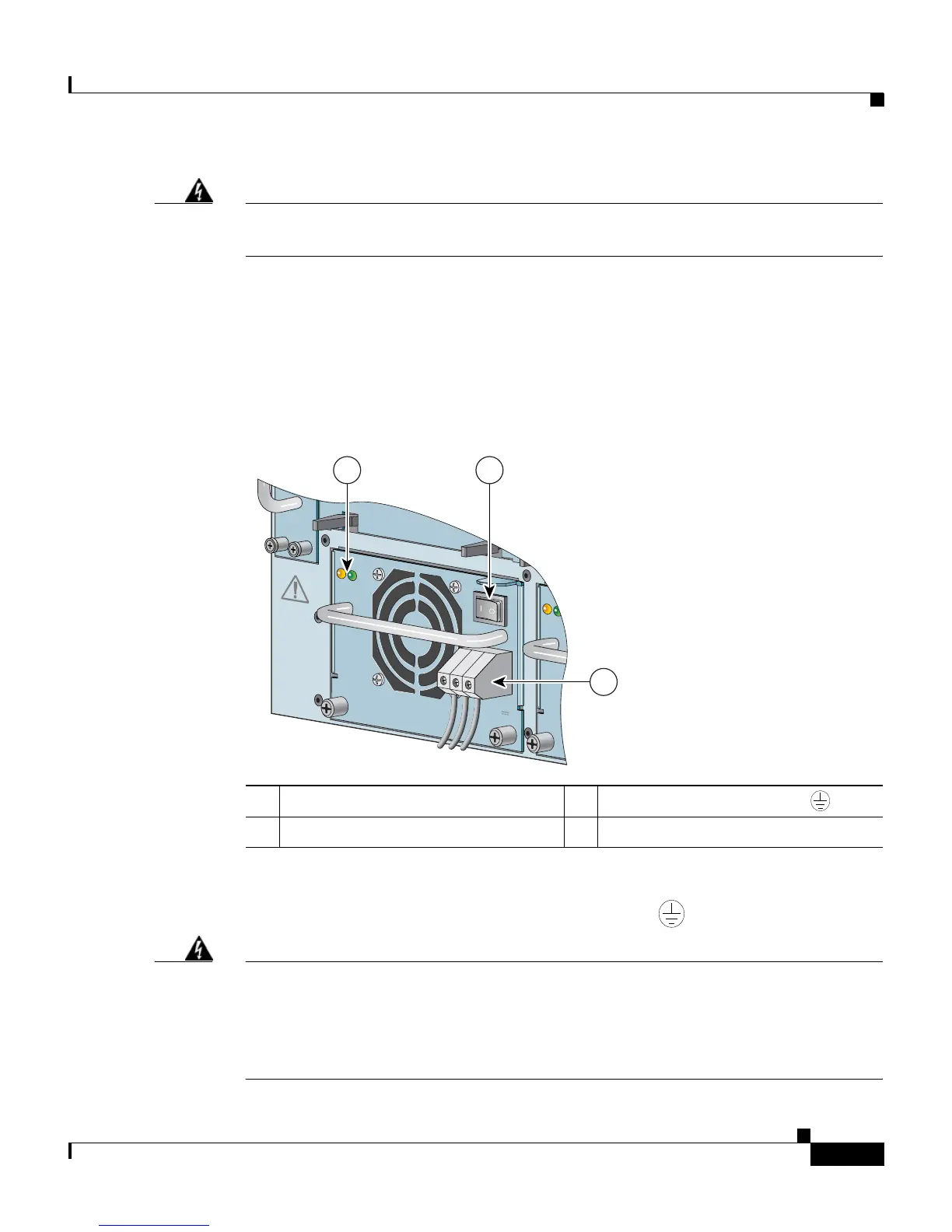

Figure 2-15 Location of CSS 11506 DC Power Supply Connectors
3.
Using a flat-head screwdriver, loosen the captive screws on the three DC
connectors (labeled from left to right, –, +, and , respectively).
Warning
Before installing a wire, ensure that the polarity of the DC connections is
correct. Reversed polarity can cause damage to the DC power supply and can
create a dangerous shock hazard.
Do not consolidate the end of a conductor by soft soldering prior to installation.
1 Power supply LEDs 3 Terminal block (–, +, and )
2 Power switch
CSS5-10M-2GE
Gigabit Ethernet
GE 1
GE 2
LINK
LINK
1
2
3
CSS5-10M-16FE
1
2
3
4
5
6
PS1
PS2
PS3
7
D
ISCO
NN
ECT A
LL
PO
W
ER
S
OU
RCES
BEFO
RE SERVIC
IN
G
CAUTION
8
100-240V
~
5A 50-60 Hz
AC
OK
DC
OK
-48/-60V
10/8A
I/P
OK
DC
OK
AC
OK
DC
OK
59546
3
1 2
