Chapter 2 Cabling and Troubleshooting the CSS
Cabling the CSS 11503 and CSS 11506 Modules

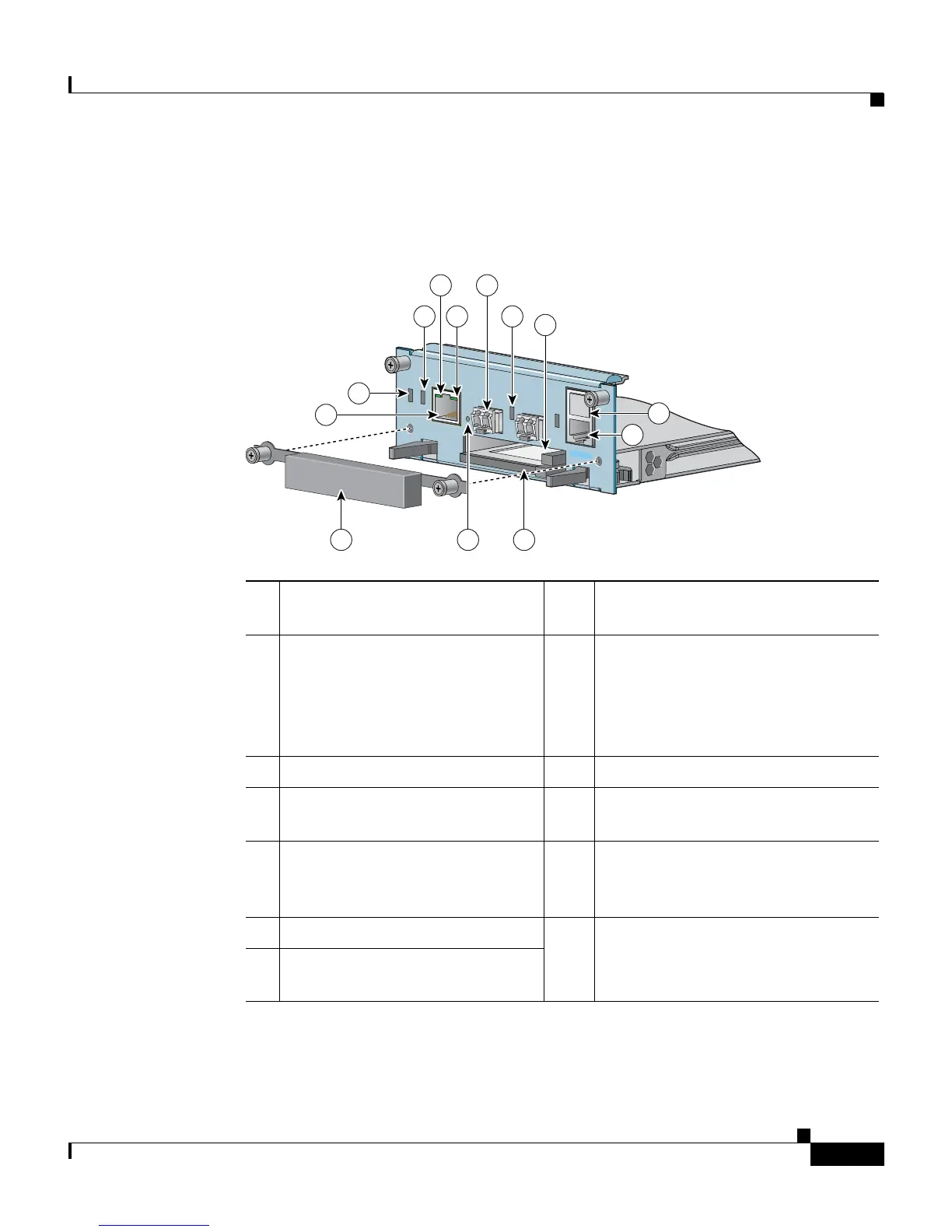

Figure 2-4 illustrates the SCM front panel connectors, PCMCIA slots, and LEDs.
Figure 2-4 Switch Control Module Connectors and LEDs
1 10-Mbps half-duplex Ethernet
management connector
8 RJ-45 RS-232 Console connector
2 Bicolor status LED (green and
red)
9 RJ-45 RS-232 Diag connector for
field service diagnostic use only.
(A connector cover is provided.
Removing the cover voids the
warranty.)
3 Amber status LED 10 PCMCIA slot cover
4 Link/Act LED 11a PCMCIA slot 0 containing a flash
or hard disk
5 Duplex LED 11b PCMCIA slot 1 (shown empty) for
optional installation of a second
flash or hard disk
6 SFP GBIC (one of two) 12 Recessed button (reserved for field
service use only)
7 Link LED for the associated
SFP GBIC on the left
78993
CSS5-SCM-2GE
System Control
DUPLEX
LINK/ACT
MANAGEMENT
10BASE-T
SLOT 0
SLOT 1
GE 1
GE 2
LINK
LINK
STATUS
PCMCIA
CONSOLE
2
1
9
8
3
4
5
6
11 b
7
10 11 a12
