Cisco IOS Software Configuration Guide for Cisco Aironet Access Points

OL-14209-01

Chapter 12 Configuring WDS, Fast Secure Roaming, Radio Management, and Wireless Intrusion Detection Services

Configuring WDS

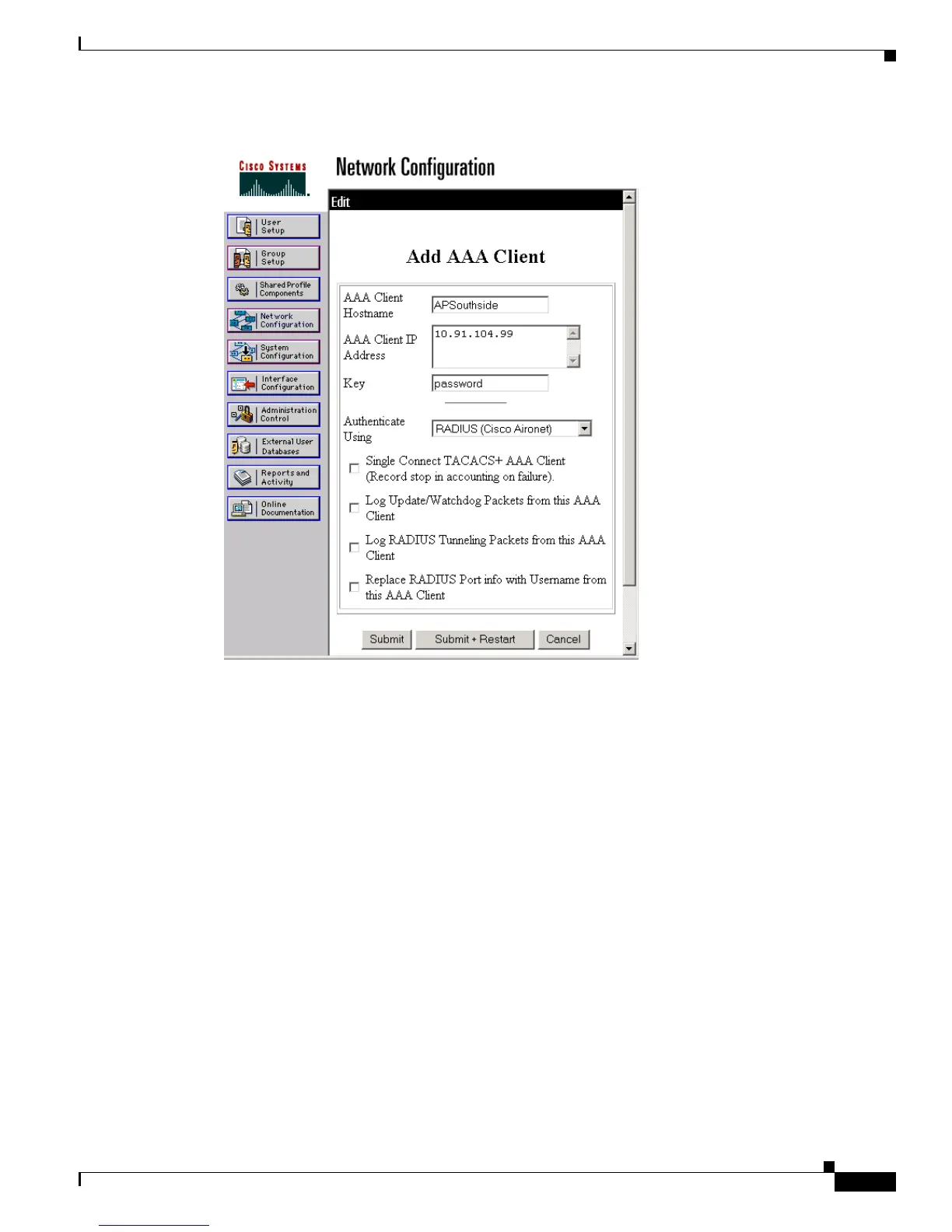

Figure 12-10 Add AAA Client Page

Step 3 In the AAA Client Hostname field, enter the name of the WDS device.

Step 4 In the AAA Client IP Address field, enter the IP address of the WDS device.

Step 5 In the Key field, enter exactly the same password that is configured on the WDS device.

Step 6 From the Authenticate Using drop-down menu, select RADIUS (Cisco Aironet).

Step 7 Click Submit.

Step 8 Repeat Step 2 through Step 7 for each WDS device candidate.
