12-18

Cisco IOS Software Configuration Guide for Cisco Aironet Access Points

OL-14209-01

Chapter 12 Configuring WDS, Fast Secure Roaming, Radio Management, and Wireless Intrusion Detection

Configuring WDS

Step 9 Click User Setup to browse to the User Setup page. You must use the User Setup page to create entries

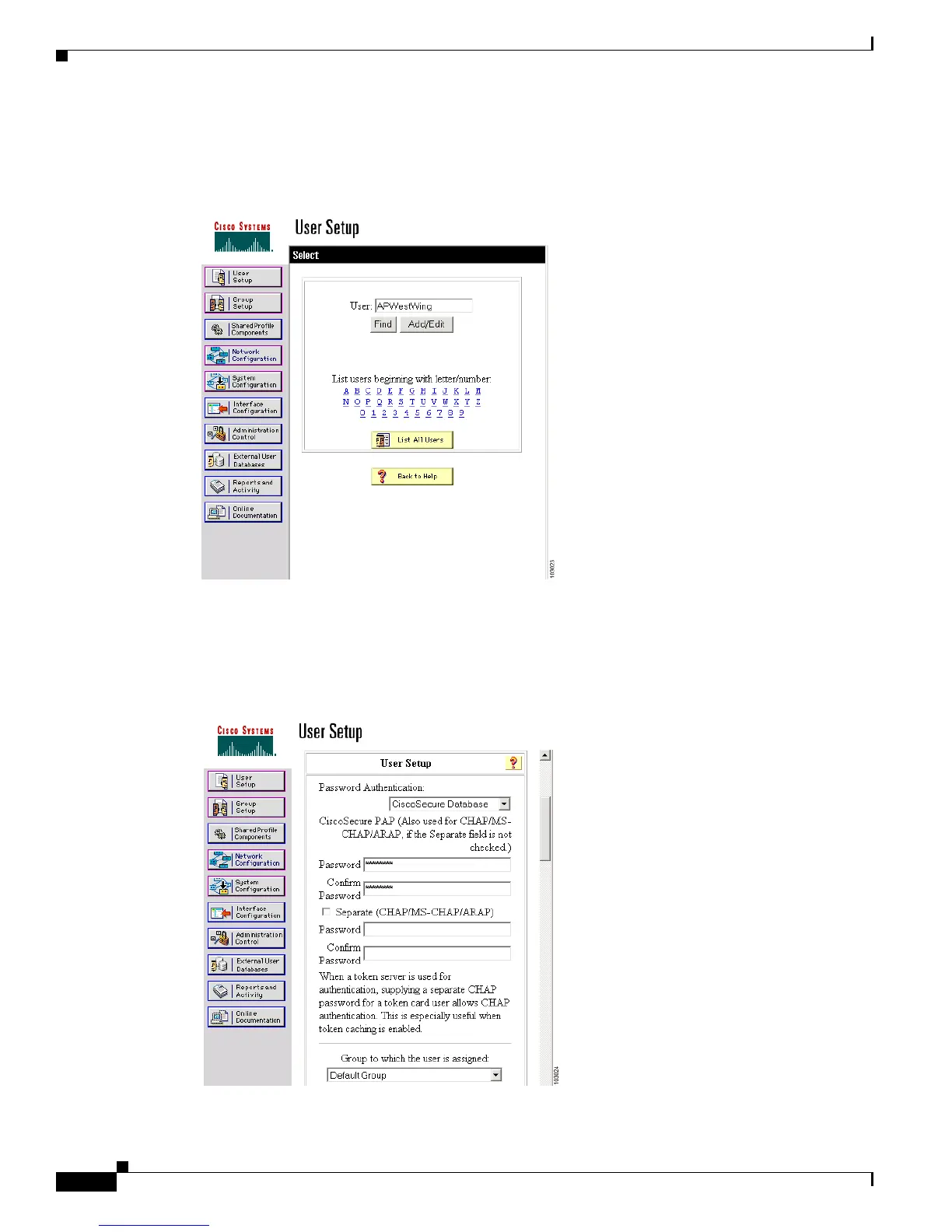

for the access points that use the WDS device. Figure 12-11 shows the User Setup page.

Figure 12-11 User Setup Page

Step 10

Enter the name of the access point in the User field.

Step 11 Click Add/Edit.

Step 12 Scroll down to the User Setup box. Figure 12-12 shows the User Setup box.

Figure 12-12 ACS User Setup Box

Default Chapter3
