Cisco Room Kit EQX User Manual

10 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide

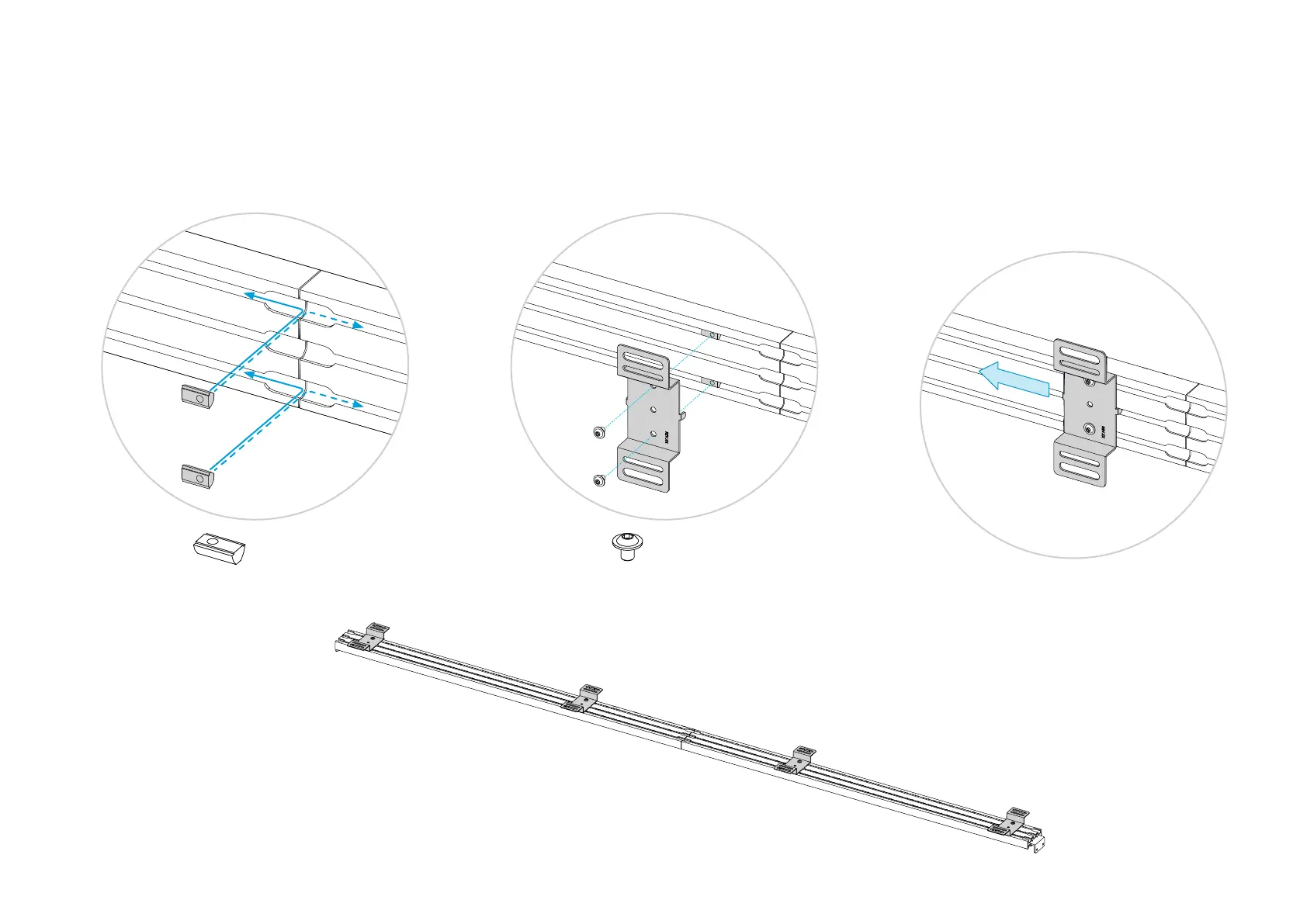

1.4. Add wall brackets to the carrier beam
Repeat the following steps for all wall brackets: two
brackets to the left of center, and two brackets to the right.
1. Enter one nut in the upper and lower notches at the rear
of the carrier beam.
2x for each bracket
3. Slide the bracket on the beam to its correct position, and
tighten the two screws.
The position depends on your wall, so you may have to
adjust the bracket position when fastening the stand to
the wall in step 3.
2. Fasten a wall mount bracket loosely to the nuts, which
you just slid in, with two screws (M6x8, Hex 4 mm); don’t
tighten the screws.
2x for each bracket
