9. Mount the fan module

Fan module

2x Fan (Box: Fans)

The fan module is placed above the bass. It contains two

identical fans.

1x Fan duct top (Box: Center kit)

1x Fan duct bottom (Box: Center kit)

(M4x8, Torx T20)

(Box: Center kit)

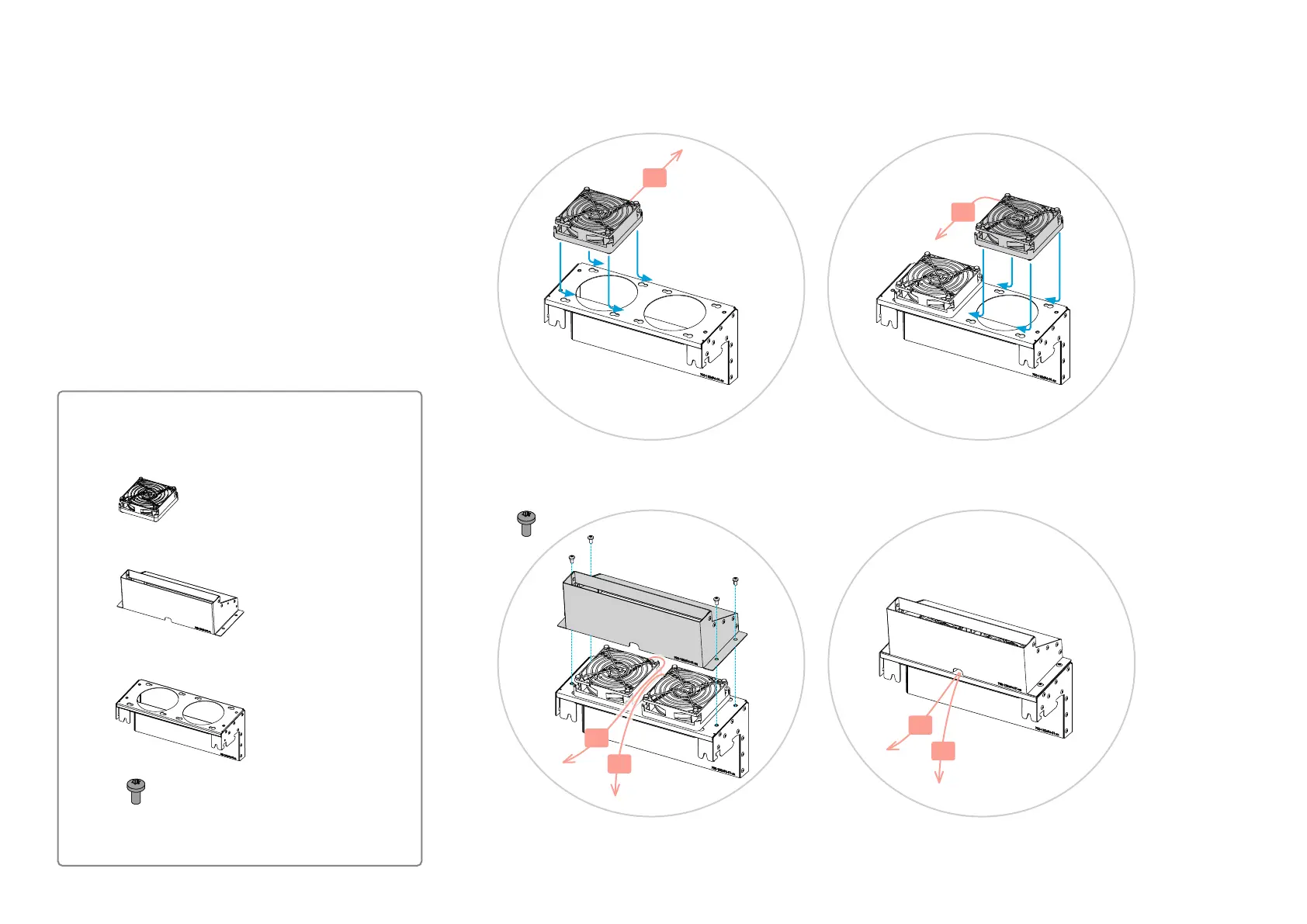

9.1. Assemble the fan module

1. Rotate the fans so that the F2 cable is facing backward and the F1 cable is facing left (see illustrations).

Then slide the fans onto the bottom part of the fan duct.

2. Place the top part of the fan duct on top, and fasten it with 4 screws

(M4x8, Torx T20).

Make sure the cables (F1, F2) comes through the slot at front without being pinched.
