19. Mount the speaker grille

Speaker grille (Box: D)

1x textile speaker grille

Both the speaker grille (assembled in this step) and bottom

grille (assembled in step 20) consist of several parts. The

corners and stiffeners are equal for both grilles; the top/

bottom panels are different.

34x

1x left corner

2x top panel (left and right)

19.1. Assemble the speaker grille

1. Place the textile speaker grille on a flat and clean surface,

front side down.

1x right corner

1x left stiffener 1x right stiffener

1x top panel (center)

34x

×2

There are marks on the parts, identifying which goes on the

left side and which goes on the right side. Left and right,

referring to the grille laying like shown in the illustrations.

2. The pegs on the grille has threaded holes for screws.

The left and right corners are fastened to the rear of the

grille with three screws

(M4x10, Torx T20) and washers

(Plastic washer) for each corner.

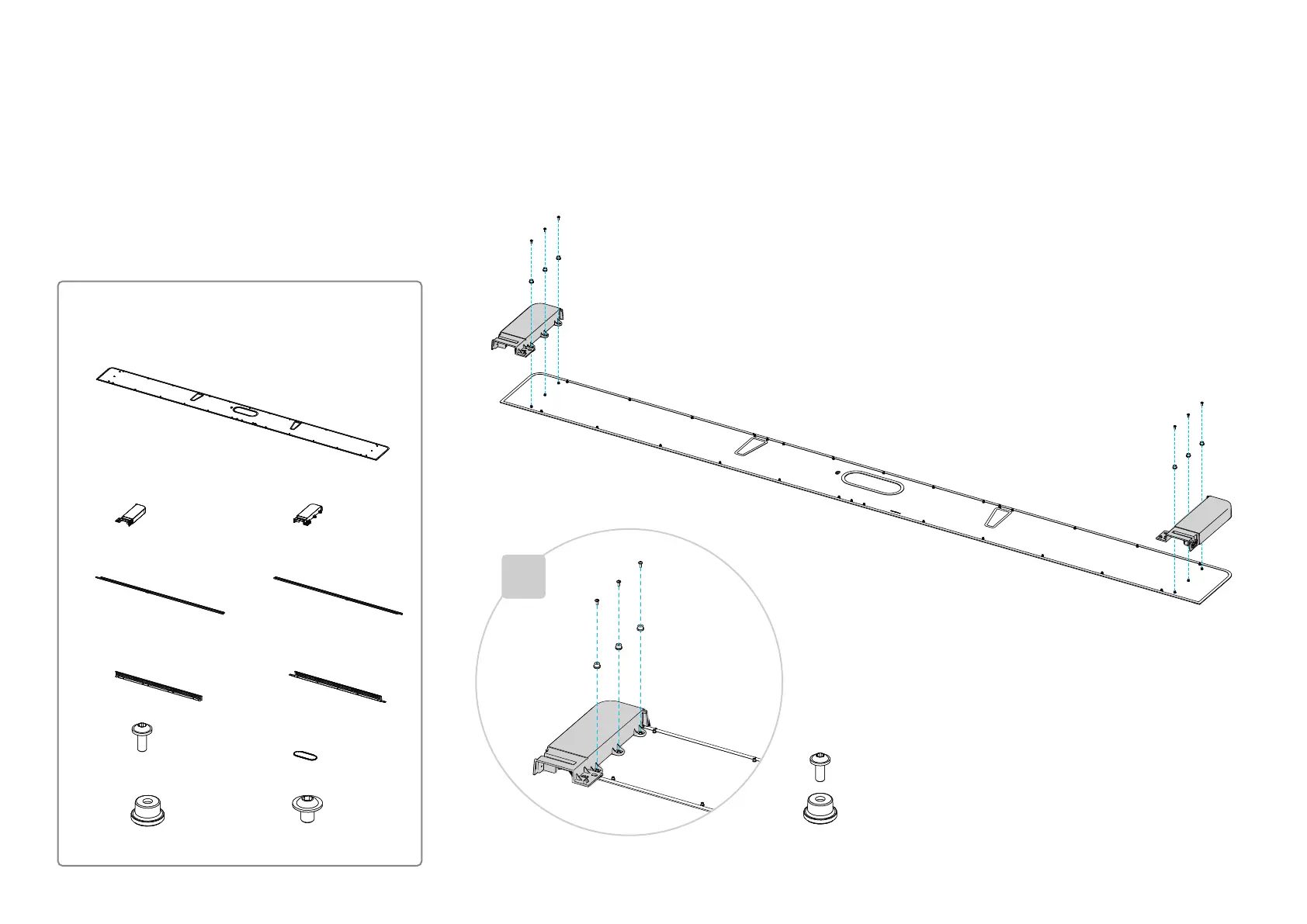

a. Place the corner onto the pegs as shown in the

illustration.

b. Place the washers on the pegs.

c. Screw through the washers and into the pegs.

1x deco ring

(Plastic washer)

(M4x10, Torx T20)

(M6x8, Hex 4 mm)
