Cisco Room Kit EQX - Connect the Microphones; Analog Microphones

Toward
table
M A1.. 3
45 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide
The system needs external microphones. You may have
ordered analog or digital microphones from Cisco, or you
may rely on a 3
rd
party microphone solution.
16. Connect the microphones
Microphones (optional)
(0..3)x Table Microphone Pro
(Box: Table Mic Pro)
(0..3)x Table Microphone
Box: Acc 2)
You may have microphones from a 3
rd
party vendor.
Codec
C
M A1.. 3
Analog microphones:

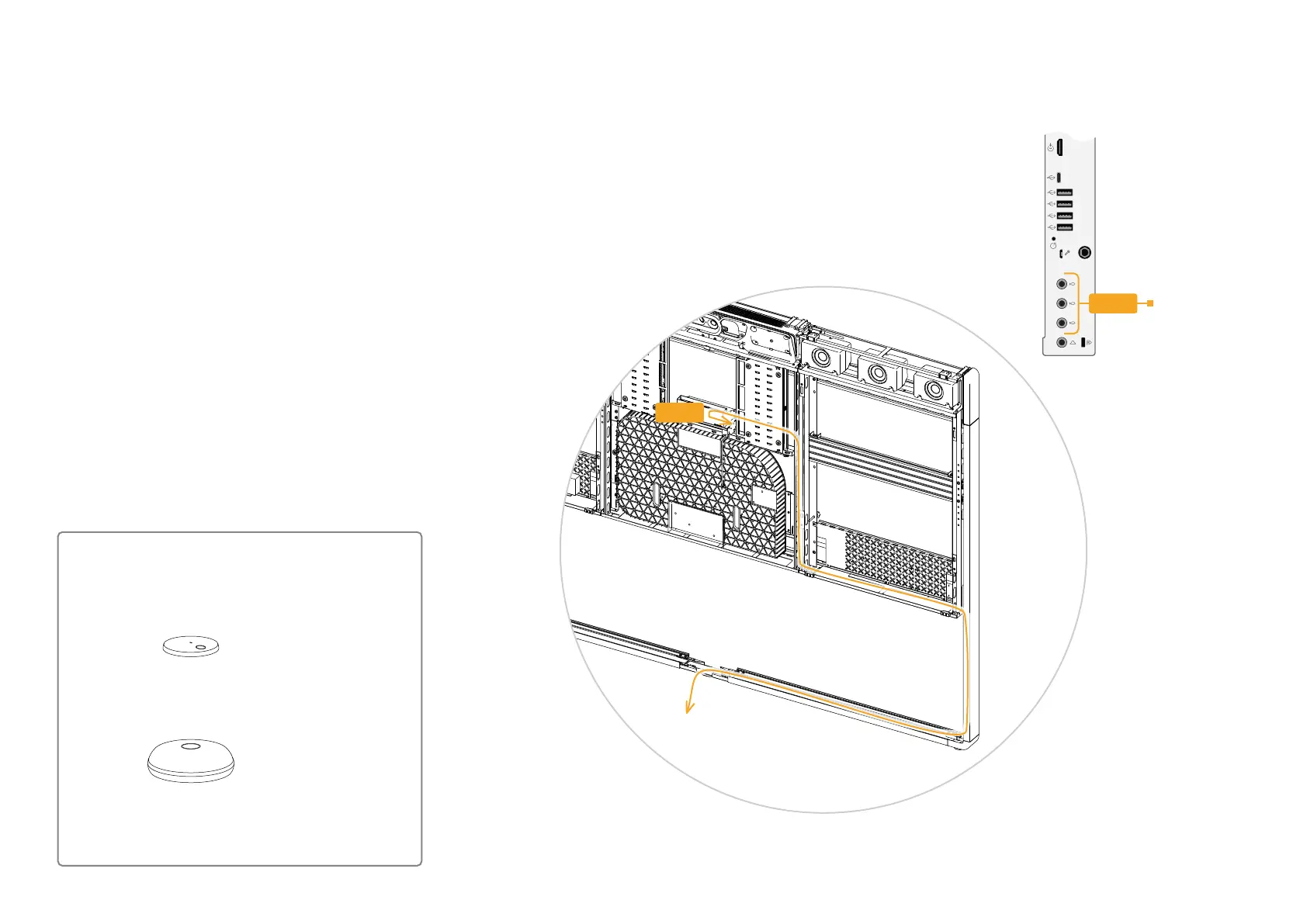

• Lead the microphone cables from the table to the system
using the regular cable routes. Then connect them to the
codec (MA1..3).
