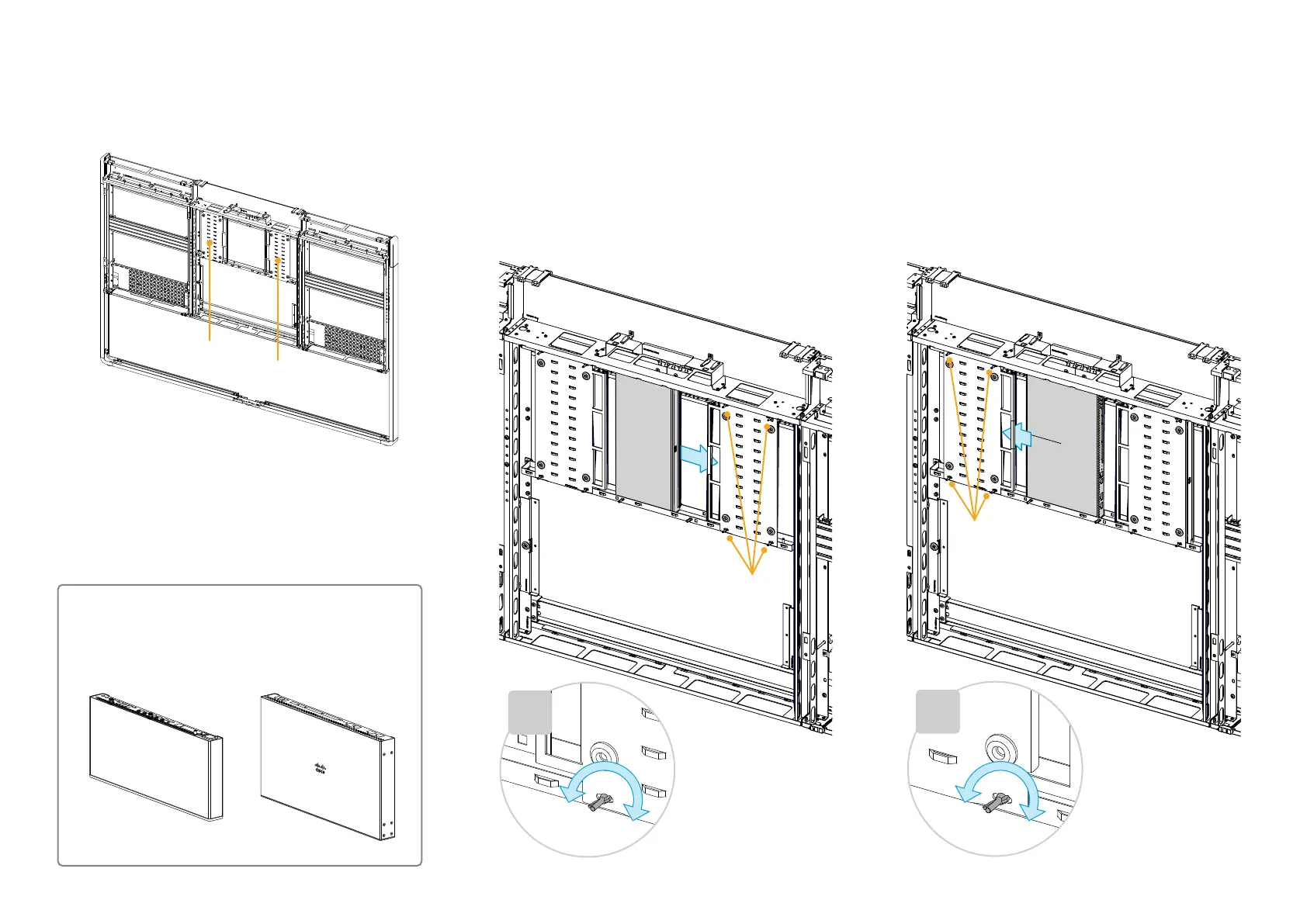

5. Insert the codec and amplifier
The codec and amplifier are placed in the center module, in
bays behind metal clamps.
codec
amplifier
Codec and amplifier
1x codec
(Box: Codec)
1x amplifier
(Box: Amplifier)
5.1. Insert the codec
1. Loosen slightly the four wing nuts that hold the right
metal clamp in place.
2. Slide the codec fully into the bay behind the clamp.
Connectors facing toward center; power socket up.
3. Slide the metal clamp to the right until it stops against the
codec edge; then tighten the four wing nuts to keep the
codec in place.
5.2. Insert the amplifier
1. If the amplifiers has rack ears, remove them. (Torx T10).
2. Loosen slightly the four wing nuts that holds the left
metal clamp in place.
3. Slide the amplifier fully into the bay behind the clamp.
Connectors facing toward center; fan connectors up.
4. Slide the metal clamp to the left until it stops against the
amplifier edge; then tighten the four wing nuts to keep
the amplifier in place.
Wing
nuts
Wing
nuts
×4
×4
