8. Mount the loudspeakers
Loudspeakers
6x loudspeaker (Box: Speakers)
There are three loudspeakers on each side - and a bass unit.
Their cables are bundled, and have a common connector
connected to the amplifier. The other ends of the cable
bundle are labeled S1, S2, S3, S4, S5, S6, SB1 to identify
which cable goes to which loudspeaker.
8.1. Connect and arrange the cables
1. Connect the loudspeaker cable to the amplifier.

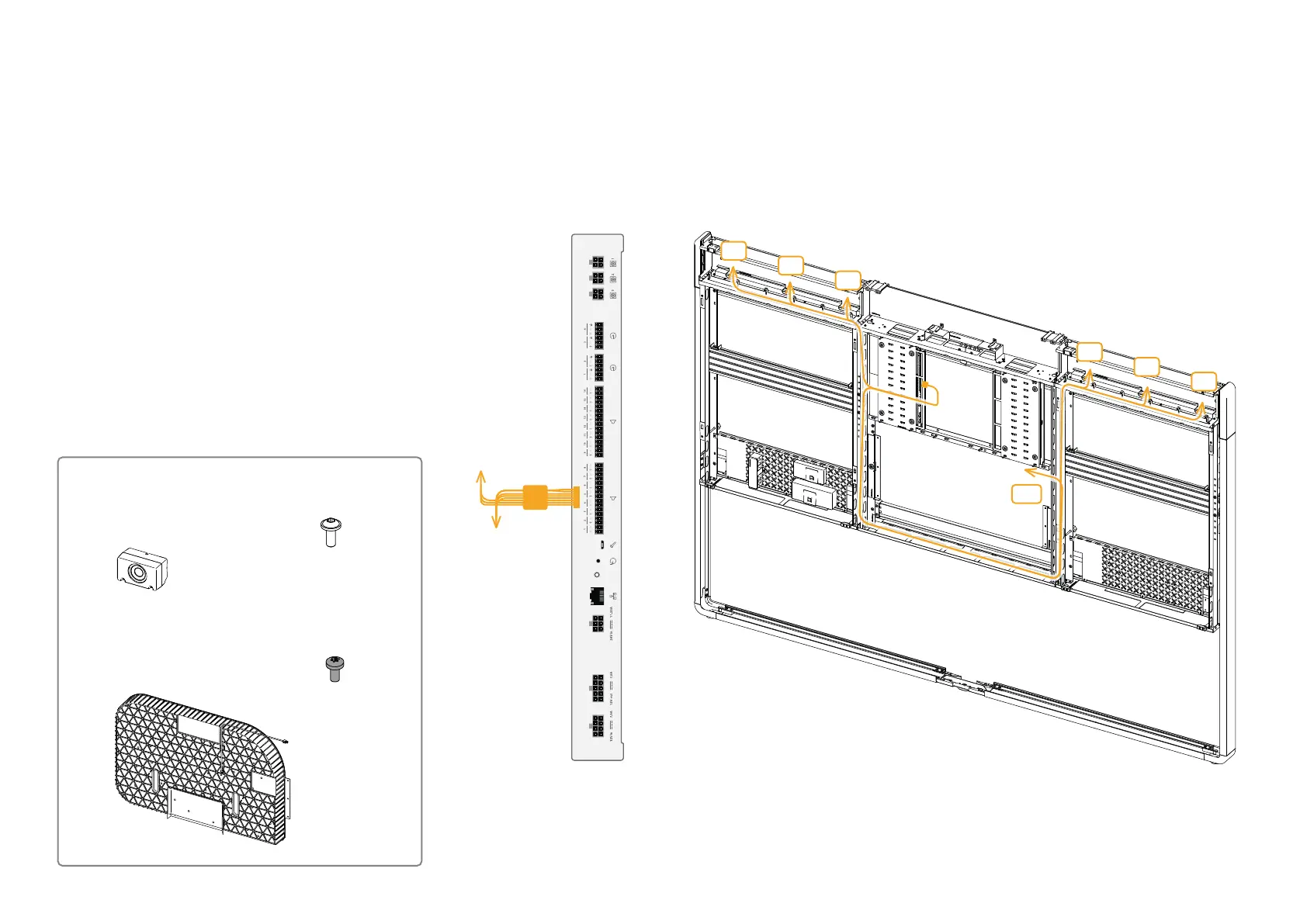

2. Route the other ends of the cable bundle as shown in the
illustration. Let the ends hang freely at this point.
Check the labels, because it is important for the audio
experience that the correct cable is connected to the
correct loudspeaker.
1x bass (Box: Bass)
Amplifier
A1
To right
loudspeakers
and bass
To left
loudspeakers
12x
6x
SB1
S1
S2
S3
S4
S5
S6
(M4x10, Torx T20)
(Box: Center kit)
(M4x8, Torx T20)
(Box: Center kit)
