37 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide
R1
R2
R3
11. Mount the antenna brackets
Antennas (Box: Acc 2)
The system has two Wi-Fi antennas and one Bluetooth®
antenna.
The antenna cables are pre-mounted on the brackets; the
whip antennas themselves are mounted in step 13.
1x Bluetooth antenna bracket with antenna cable
1x Wi-Fi antenna bracket with two antenna cables
4x

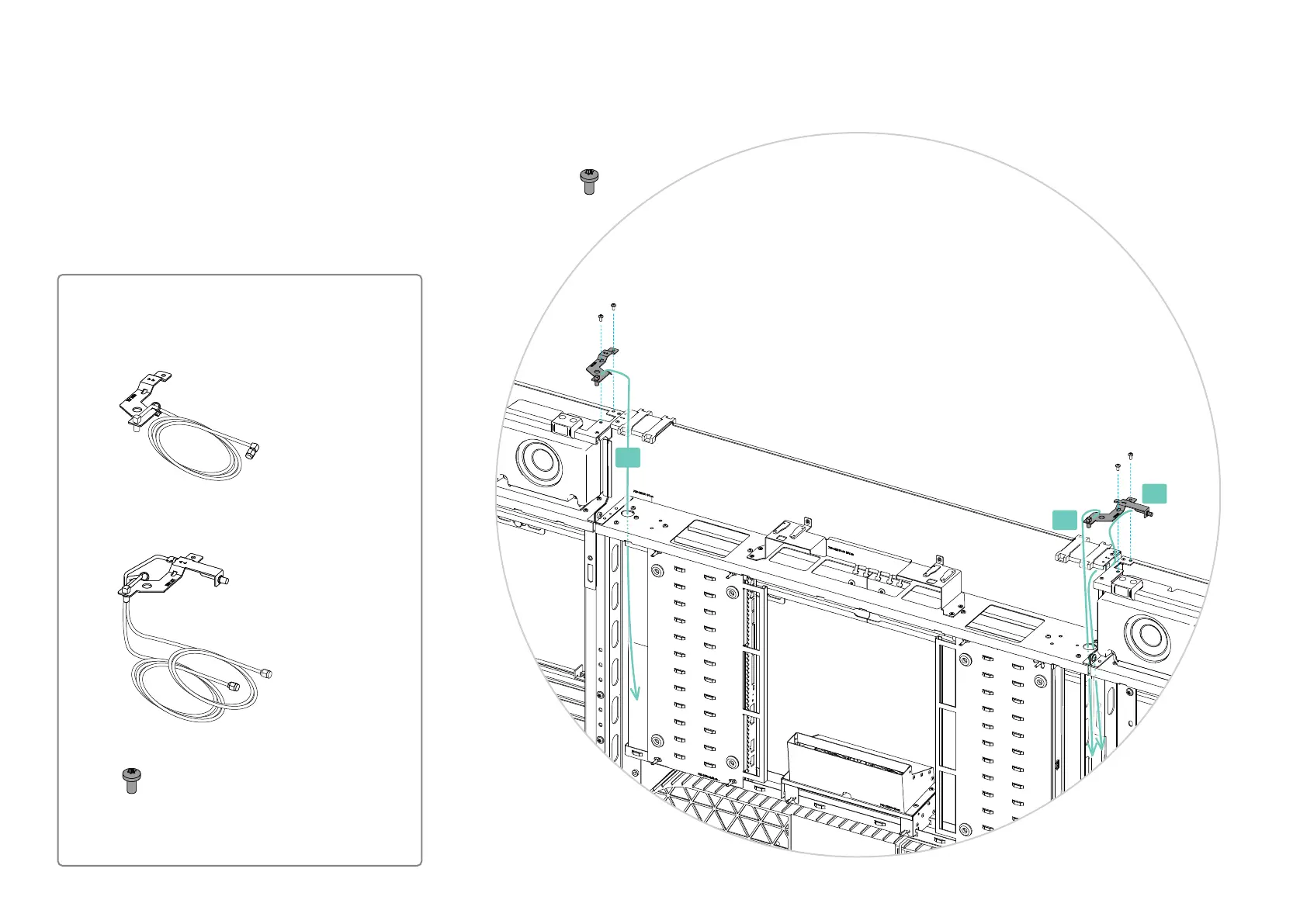

11.1. Fasten the antenna brackets
Fasten the two antenna brackets with two screws each (M4x8, Torx T20)
Bluetooth
antenna bracket
Wi-Fi
antenna bracket
(M4x8, Torx T20)
4x
