20. Mount the bottom grille

Bottom grille (Box: D)

1x textile bottom grille

1x left corner

2x bottom panel

(left and right)

20.1. Assemble the bottom grille

1. Place the textile bottom grille on a flat and clean surface,

front side down.

1x right corner

1x left stiffener 1x right stiffener

1x bottom panel

(center)

Both the speaker grille (assembled in step 19) and bottom

grille (assembled in this step) consist of several parts. The

corners and stiffeners are equal for both grilles; the top/

bottom panels are different.

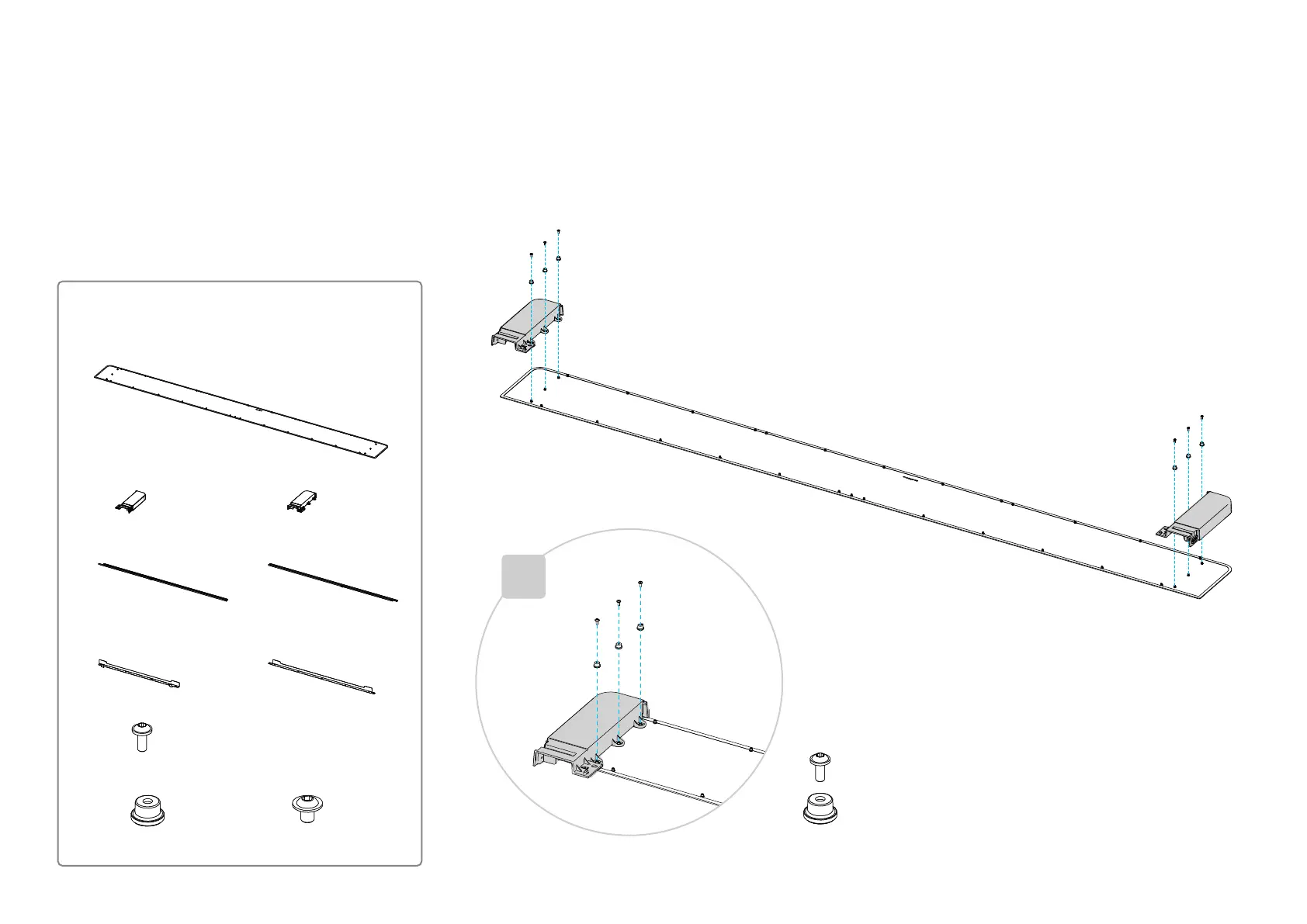

2. The pegs on the grille has threaded holes for screws.

The left and right corners are fastened to the rear of the

grille using three screws

(M4x10, Torx T20) and washers

(Plastic washer) for each corner.

a. Place the corner onto the pegs as shown in the

illustration.

b. Place the washers on the pegs.

c. Screw through the washers and into the pegs.

×2

32x 4x

32x

(Plastic washer)

(M4x10, Torx T20)

(M6x8, Hex 4 mm)
