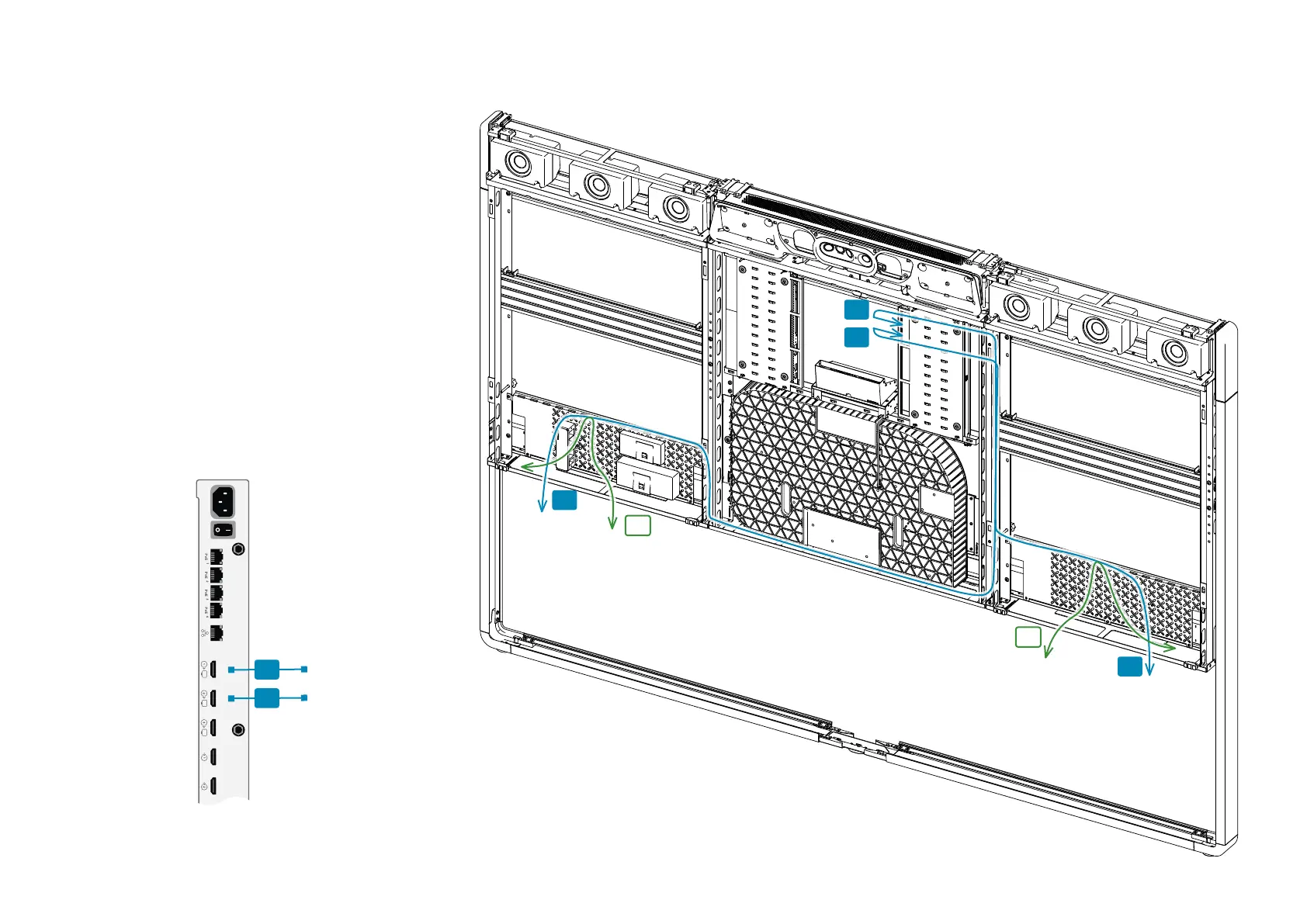

14. Connect screen cables
HDMI cables for the screens:
• Connect the left (S1) and right (S2) screen HDMI cables
to the codec.
• Route the cables as shown, and leave the end for the
screen hanging freely. The cables will be connected to
the screens in step 28.
Power cables for the screens:
• Fasten the power cables for the left (S3) and right (S4)
screens to the corresponding side module with velcro
straps. These cables are shipped with the screens.
The best placement depend on your screens and the
position of your power outlets.
• Use the regular cable routes when leading the cables
toward the wall socket outlets.
Don’t connect them to the wall socket yet.
• The cables will be connected to the screens in step 28.
Codec
C
S1
S2
