Cisco Room Kit EQX - Assemble Wall Stand Frame

11 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide
2. Assemble the wall stand frame

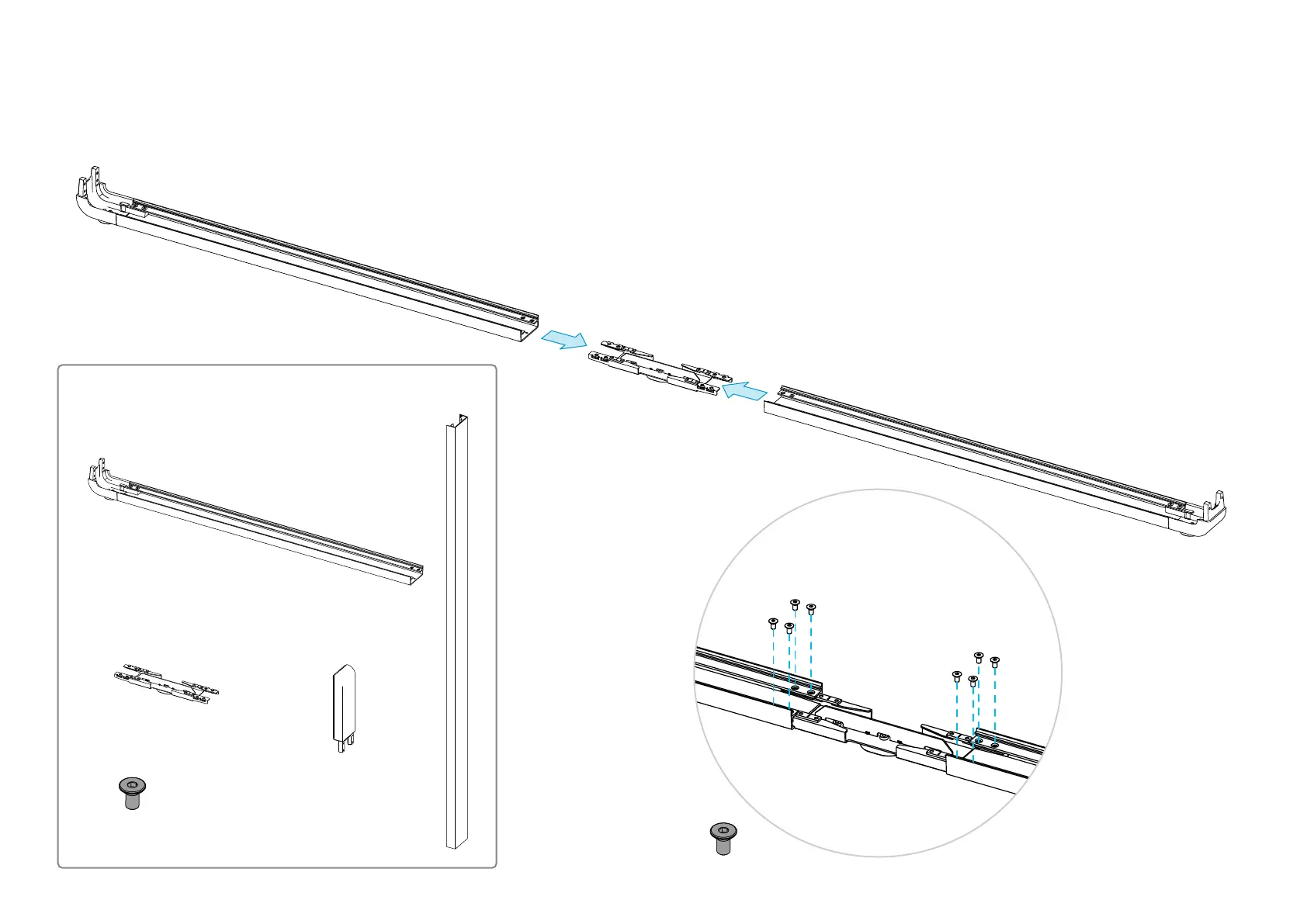

Wall stand frame parts (Box: A)
2x bottom frame (side)
1x bottom frame joining bracket
32x
(M6x12, Hex 4 mm)
2x vertical leg
2x vertical leg top
2.1. Join the lower frame parts
Connect the left and right frame parts together using the joining bracket and 8 screws (M6x12, Hex 4 mm).
8x
