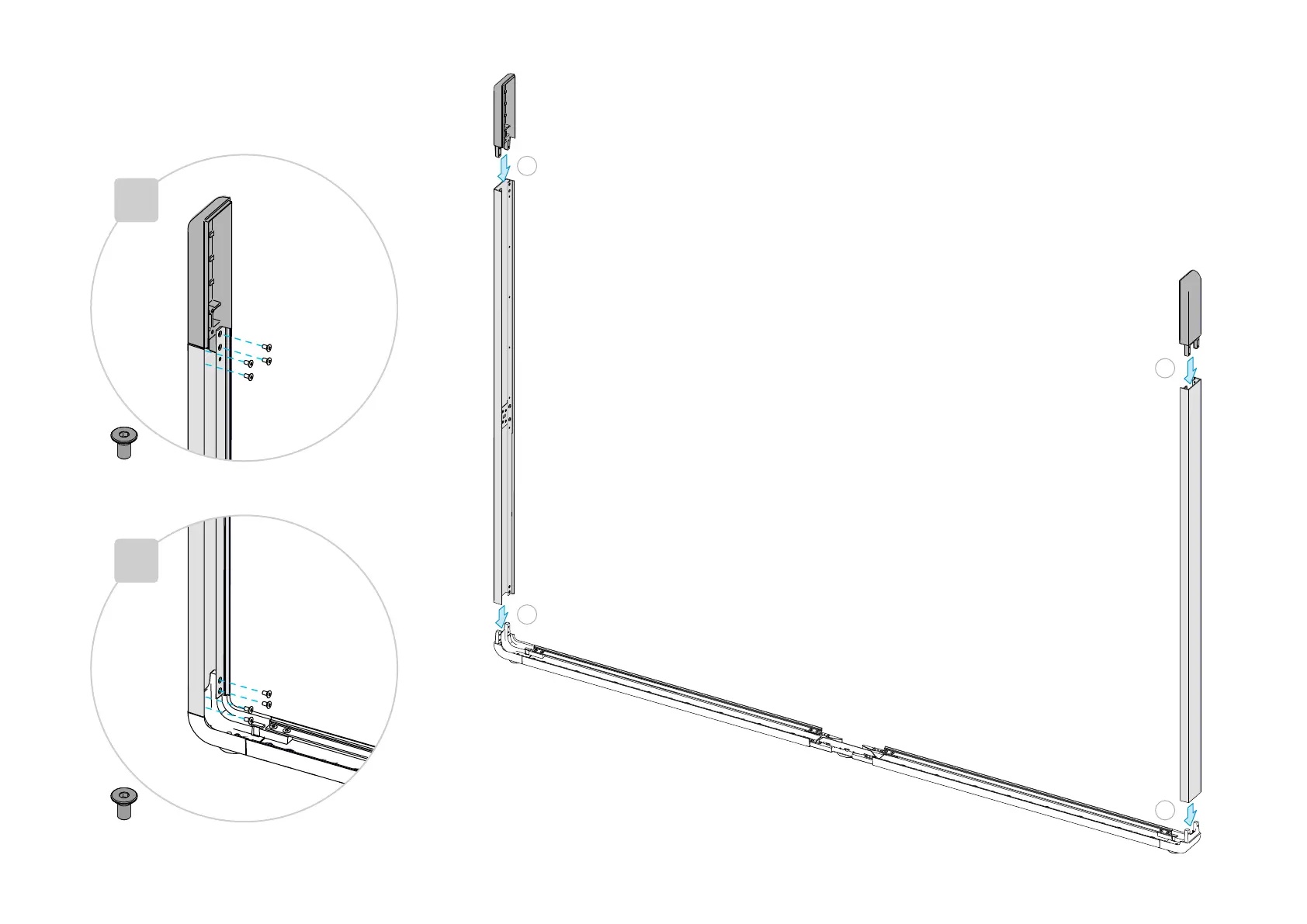

2.2. Add the verticals to the frame
First, connect the long verticals to the frame with 4 screws
each (M6x12, Hex 4 mm), then fasten the top parts with 4
screws each
(M6x12, Hex 4 mm).
×2
×2
1
2
1
2
8x
8x
