3. The left and right stiffener are fastened to the grille with
13 screws (M4x10, Torx T20) and washers (Plastic washer)
in total.
×13

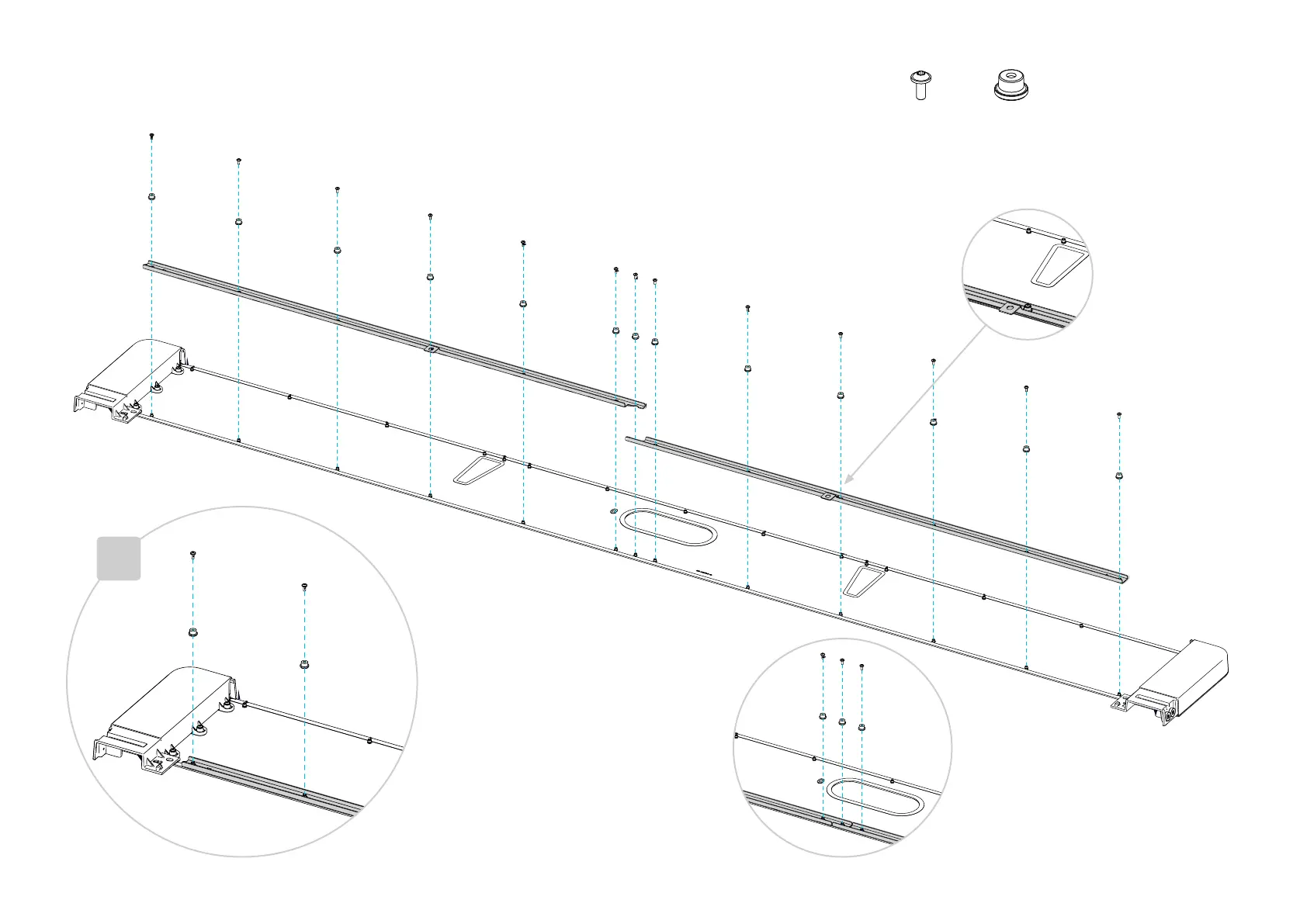

a. Place the stiffeners onto the pegs as shown in the
illustration.
b. Place the washers on the pegs.
c. Screw through the washers and into the pegs.
13x
13x
Take care to place the
stiffeners correctly.
This flap points away
from the grille.
