4. The top panels are fastened to the grille with 15 screws
(M4x10, Torx T20) and washers (Plastic washer) in total.
×15

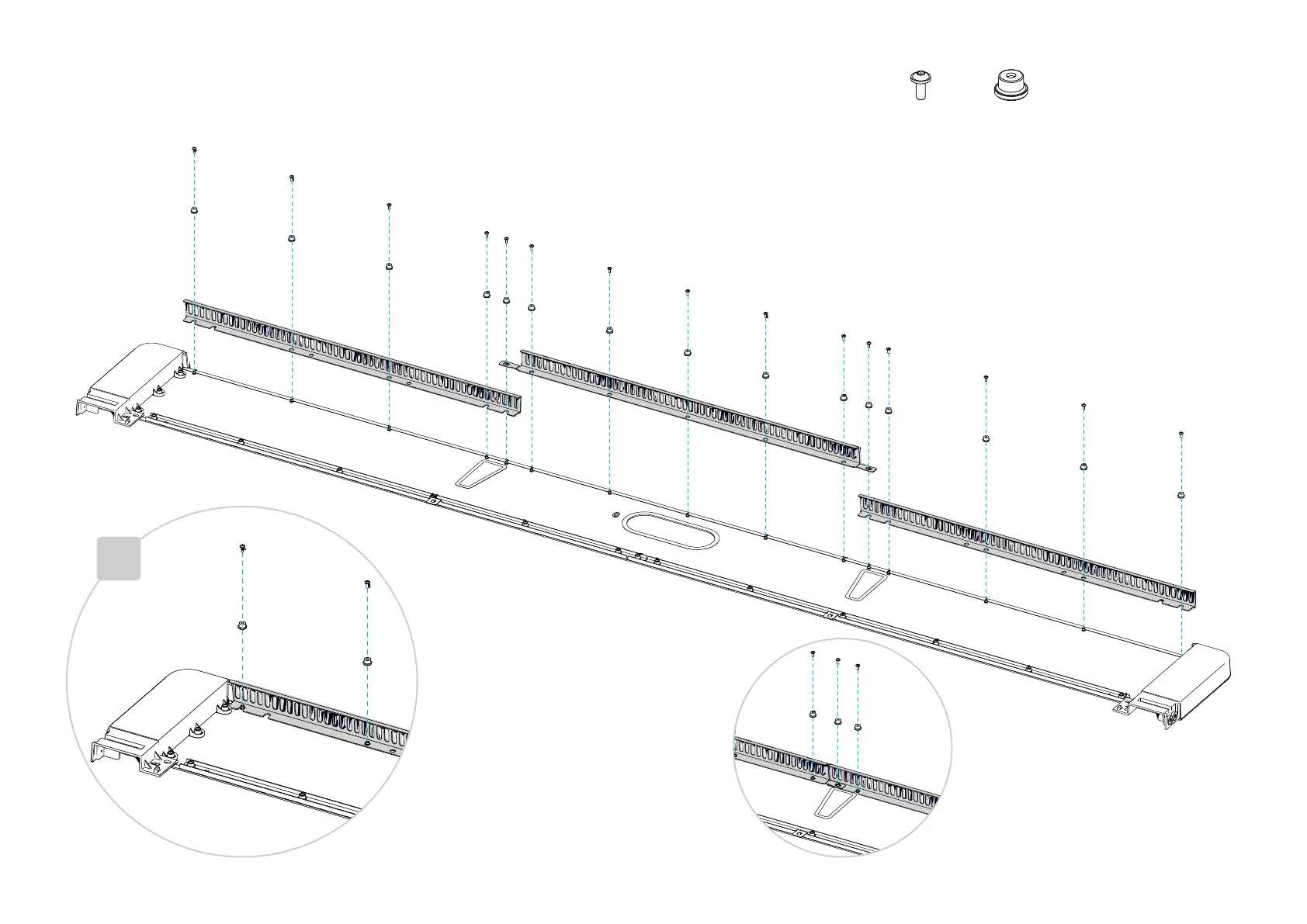

a. First, place the left and right panel onto the pegs as
shown in the illustration. Then, place the center panel
on top.
b. Place the washers on the pegs.
c. Screw through the washers and into the pegs.
15x
15x
To Next Page
