19.2. Attach the speaker grille

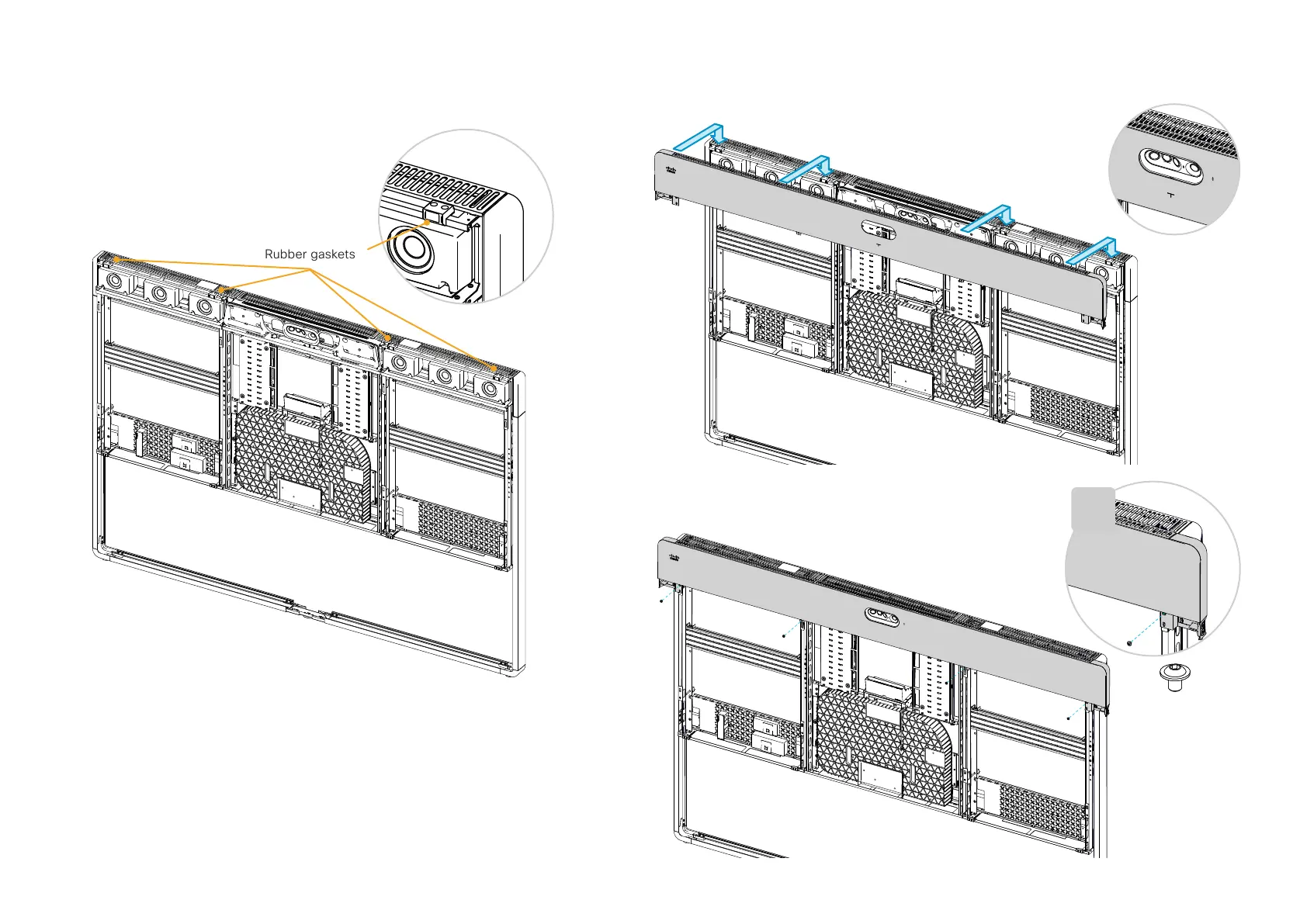

1. Observe the rubber gaskets that the grille will rest on.
2. Hang the speaker grille onto the steel frame and let it rest on the rubber gaskets.
Move it sideways so that the hole for the camera aligns well. Then the screw
holes (next step) will align well too.
×4
4x
3. Fasten the grille with four screws (M6x8, Hex 4 mm).
