Cisco Room Kit EQX - Add Velcro Straps; Insert the Bass

To Next Page

To Previous Page

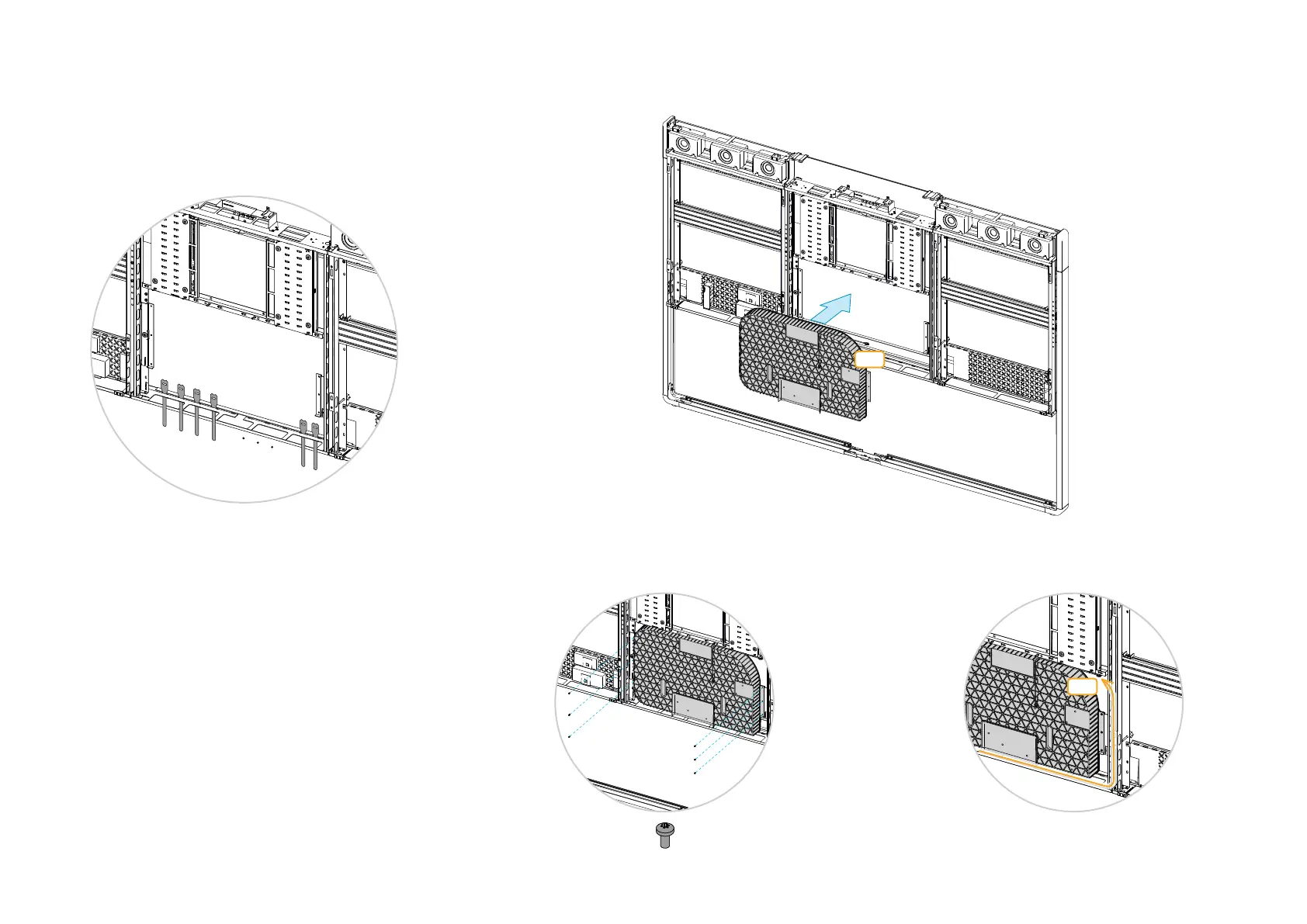

1. Place the bass in the frame, and fasten with six screws

(M4x8, Torx T20).

SB1

2. Connect the cable to the bass. The cable is marked with

SB1.

Make sure that no cables are touching the bass. If they

do, they may cause rattling noise.

8.3. Add velcro straps to the lower tray

We recommend you add velcro straps to the center tray now,

because it’s more difficult when the bass is in place.

You will us them to secure the cables that run underneath the

bass later in the installation process.

8.4. Insert the bass

SB1
