14 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide

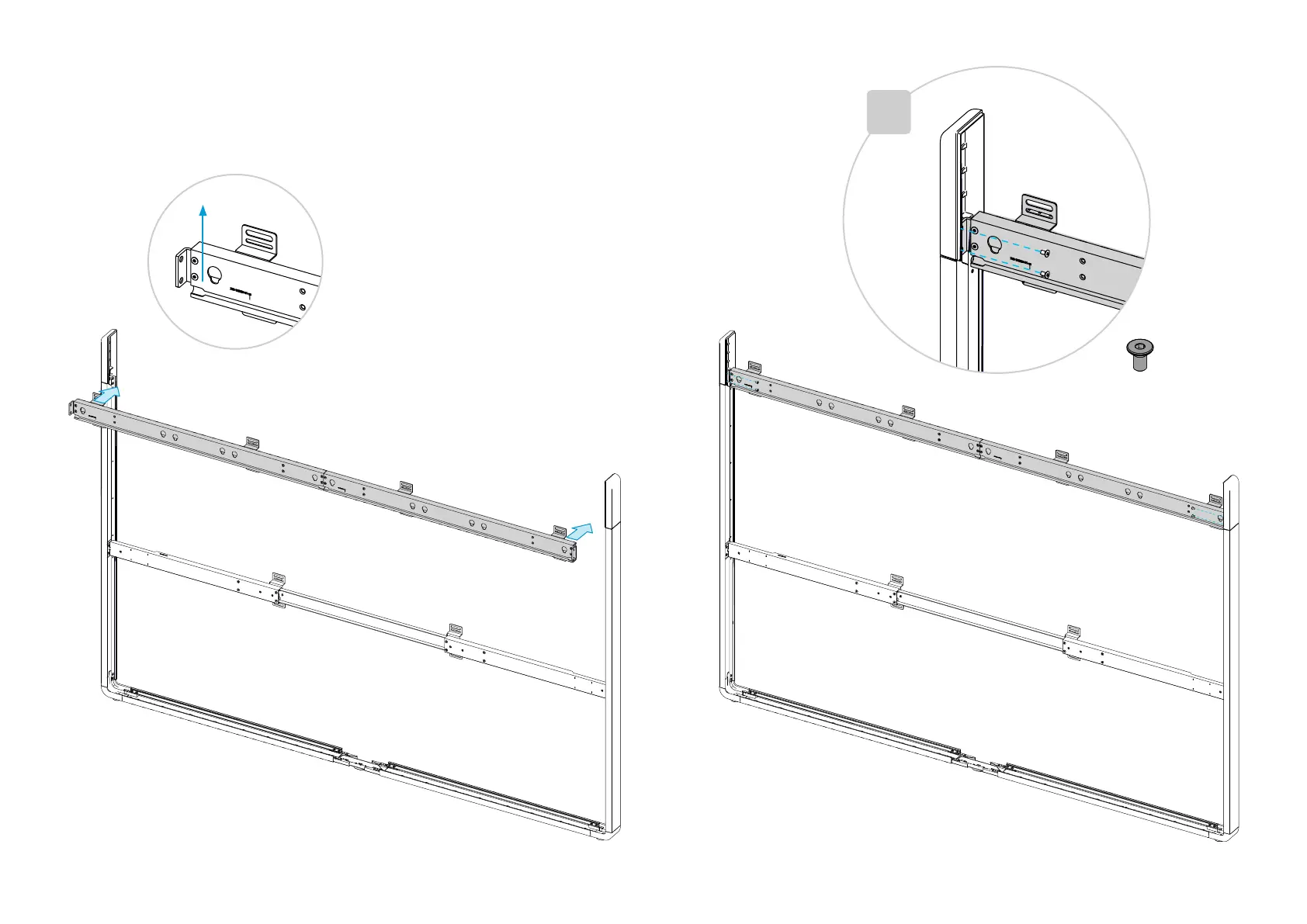

2.4. Attach the beam to the frame
Fasten the beam that you assembled in step 1.3 to the frame
with two screws (M6x12, Hex 4 mm) on each side.
Check the key holes to avoid placing the beam upside down.
×2
4x
Up
