4.2. Hang the center module onto the beam

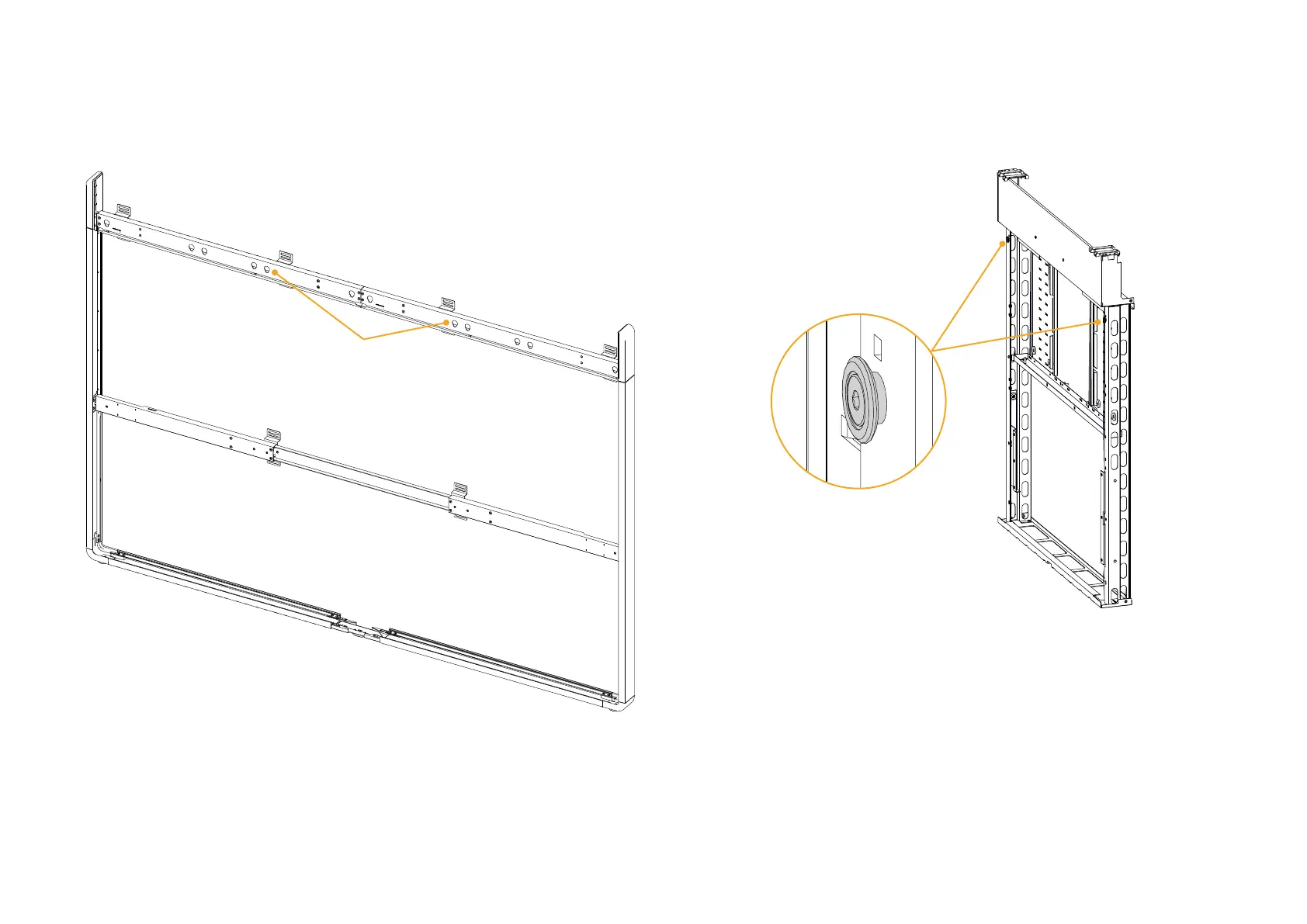

1. Observe the keyholes on the beam, and the large screw heads at
the back of the center module.
These screw heads will hang in the keyholes.
Rear view of center module
Screw with large head,
for hanging the module
on the beam.
Keyholes for the
center module
