12.4. Connect the camera to the codec and amplifier

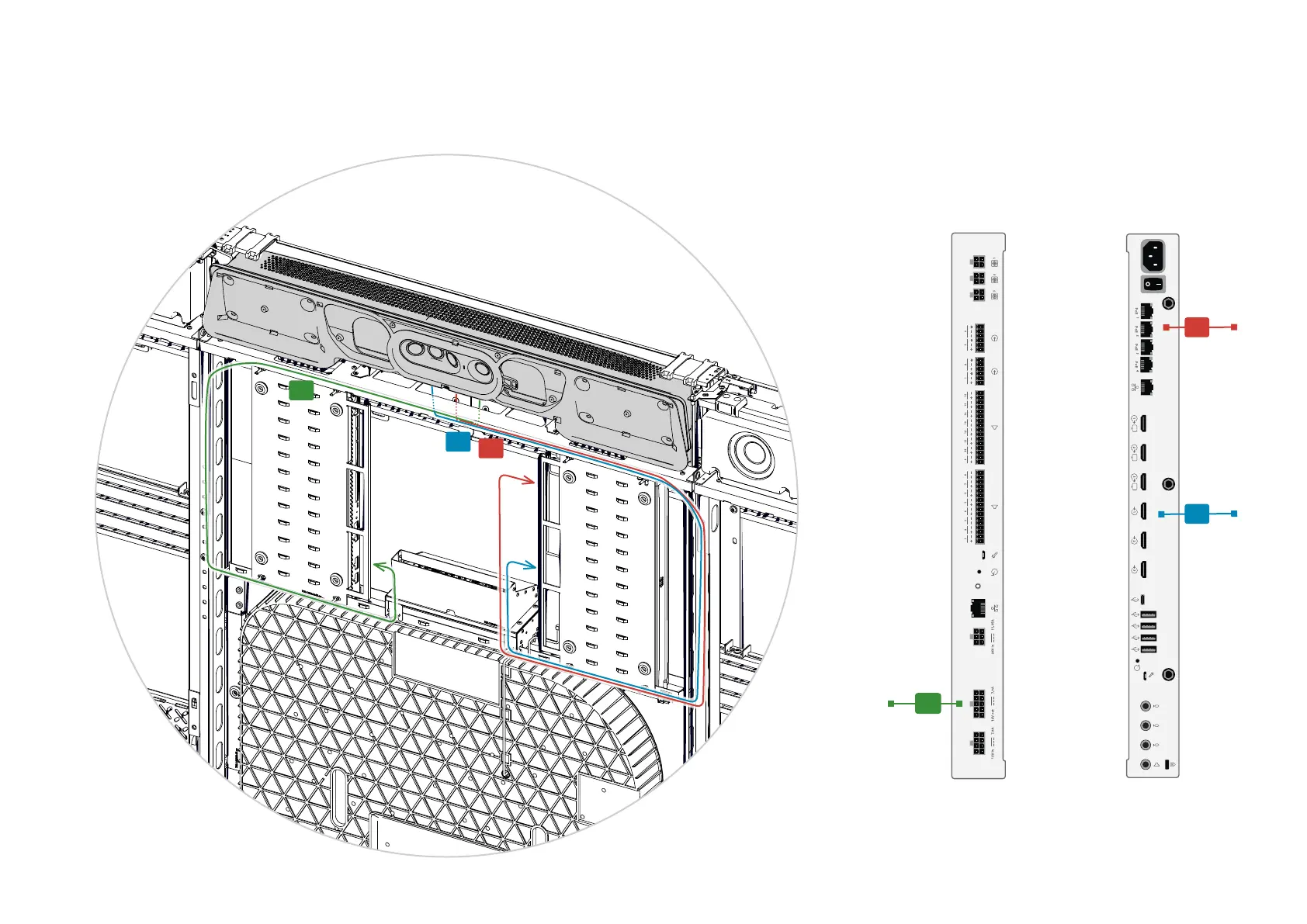

Route the cables as shown in the illustration.
• Connect the video (C1) and camera control (C2) cables to the codec
• Connect the power cable (C3) to the amplifier.
Codec
C1
C2
Amplifier
C3
C3
C1
C2
To Next Page
