Cisco Room Kit EQX - Attach the Bottom Grille

57 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide
4. Fasten the grille with four screws (M6x8, Hex 4 mm).
×2
4x
20.2. Attach the bottom grille

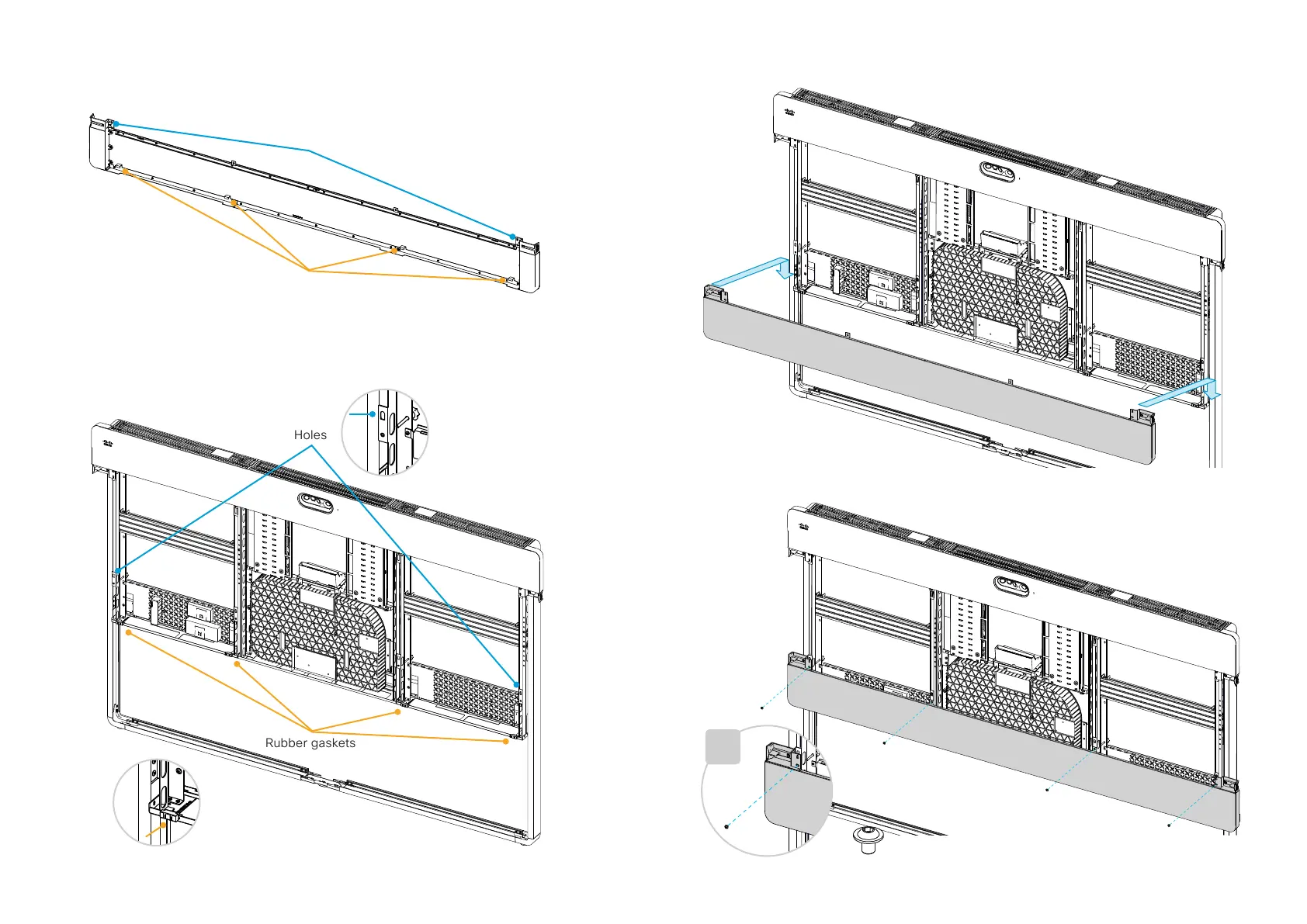

1. Observe the following hooks on the grille rear side.
Hooks for hanging the grille
Hooks for resting on
rubber gaskets
2. Observe the holes that the grille will hang in, and rubber gaskets it will rest on.
Rubber gaskets
Holes
3. Hang the bottom grille in the holes and let it rest on the rubber gaskets.
