Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-27 CL-E720DT

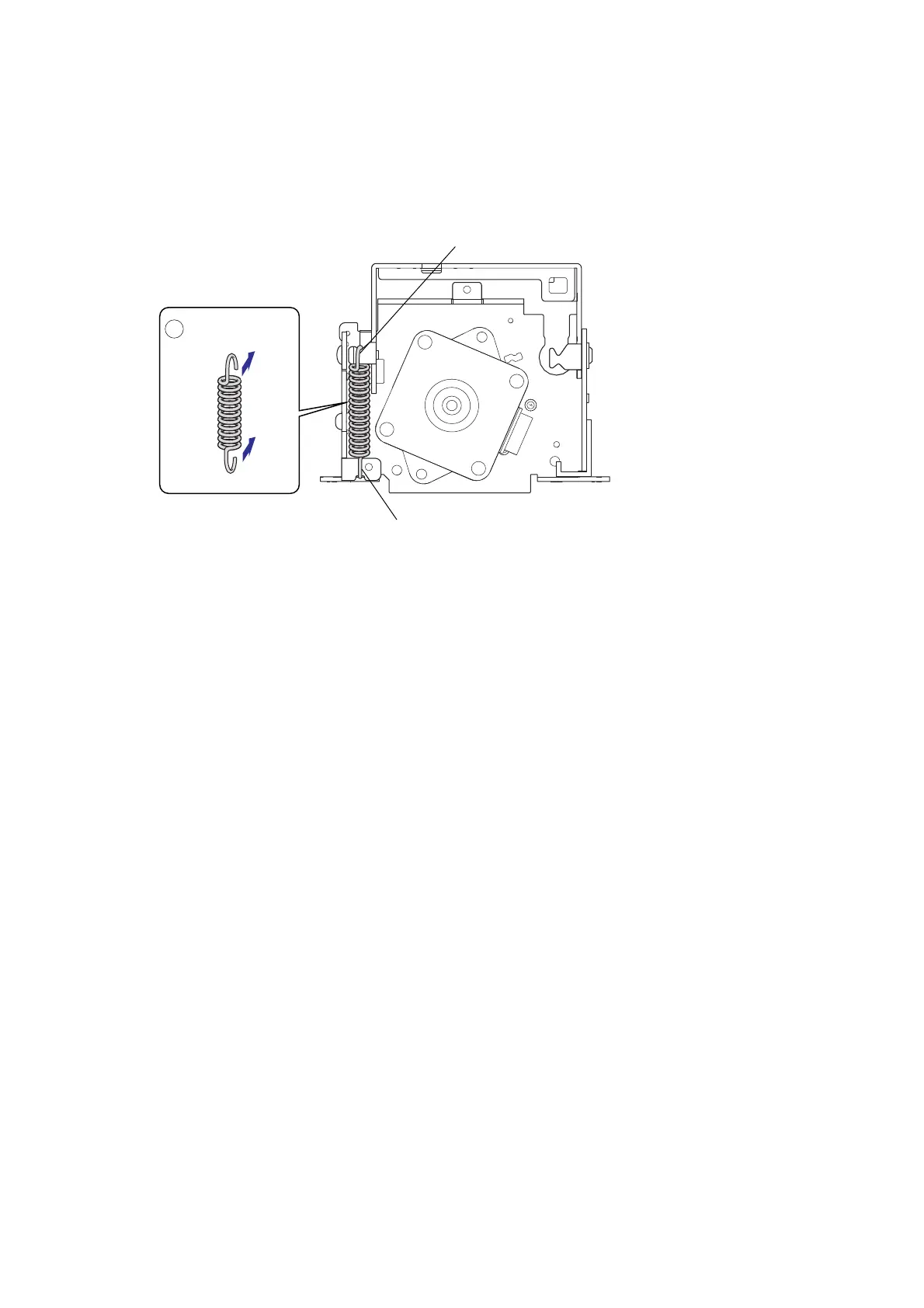

• When engaging the “Spring Head Up” (), first, hook it on the upper hook of the “Unit Head” (),
and next on the lower hook of the “Unit PF” ().
At this time, hook the “Spring Head Up” () so that its hook parts direct inward of the
mechanism as shown below. (This can prevent unwanted noise that might occur when the “Unit
Head” () is opened or closed.)
Spring Head Up
Hook part
Hook part
2
To Next Page
