Citizen CL-E720DT User Manual

Chapter 4 Troubleshooting
4-2. Troubleshooting
CL-E720DT 4-12

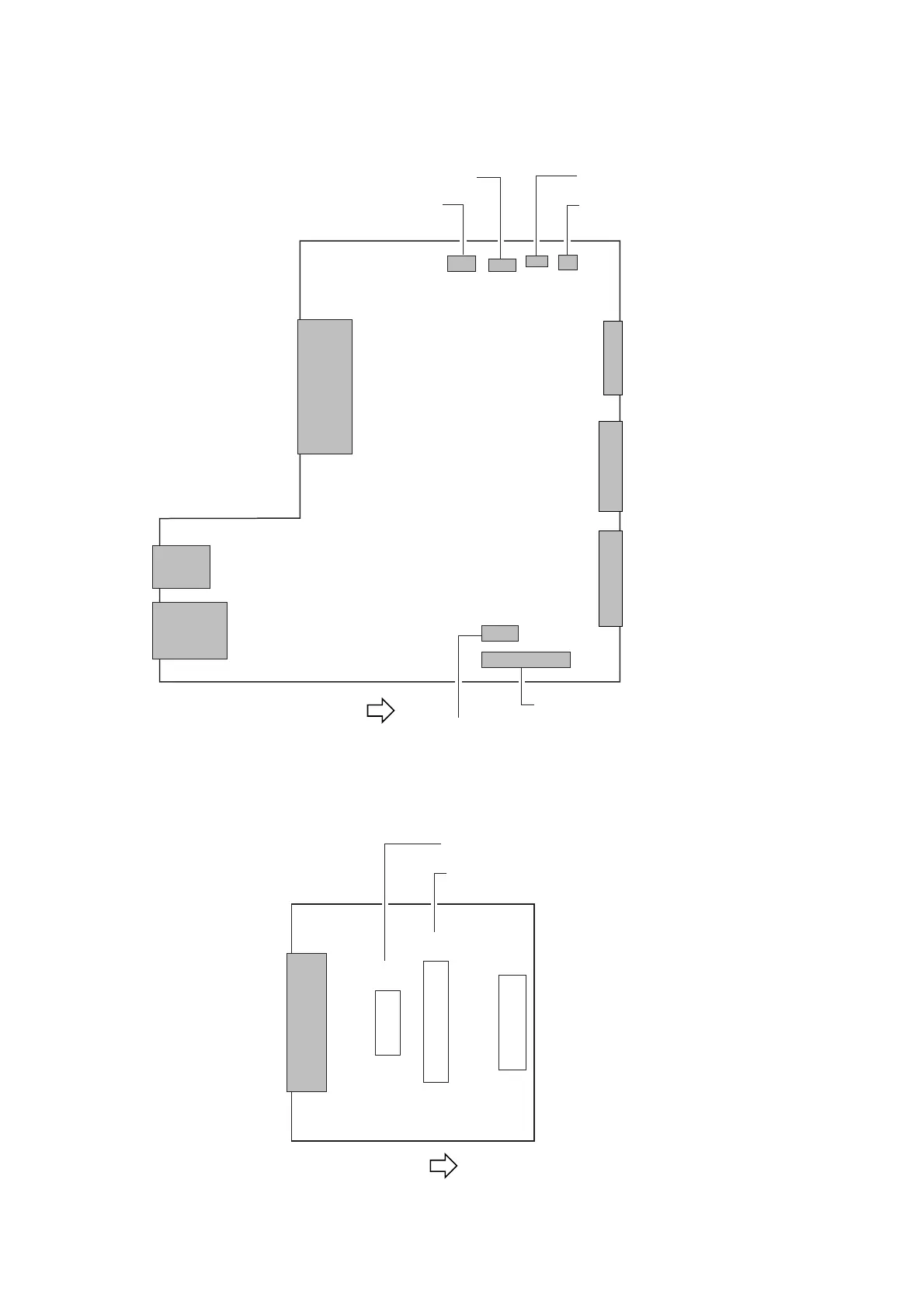

4-2-6. Connector Location
[SA Main PCB]
[SA Relay PCB]
USB2.0
J7
J4
J3
J8 J6
J5
J9
SA Main PCB
J14
To Interface Board
(Optional)
To Unit Power Supply
Front
To SA Opepane PCB
J10
J12
J13
J2
To SA TRA Sen PCBTo SA Ref Sensor PCB
To SA Relay PCB
To SA Head
To thermistor of "SA PF Motor"
To SA PF Motor
Ethernet
To SA Head Up Sensor PCB
J301
SA Relay PCB
To SA Main PCB
Front
To Peeler (Optional)
J303
J302
J304
(Not used)
To Cutter (Optional)

Citizen CL-E720DT Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	LCD
Product color	Black
Wi-Fi	-
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	16 MB
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Media thickness	0.0635 - 0.254 mm
Maximum roll diameter	200 mm
LED indicators	Status
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	10200 g
