Citizen CL-E720DT - Cover PF Motor

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-11 CL-E720DT
3-6-2. Cover PF Motor

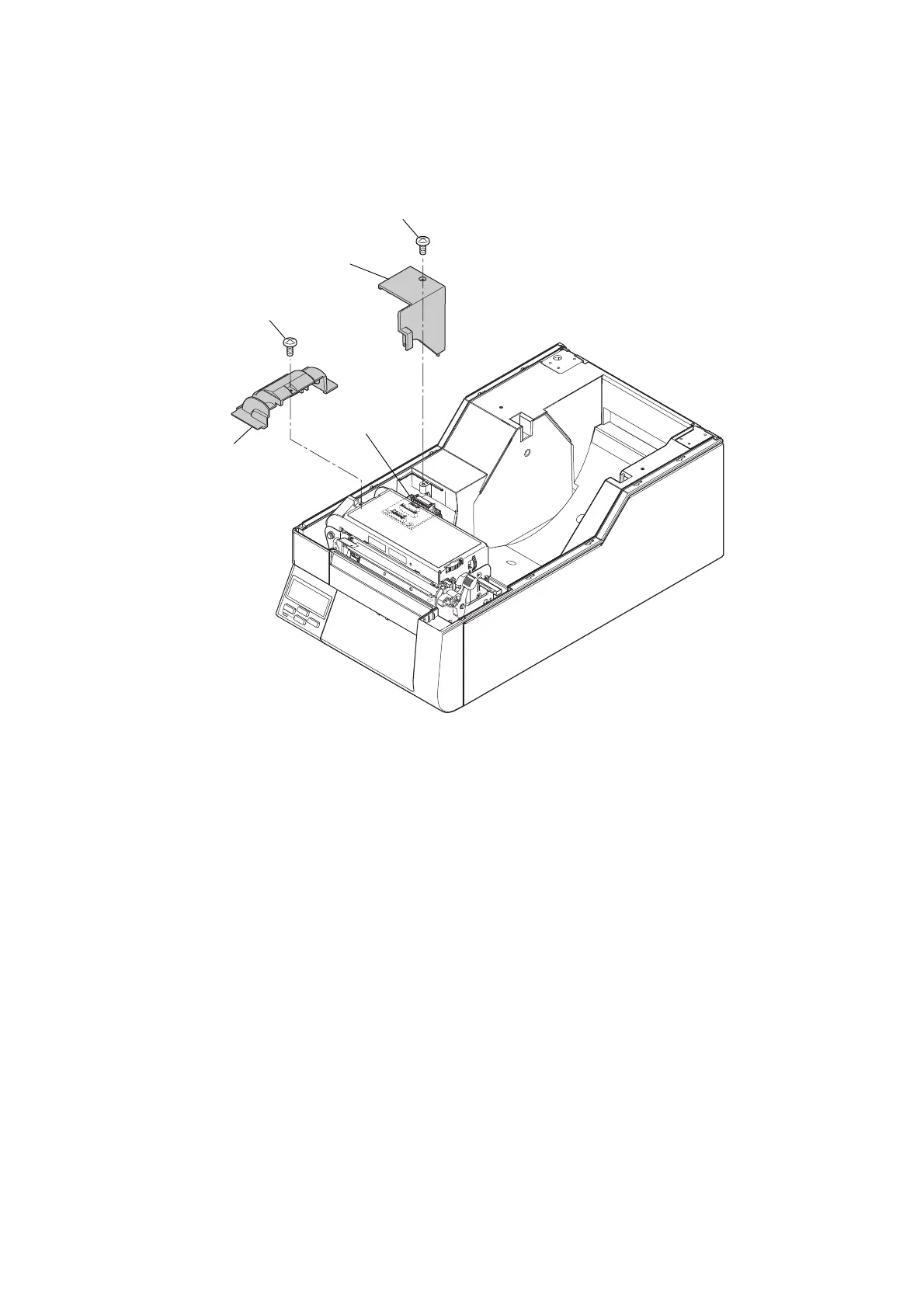

1. Remove the 1 screw (BH M3.0x5K) and detach the “Cover PF Motor DT” upwardly.
2. Remove the 1 screw (NO2 BH M3.0x12D) and detach the “Cover PF Motor 2” () upwardly.
NO2 BH M3.0x12D
BH M3.0x5K
Cover PF Motor DT
Cover PF Motor 2
(SA Relay PCB)
