Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-13 CL-E720DT
3-6-4. Case
1. Remove the “Cover PF Motor”. Refer to “3-6-2 Cover PF Motor”.
2. Remove the “Unit Opepane”. Refer to “3-6-3(1) Unit Opepane”.
3.

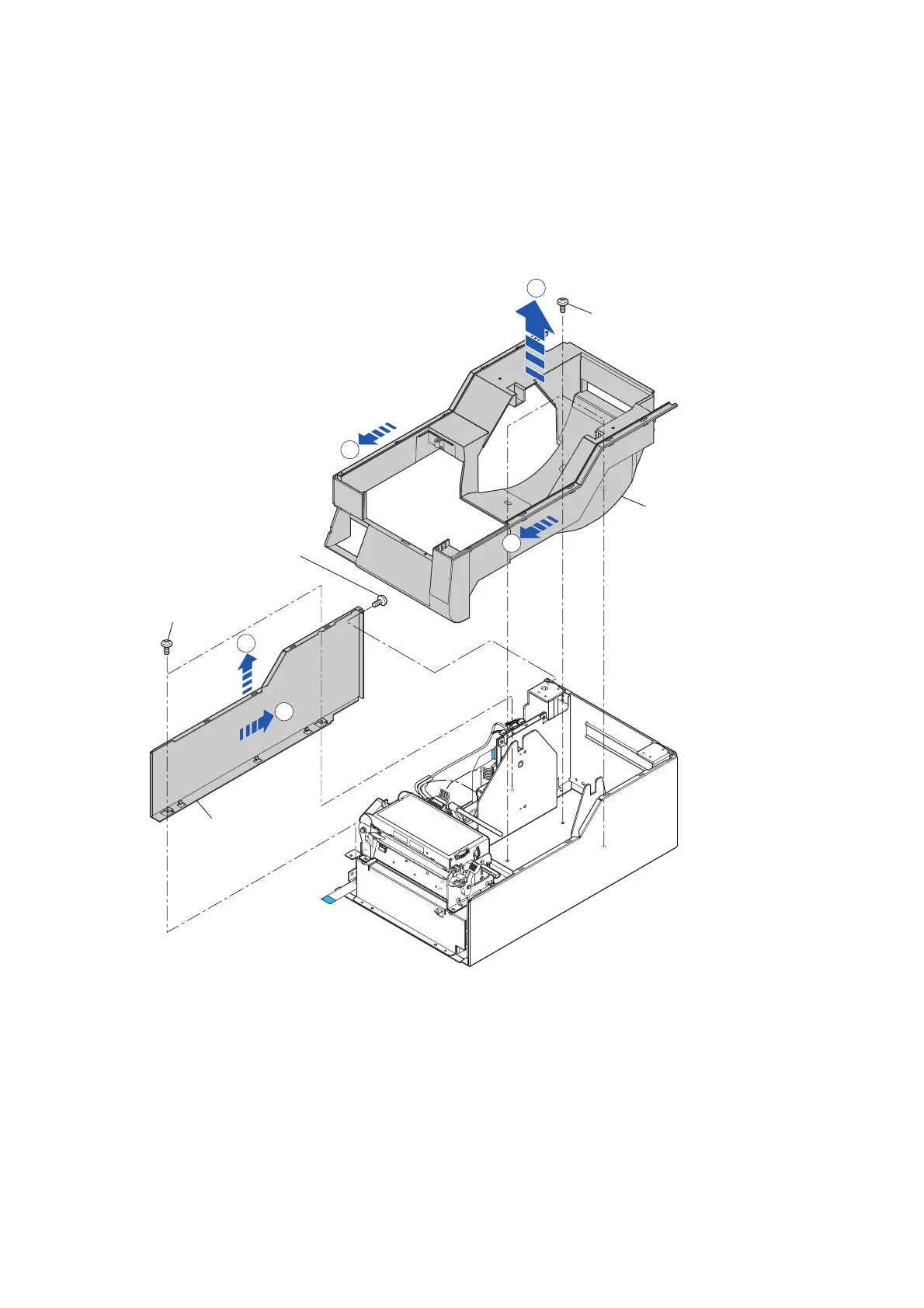

Remove the 3 screws (BH M3.0x4 (NI)), slide the “Case” toward the front (), and then detach
it by lifting upwardly ().
4. Remove the 1 screw (BH M3.0x5K) and 2 screws (BH M3.0x4 (NI)), slide the “Cover Steel L”
backward (), and then detach it by lifting upwardly ().
BH M3.0x4 (NI)
BH M3.0x4 (NI)
BH M3.0x5K
Case
Cover Steel L
1
2
3
4
1
