Citizen CL-E720DT - SA Platen

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E720DT 3-20
3-6-9. SA Platen

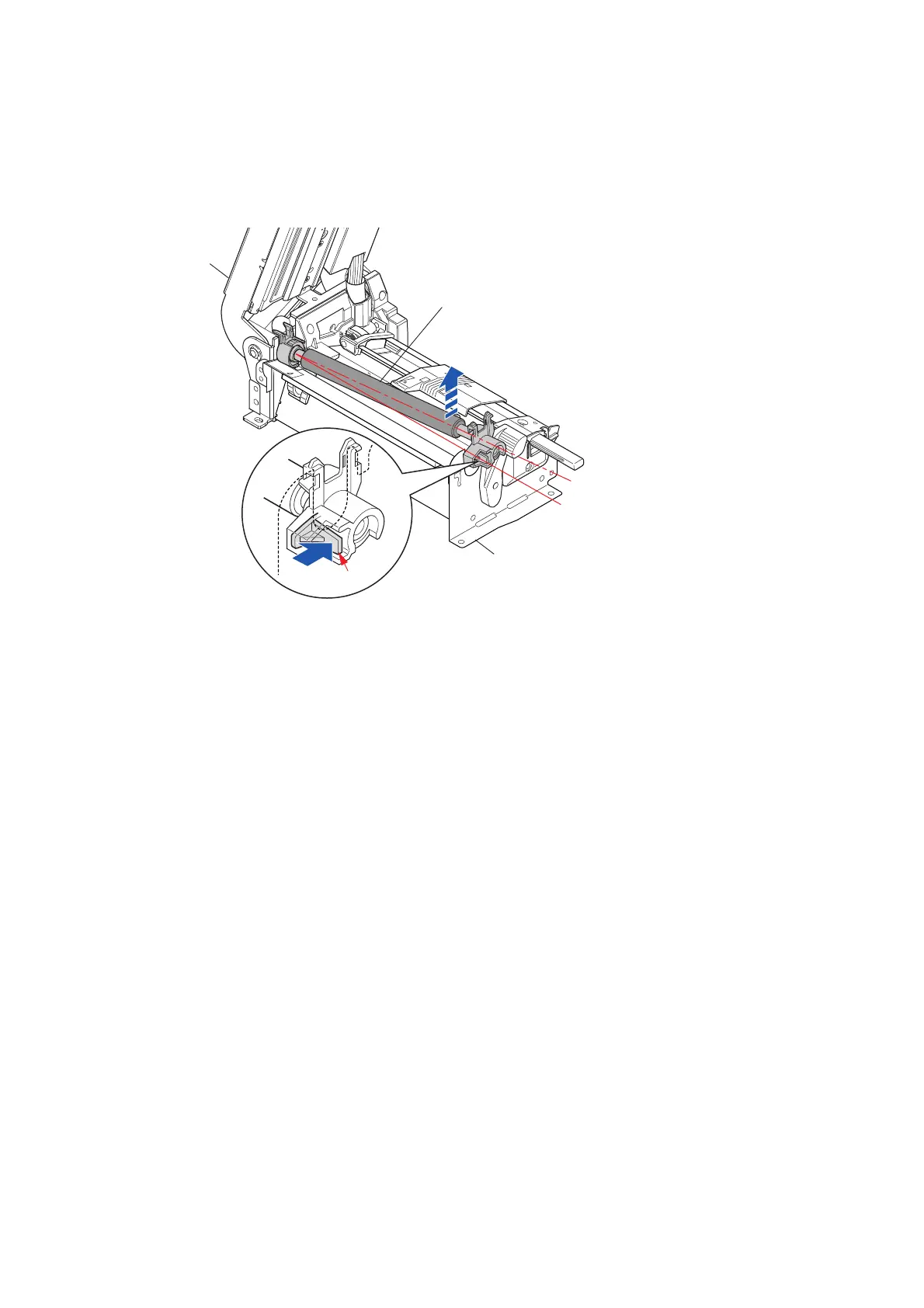

1. Open the Head Block.
2. While pressing the part “A” of the “SA Platen”, raise its right end by about the indicated
degrees.
3. Remove the “SA Platen” by lifting it upwardly.
Head Block
SA Platen
Unit Mechanism
A
