Citizen CL-E720DT - Page 98

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E720DT 3-24

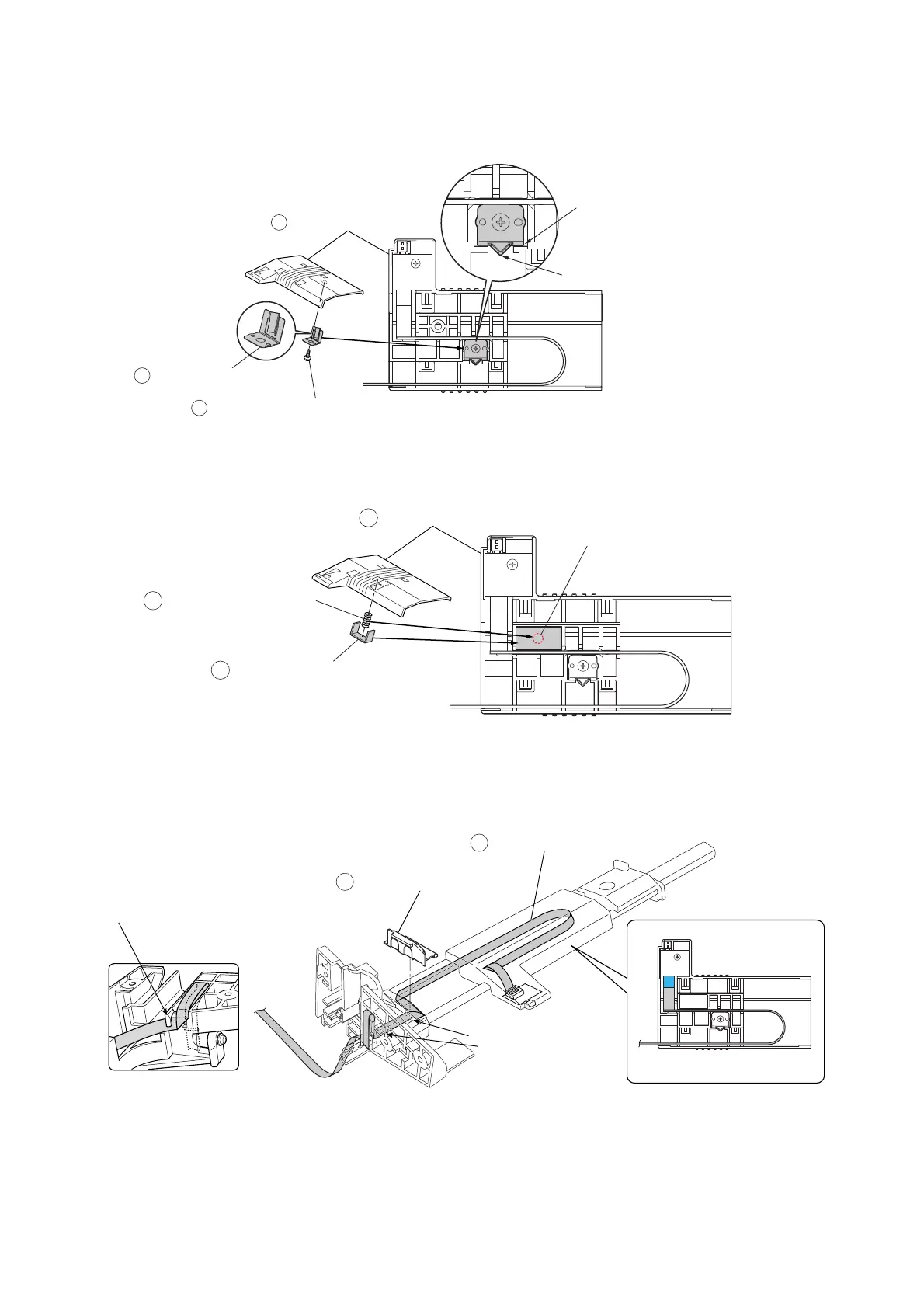

Notes on reassembling:
• Be sure that the projection “A” of the “Leaf Adjust Sensor U” () directs as shown below
and the “Leaf Adjust Sensor U” () is seated inside the lib.
• First, insert the spring “Spring Friction Sen U” () into the boss of the “Holder Sensor U”
(). Next, put the “Plate Friction Sen U” () on the spring and mount it in place.
• Run the “FFC TRA Sensor” () as shown below. Pass it through the two slits (“A” and “B”)
and the hook part.
Leaf Adjust Sensor U
NO.0 TFH (PT4-0.5) M2.0x4
13
14
Holder Sensor U
9
A
To be inside the libs.
(Projection)
[Bottom View]
Holder Sensor U
9
11
[Bottom View]
Spring Friction Sen U
Plate Friction Sen U
12
Boss
[Bottom View]
FFC TRA Sensor
Slit "A"
Cap Sensor Cable U
Slit "B"
Hook
[Bottom View]
6
10
