• Non‑maskable interrupt (NMI) button that is used at the request of Technical Support and pro‑
duces a core dump on the appliance. Use a pen, pencil, or other pointed object to press this red
button, which is recessed to prevent unintentional activation.
• Disable alarm button. This button is functional only when the appliance has two power sup‑
plies. Press this button to stop the power alarm from sounding when either of the following
conditions is true:
– You have plugged the appliance into only one power outlet.
– One power supply is malfunctioning, and you want to continue operating the appliance
until it is repaired.
• Dual power supplies, each rated at 650 watts, 110–220 volts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC T1120
August 19, 2020
The Citrix ADC T1120 appliance is a 2U appliance, with a dual‑core processor and 128 GB memory.

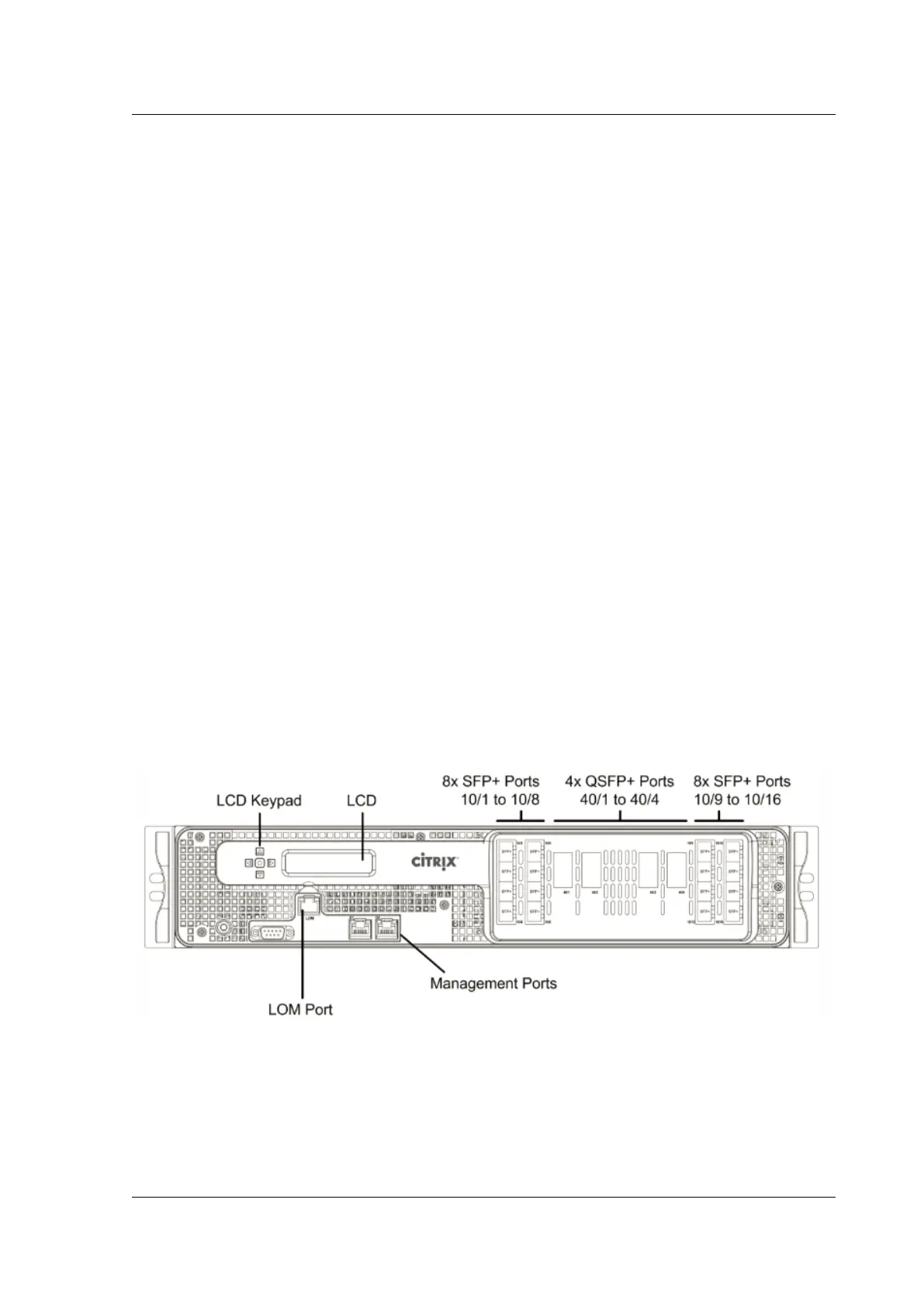

The following figure shows the front panel of the T1120 appliance.
Figure 1. Citrix ADC T1120 appliance front panel
The T1120 appliance has the following ports:
• Four 40G QSFP+ ports
• 16 10GBASE‑X SFP+ ports
• Two 10/100/1000BASE‑T, RJ45 ports
