Citrix ADC MPX
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 24100
September 19, 2022
The Citrix ADC MPX 24100/24150 are 2U appliances. Each model has two 8‑core processors and 256 GB
of memory. The MPX 24100/24150 appliances are available in the twelve 1G SFP ports and twenty‑four
10G SFP+ ports (12x1G SFP + 24x10G SFP+) configuration.

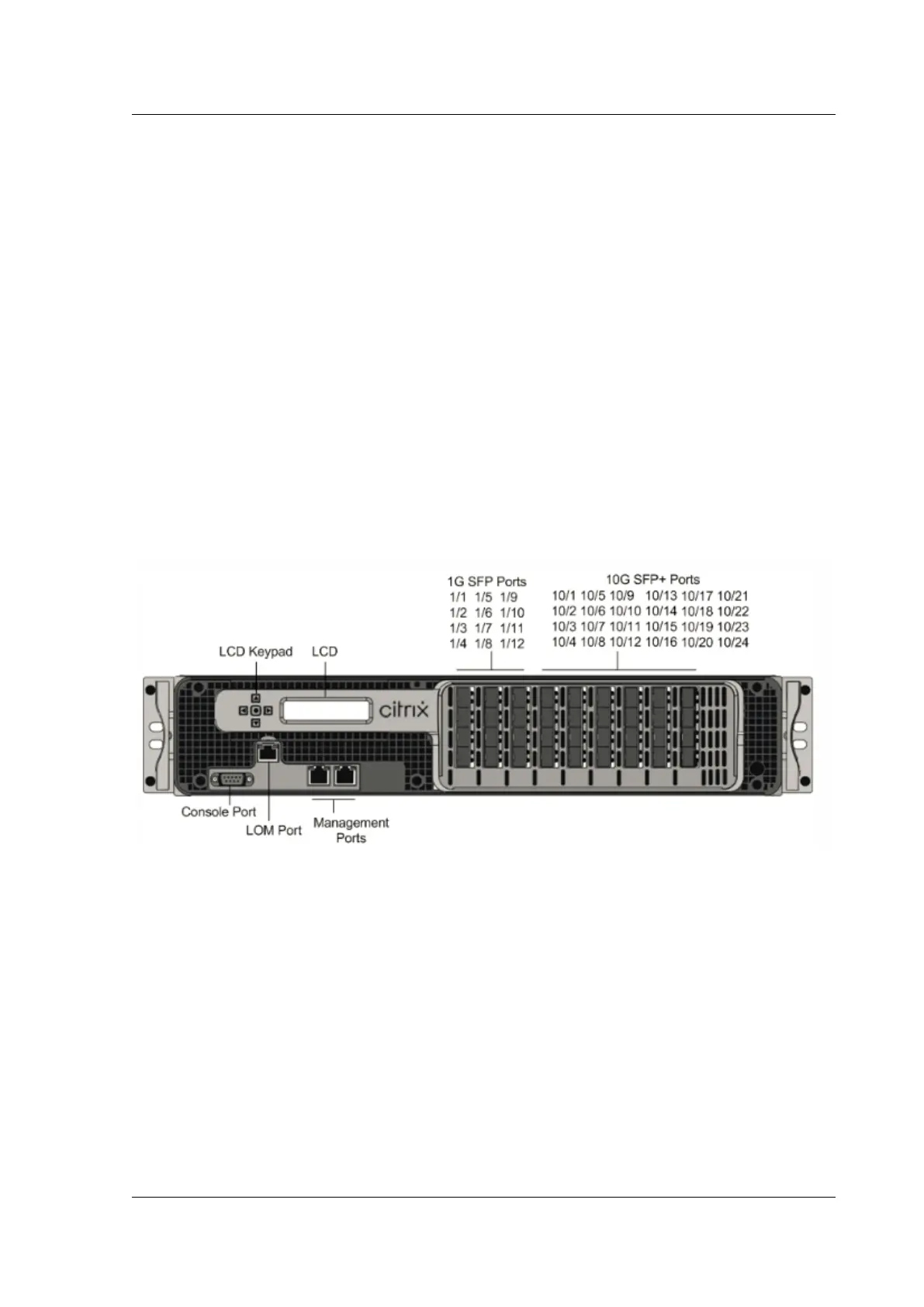

The following figure shows the front panel of the MPX 24100/24150 (12x1G SFP + 24x10G SFP+) appli‑
ance.
Figure 1. Citrix ADC MPX 24100/24150 (12x1G SFP + 24x10G SFP+), front panel
The Citrix ADC MPX 24xxx appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper EthernetManagement Ports(RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports. Twelve copper or fiber 1G SFP ports and twenty‑four 10G SFP+ ports.
The following figure shows the back panel of the MPX 24100/24150 appliances.
Figure 2. Citrix ADC MPX 24100/24150, back panel
