The Citrix ADC MPX 25100TA, MPX 25160TA, and MPX 25200TA are 2U appliances. Each model has two
8‑core processors, 128 GB of memory, 8X40GE (QSFP+) ports.
The front panel of the MPX 25100TA, MPX 25160TA, and MPX 25200TA have (8X40GE QSFP+) ports.

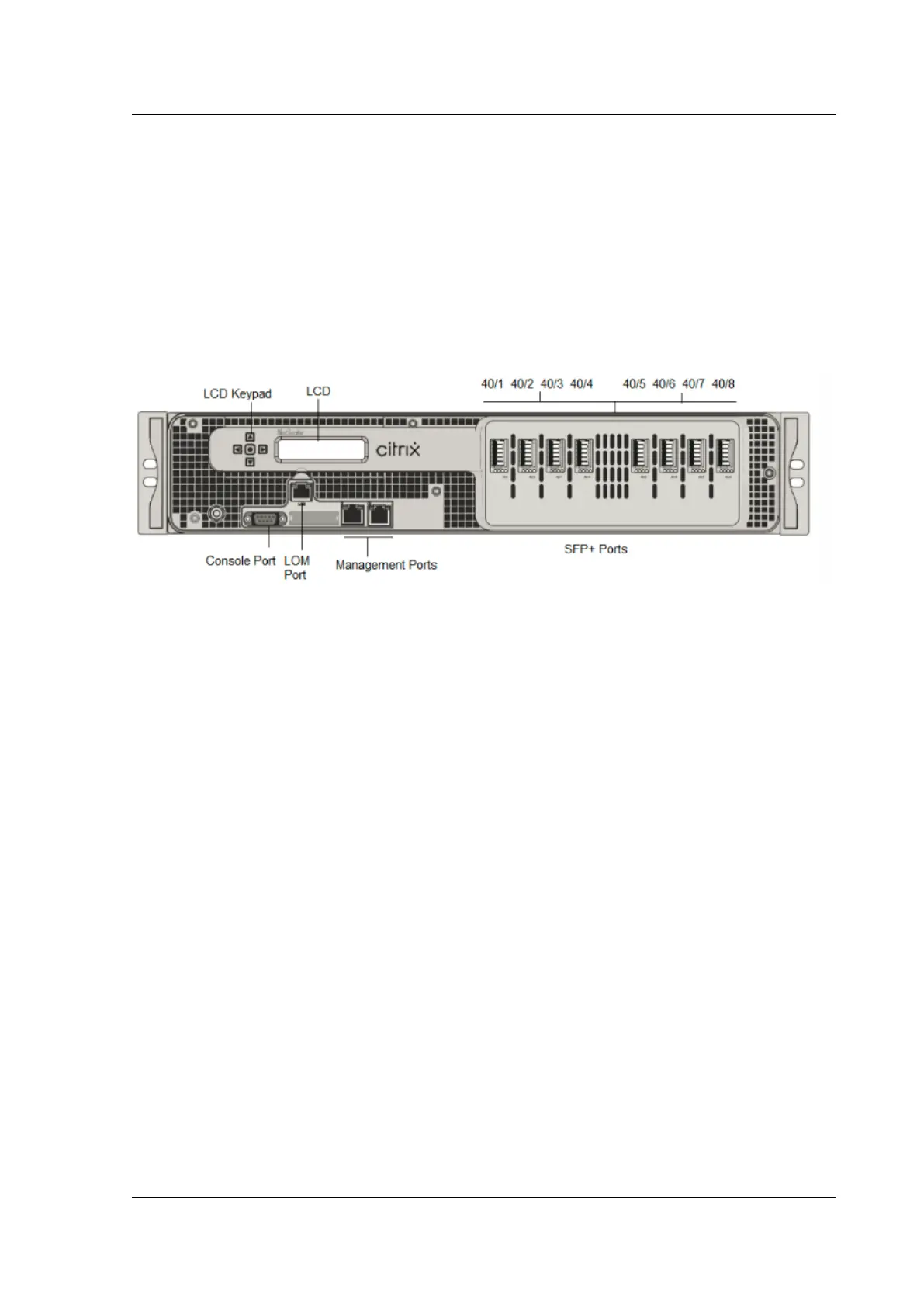

Figure 1. Citrix ADC MPX 25100TA, MPX 25160TA, and MPX 25200TA, front panel
The Citrix ADC MPX 25100TA, MPX 25160TA, and MPX 25200TA appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper EthernetManagement Ports(RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, 8 X 40GE QSFP+ ports. For information about supported transceivers per port,
see 25G, 40G, 50G, and 100G ports.
Note the following points regarding the network ports on MPX 25100TA appliances:
• 10G ports do not support 1G copper or 1G fiber transceivers.
• 40G ports do not support 10G and 1G transceivers.
Figure 2. Citrix ADC MPX 25100TA, MPX 25160TA, back panel.
