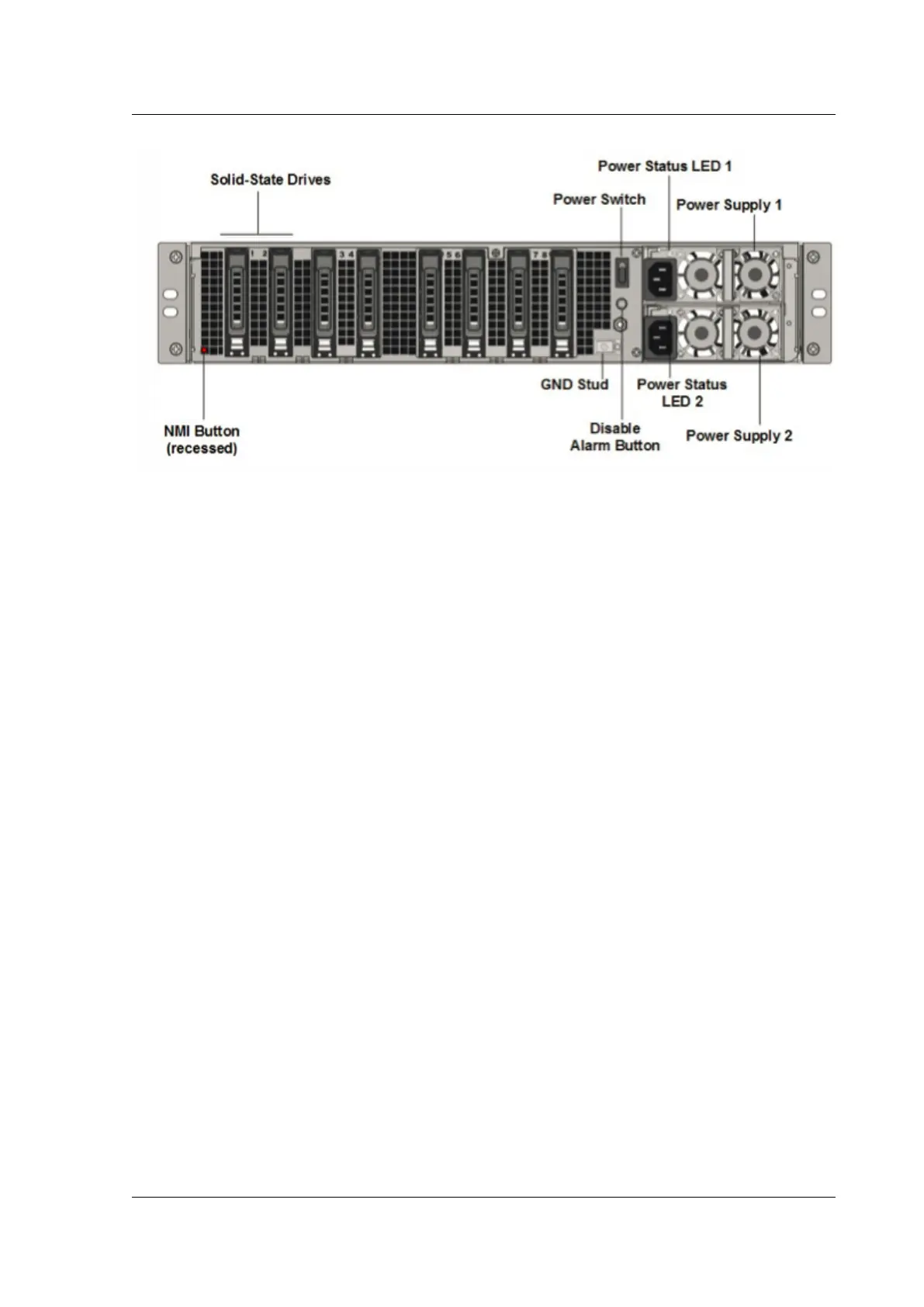

The following components are visible on the back panel of the MPX 25100T/25160T appliance:
• One 300 GB or larger removable solid‑state drive.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns power to the appliance on or o. Press the switch for less than two
seconds to shut o the power.
• Two power supplies, each rated at 1000 watts, 100–240 volts. Max power consumption is 717 W.
Typical power consumption is 594 W. Each power supply has an LED that indicates the status of
the power supply, as described in Common hardware components.
• Disable alarm button, which is functional only when the appliance has two power supplies.
Press this button to stopthe power alarm from sounding when either of the following conditions
is true:
– You have plugged the appliance into only one power outlet.
– One power supply is malfunctioning, and you want to continue operating the appliance
until it is repaired.
• Non‑maskable interrupt (NMI) Button, used at the request of Technical Support to initiate a core
dump. To press this red button, which is recessed to prevent unintentional activation, use a pen,
pencil, or other pointed object. The NMI Button is also available remotely over the network in
the LOM GUI, in the Remote Control menu. For more information about the lights out manage‑
ment port of the appliance, see Lights out management port of the Citrix ADC MPX appliance.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
