Citrix ADC MPX
the LOM GUI, in the Remote Control menu. For more information about the lights out manage‑
ment port of the appliance, see Lights out management port of the Citrix ADC MPX appliance.
Citrix ADC MPX 8900 FIPS certified appliance
September 19, 2022
The Citrix ADC MPX 8900 FIPS certified appliance is a 1U appliance. This platform has a single 8‑core
processor and 32 GB of memory.
Note: On all sides of the appliance, you see FIPS tamper seals. Tampering with the seals breaks the
FIPS requirement.
The appliance provides a total of 10 network ports:
• Six 10/100/1000Base‑T RJ45 copper Ethernet Ports.
• Four 10G/1G SFP+ Ethernet Ports.
For information on the soware releases supported on the Citrix ADC hardware platforms, see
Hardware‑Soware Release Matrix.
The following figure shows the front panel of the MPX 8900 FIPS certified appliance.

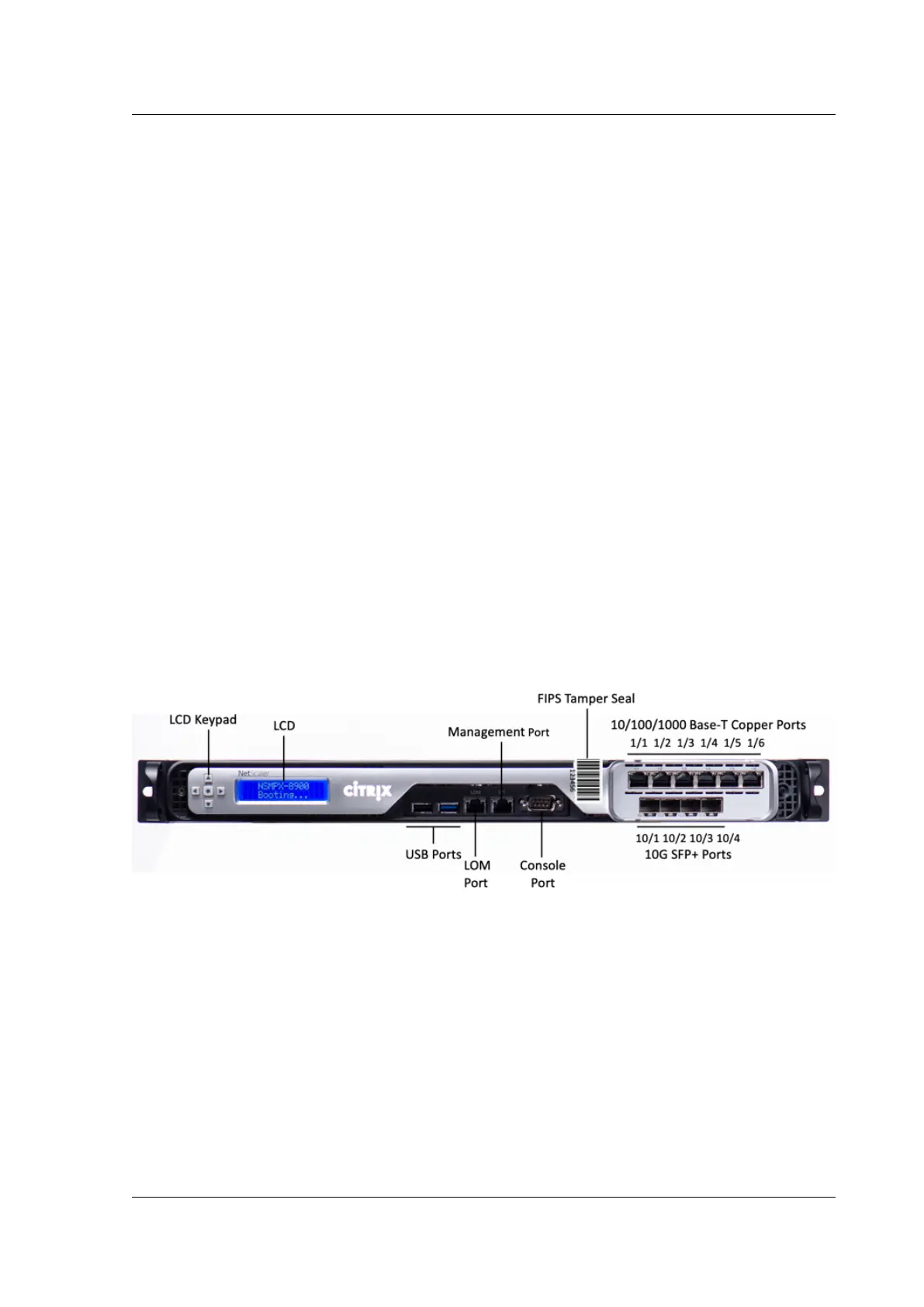

Figure 1. Citrix ADC MPX 8900 FIPS certified appliance, front panel
The Citrix ADC MPX 8900 FIPS certified appliance has the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base‑T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• One 10/100/1000Base‑T RJ45 copper Ethernet Management Port, numbered 0/1. This port is
used to connect directly to the appliance for Citrix ADC administration functions.
• Six 10/100/1000Base‑T RJ45 copper Ethernet Ports, numbered 1/1 to 1/6 from le to right.
• Four 10G/1G SFP+ Ethernet Ports, numbered 10/1 to 10/4 from le to right.
• USB port (reserved for a future release).
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 39
