Citrix ADC MPX
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
• Non‑maskable interrupt (NMI) button. This button is used at the request of Technical Support
to initiate a core dump. To press this red button, which is recessed to prevent unintentional
activation, use a pen, pencil, or other pointed object. The NMI Button is also available remotely
over the network in the LOM GUI, in the Remote Control menu. For more information about the
lights out management port of the appliance, see Lights out management port of the Citrix ADC
MPX appliance topic.
Citrix ADC MPX 14000‑40S
September 22, 2022
The Citrix ADC MPX 14040‑40S, MPX 14060‑40S, MPX 14080‑40S, MPX 14100‑40S are 2U appliances.
Each model has two 6‑core processors, 64 GB of memory, four 40G QSFP+ ports, and eight 10G SFP+
ports.
The following figure shows the front panel of the 14000‑40S appliance.

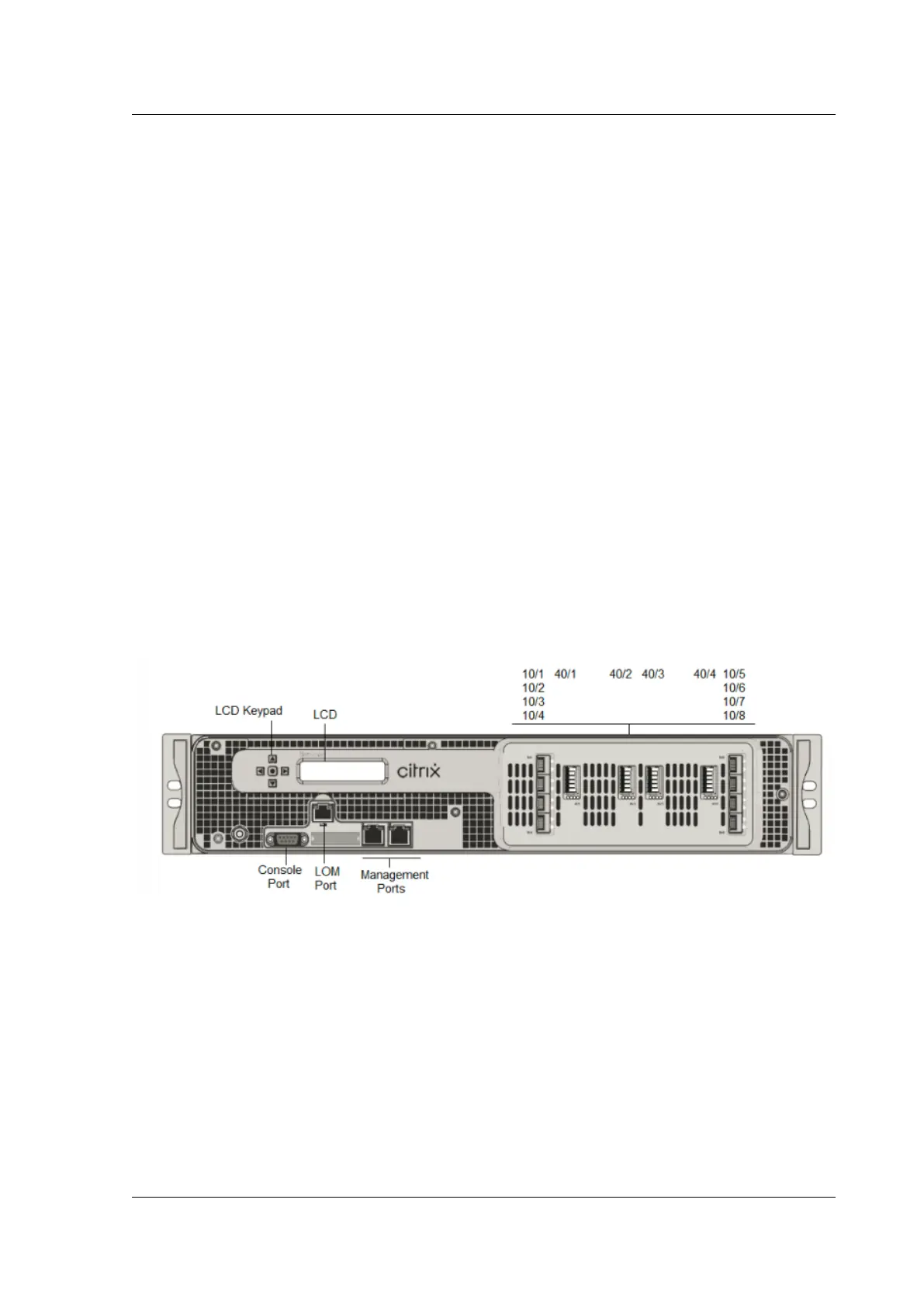

Figure 1. Citrix ADC MPX 14040/14060/14080/14100‑40S (4x40G QSFP+, 8x10G SFP+), front panel
The Citrix ADC MPX 14000‑40S appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper Ethernet management ports (RJ45), also called Management
ports, numbered 0/1 and 0/2 from le to right. These ports are used to connect directly to the
appliance for system administration functions.
• Network Ports, four 40G QSFP+, eight 10G SFP+ ports. For information about supported
transceivers per port, see 25G, 40G, 50G, and 100G ports.
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 57
