Citrix ADC MPX

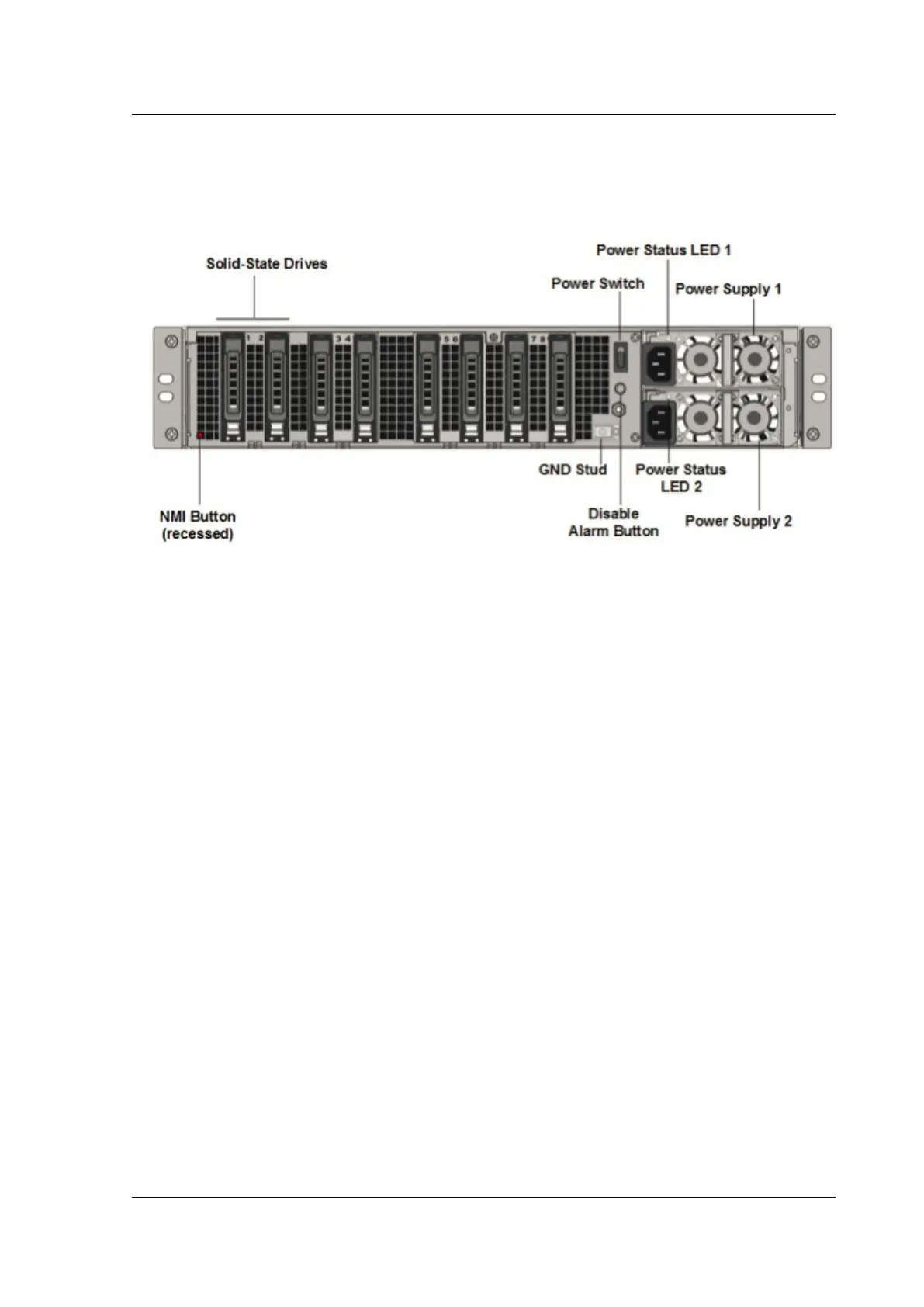

The following figure shows the back panel of the 14000‑40S appliance.
Figure 2. Citrix ADC MPX 14020/14040/14060/14080/14100‑40S (4x40G QSFP+, 8x10G SFP+), back
panel
The following components are visible on the back panel of the MPX 14000‑40S appliance:
• Two 300 GB or larger removable solid‑state drives in a redundant array of independent disks
(RAID) devices. In a RAID configuration, the same data is stored on multiple drives to improve
performance, increase storage capacity, lower the risk of data loss, and provide fault tolerance.
The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors the other
one.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns the power to the appliance on or o. Press the switch for less than
two seconds to shut o the power.
• Two power supplies, each power supply is rated at 1000 watts, 100–240 volts. Each power sup‑
ply has an LED that indicates the status of the power supply, as described in Common Hardware
Components.
• Disable alarm button. This button is functional only when the appliance has two power sup‑
plies. Press this button to stop the power alarm from sounding when one of the following con‑
ditions is true:
– You have plugged the appliance into only one power outlet.
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
• Non‑maskable interrupt (NMI) button that is used at the request of Technical Support to initiate
a core dump. To press this red button, which is recessed to prevent unintentional activation,
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 58
