state drive replaces the HDD. Both types of drive have the same functionality and support the
same soware releases.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• USB port (reserved for a future release).
• Non‑maskable interrupt (NMI) Button that is used at the request of Technical Support and pro‑
duces a core dump on the appliance. Use a pen, pencil, or other pointed object to press this red
button, which is recessed to prevent unintentional activation.
• Power supply rated at 300 watts, 110–220 volts. The power‑supply fan is designed to turn on
only when the internal temperature of the power supply reaches a certain value. You cannot
see the fan turning on the back panel. What you can see is the fixed part of the fan that holds
the spinning motor.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the hardware.
For information about performing the initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 5550 and MPX 5650
September 19, 2022
The the Citrix ADC models MPX 5550 and MPX 5650 are 1U appliances. Each model has 1 quad‑core
processor and 8 GB of memory.

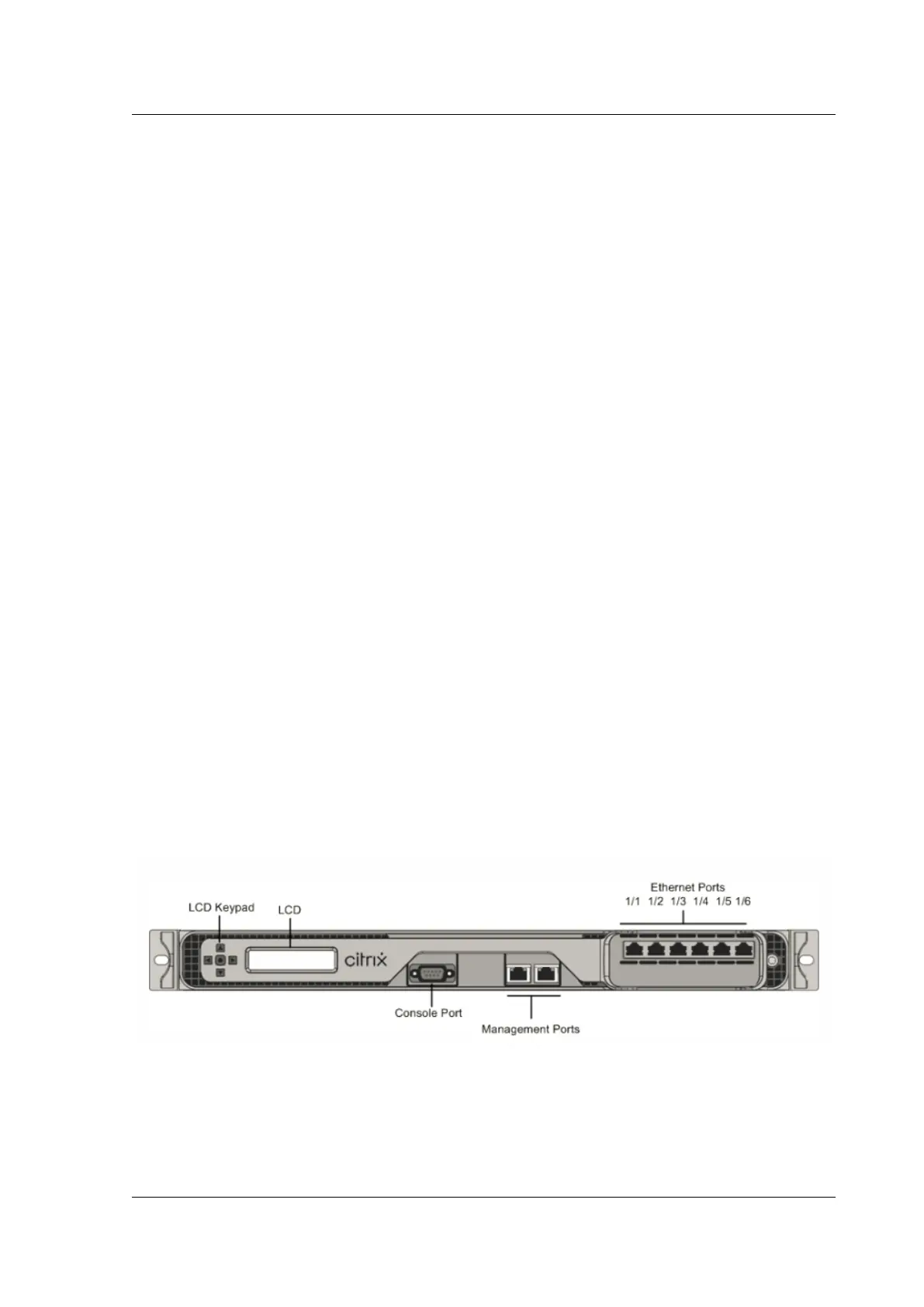

The following figure shows the front panel of the MPX 5550/5650 appliance.
Figure 1. Citrix ADC MPX 5550/5650, front panel
Depending on the model, the appliance has the following ports:
• RS232 serial console port.
