management port of the appliance, see Lights out management port of the Citrix ADC MPX ap‑
pliance.
Citrix ADC MPX 14000‑40G
September 19, 2022
The Citrix ADC MPX 14020‑40G, MPX 14040‑40G, MPX 14060‑40G, MPX 14080‑40G, MPX 14100‑40G are
2U appliances. Each model has two 6‑core processors, 64 GB of memory, four 40G QSFP+ ports, and
sixteen 10G SFP+ ports (4x40G QSFP+ + 16x10G SFP+).

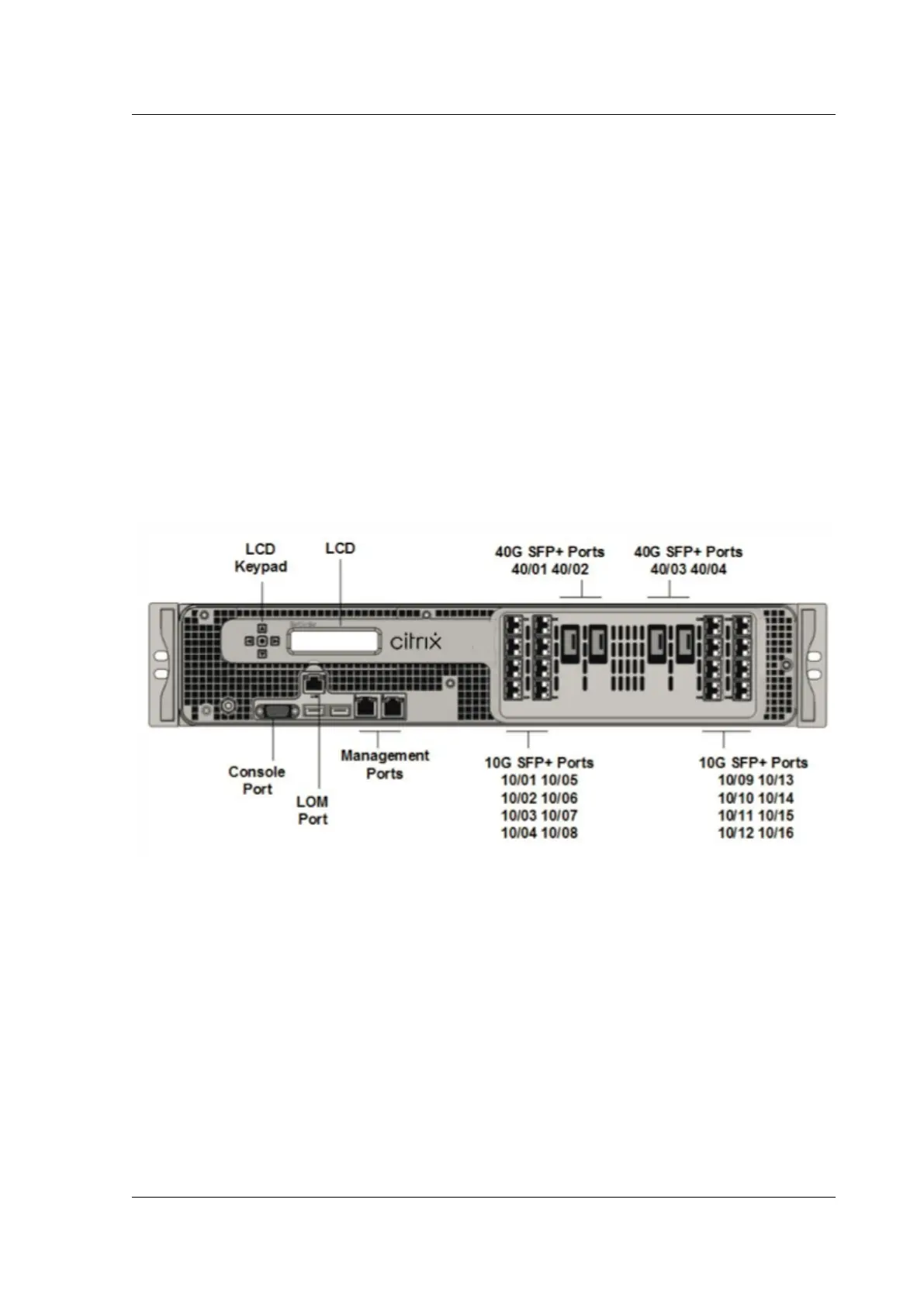

The following figure shows the front panel of the 14000‑40G appliance.
Figure 1. Citrix ADC MPX 14020/14040/14060/14080/14100‑40G (4x40G QSFP+, 16x10G SFP+), front
panel
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper EthernetManagement Ports(RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, sixteen 10G SFP+ ports (16x10G SFP+), four 40G QSFP+ ports (4x40G QSFP+). For
information about supported transceivers per port, see 25G, 40G, 50G, and 100G ports.
• USB port (reserved for a future release).
