Citrix ADC MPX
the LOM GUI, in the Remote Control menu. For more information about the lights out manage‑
ment port of the appliance, see Lights out management port of the Citrix ADC MPX appliance.
Citrix ADC MPX 25000‑40G
September 22, 2022
The Citrix ADC MPX 25000‑40G are 2U appliances. Each model has two 10‑core processors, 256 GB of
memory, four 40G QSFP+ ports, and sixteen 10G SFP+ ports (4x40G QSFP+ 16x10G SFP+).
The following figure shows the front panel of the MPX 25100/MPX 25160/25200 40G appliances.

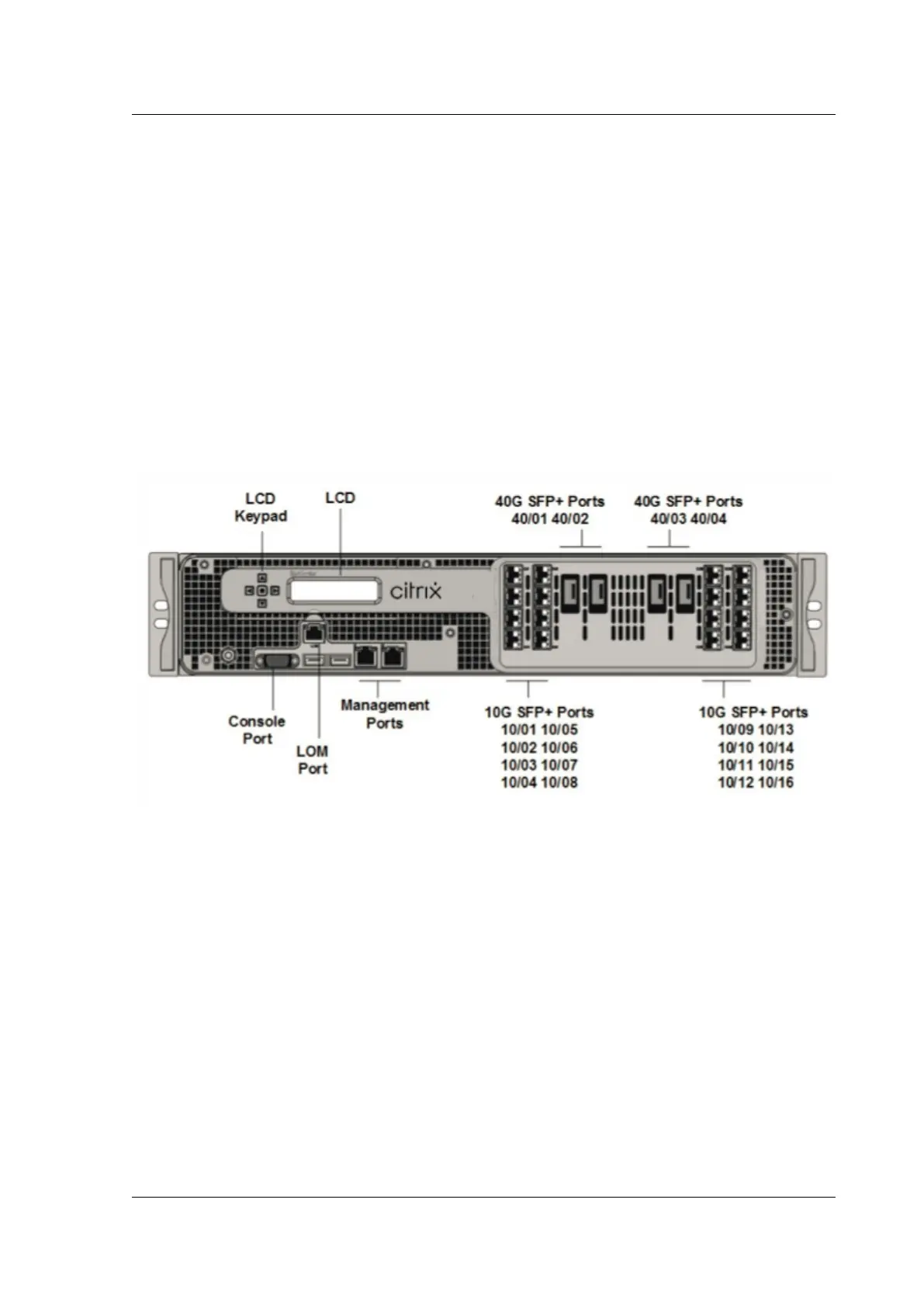

Figure 1. Citrix ADC MPX 25100 40G, MPX 25160 40G, MPX 25200 40G, front panel
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Network Ports. Four 40G QSFP+ ports and sixteen 10G SFP+ ports (4x40G QSFP+, 4x10G SFP+,
4X10G Base‑T). For information about supported transceivers per port, see 25G, 40G, 50G, and
100G ports.
• USB ports (reserved for a future release).
Note the following points regarding the network ports on MPX 25100 40G and MPX 25160 40G appli‑
ances:
• 10G ports do not support 1G copper or 1G fiber transceivers.
• 40G ports do not support 10G and 1G transceivers.
