Citrix ADC MPX
The T1310 appliance has the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper EthernetManagement Ports(RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports: eight 40G QSFP+ ports (8x40G QSFP+).
Note: 40G QSFP+ transceivers are sold separately. 40G ports do not support 10G and 1G
transceivers. Contact your Citrix sales representative to order transceivers for your appliance.

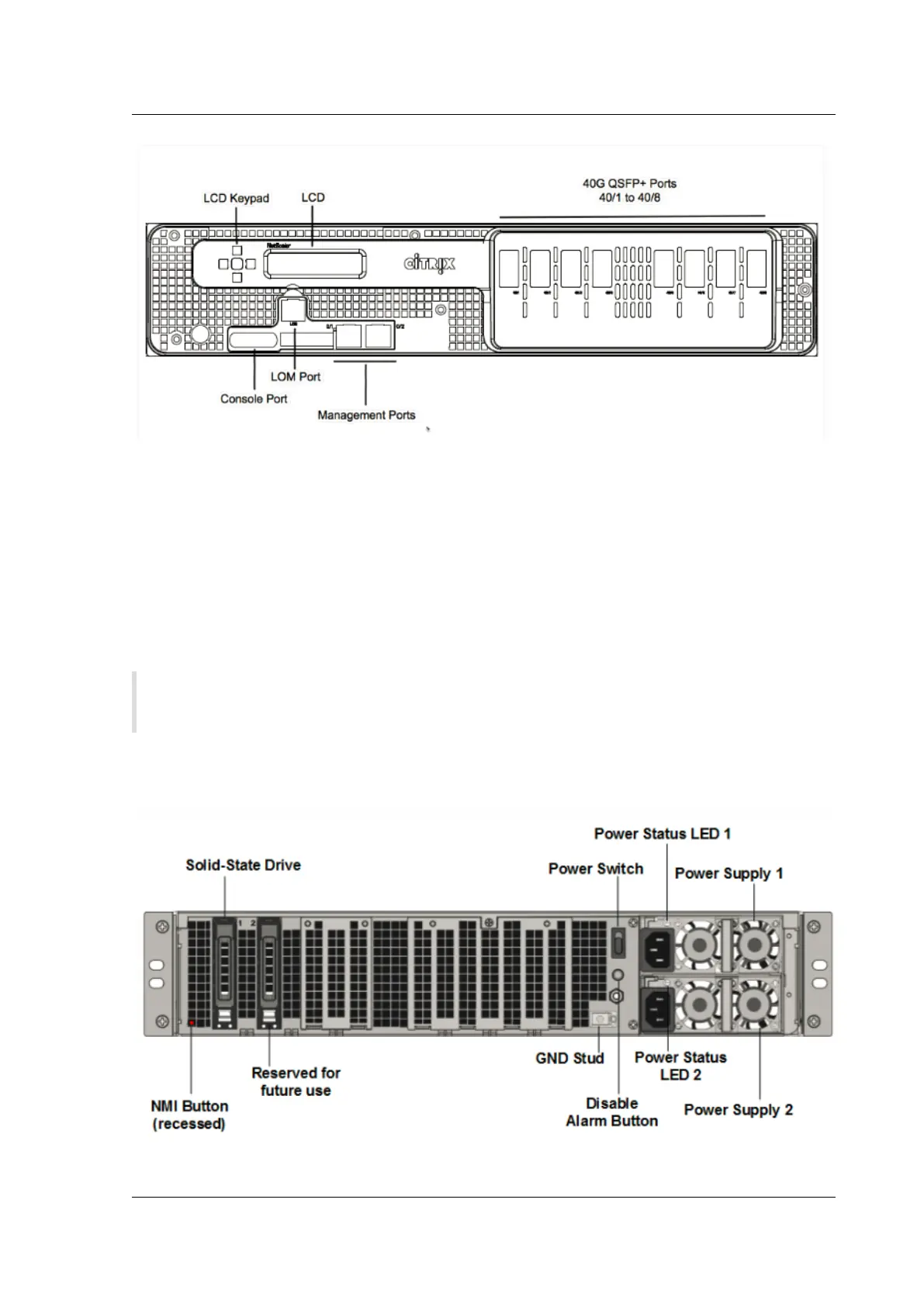

The following figure shows the back panel of the T1310 appliance.
Figure 2. Citrix ADC T1310 back panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 106
